- Διαθεσιμοτητα: Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: ICA-M3580P
- Βαρος: 1.48kg
- Διαστασεις: 9.50 x 26.80 x 8.80
Excellently Efficient Surveillance Video
PLANET ICA-M3580P PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 5 mega-pixel resolutions and multi streaming capabilities. Users will benefit from reduced 50% bandwidth and data storage through more efficient video compression.
Incorporating the Sony STARVIS back-illuminated CMOS sensor and Smart IR illuminators, which are specially designed for surveillance applications, the ICA-M3580P provides sharp images under all lighting conditions. With the 2.7~12.5mm motorized focus and 5x zoom, users can remotely adjust the focus and zoom from the web interface. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-M3580P, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

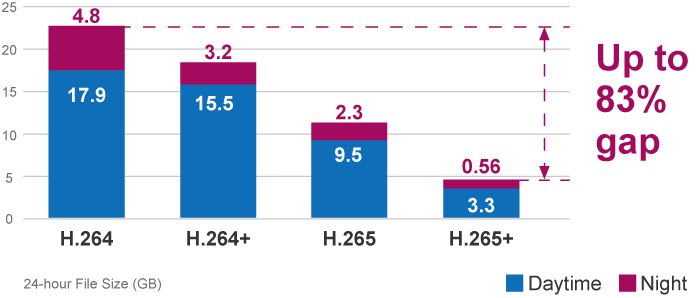

High Efficiency Video Compression
The ICA-M3580P employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 50% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.

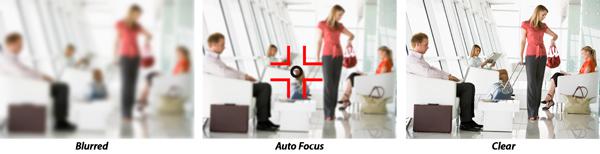

Smart Focus with Zoom Function
The ICA-M3580P is designed with the Smart Focus to make installation and adjustment easier by allowing remote focus and zoom adjustment. The 5x zoom function works by a stepping motor controlled via software to automatically provide the best iris position for the best exposure time in all lighting conditions.
Exceptional Image Quality

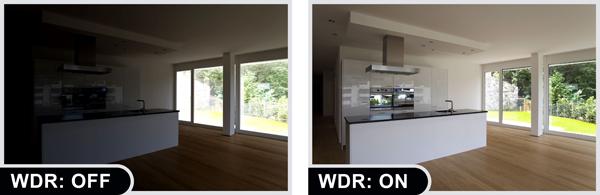

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-dimensional Noise Reduction (3DNR) technology, the ICA-M3580P is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Advanced Media Management
The ICA-M3580P supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include ROI (region of interest), motion detection, 3 configurable regions of privacy mask to protect personal privacy, video tampering, intrusion detection, line cross detection, loiter detection, people gather detection, and vehicle detection function. It also comes with image adjustment options, newly-added anti-overexposure protection function, three white balance modes, and five backlight compensation modes. The ICA-M3580P also supports SD card interface. You don’t need to connect to the NVR to set up the recording. The playback function can be realized by performing it directly.
With more user-friendly GUI interface that allows users to better monitor, the ICA-M3580P supports IPv6, QoS and IEEE 802.1X functions. Newly-added secure email for password reset and email encryption protocol now can support TLS.
Flexible Installation and Power Functionality
Powered from a PoE power sourcing equipment such as 802.3af/at PoE switch or 802.3af/at PoE injector over a network cable, the ICA-M3580P, adopting the IEEE 802.3af/at standard, does not need extra power cables and manpower, thus reducing installation costs while increasing deployment flexibility and scalability. The ICA-M3580P is ONVIF compliant and interoperable with other brands in the market, making it an indisputably ideal choice for reliable and high-performance surveillance.

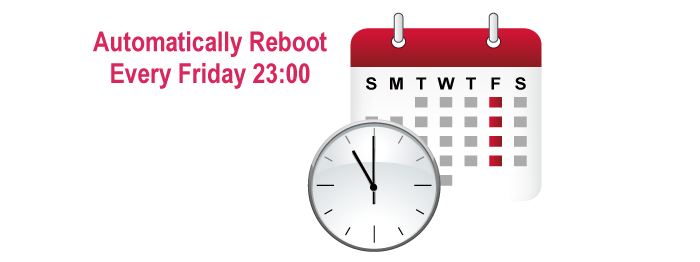

Scheduled Power Rebooting
The ICA-M3580P can be scheduled to reboot at a specified time like every minute, every hour, every week or every month to reduce the chance of crash resulting from buffer overflow.
Remote Access via Mobile App, Web Browser or PVMS
Remote management makes you easy to set the configuration and live viewing via Mobile App, NVR, HDVR, and Web browser. Besides, the ICA-M3580P provides central surveillance management capability with the adoption of its bundled PLANET Video Management Software. With the PVMS, the ICA-M3580P is expandable for multi-sites management of up to 256-ch IP cameras simultaneously. Users are able to monitor the IP cameras anytime, anywhere.

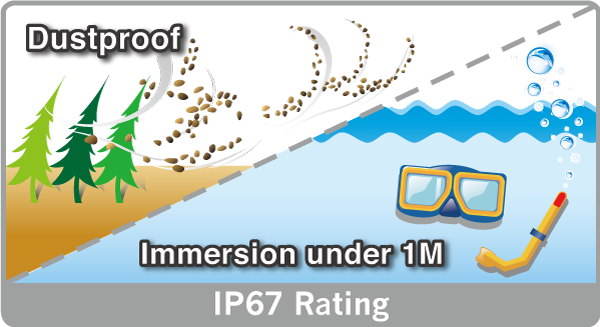

Water-resistant and Dust-proof Protection
The IP67-rated metal housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, such as buildings, roads, parking areas, garages, railway stations and airports.

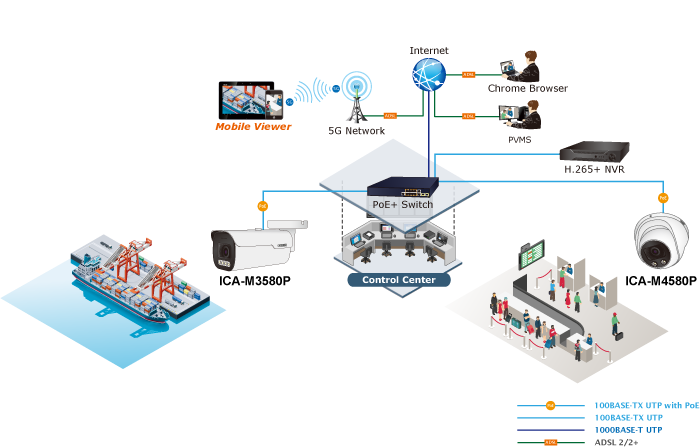

High Scalability for Various Industrial IP Surveillance Solutions
PLANET high-resolution ICA-M3580P can offer various surveillance applications as it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-M3580P supports 802.3af/at PoE PD interface, and facilitates the outdoor surveillance applications without worrying the electric source. Besides, Planet VMS, NVR, HDVR, Web UI and App management make you easy to do the configuration and live viewing. With powerful features offered, the ICA-M3580P no doubt is your best choice for outdoor surveillance solution.
Camera
- 1/2.8" 5 megapixel SONY STARVIS Back-illuminated CMOS sensor with Progressive Scan
- 2.7-12.5mm 5X motorized zoom auto focus lens
- Remote smart focus for remote and precise focus adjustment
- 0.06 lux minimum illumination at F1.6
- Built-in smart IR illuminators, effective up to 40 meters
- Switchable IR-cut filter for Day & Night function
Video and Audio
- Simultaneous H.264(+)/H.265(+)/JPEG/AVI multi-stream video encoding (H.264+/H.265+ expected to be launched by firmware upgradation)
- Simultaneous multi-stream support
- H.264 baseline profile, main profile or high profile options
- Max. resolution of 2592 x 1944 at 30fp
- Supports wide dynamic range(WDR), backlight compensation (BLC)
- 3DNR to improve picture quality at low lux
- Two-way audio support
- Image adjustment options
- AFFocus
- Image adjustment
- Exposure settings
- Day and Night Mode
- White Balance
- Video Adjustment
- Image Enhancement
- Backlight Settings
- OSD settings
- Smart Event Detection
- Motion Detection
- Video Tampering
- Intrusion Detection
- Line Cross Detection
- Loitering Detection
- People Gathering Detection
- Vehicle Detection
- Exception
- Sound Alarm
- 3 configurable regions of privacy mask to protect personal privacy
- RoI (Region of Interest)
Power over Ethernet
- Compatible with IEEE 802.3af/at Power over Ethernet PD for flexible deployment
Network Configuration and Management
- PPoE, IPv4 DHCP Client and IPv4 Static IP Address management
- Supports IPv6
- PLANET DDNS and Easy DDNS, TCP/IP, UDP, PPPoE, HTTPS, ICMP, FTP, SMTP, QoS, 802.1X, P2P, RTP, NTP, Cloud, RTSP, RTCP Encryption and IPEYE available options
- ONVIF compliant for interoperability
- SNTP Network Time Protocol/synchronize with computing time
- Schedule power rebooting
- System log
- User management options for various authorities:
- Admin
- Operator
- Guest
- System maintenance
- Firmware upload/download via HTTP
- Configuration upload/download through web interface
- Hardware-based reset button for resetting to factory default
- Easy configuration and management via Windows-based software or web interface
- PLANET Search Tools utility and Professional Video/Central Management Software
- NDAA Compliant
Case and Installation
- IP67-rated metal housing with cable management bracket for rigorous environment
- Waterproof and dustproof designs
- -20 to 60 degrees C operating temperature
- Plug and Play installation
Camera | |||||||||
---|---|---|---|---|---|---|---|---|---|
Image Sensor | 1/2.8" 5 megapixel SONY STARVIS Back-illuminated Progressive Scan CMOS sensor | ||||||||
Lens | Focus Length: 2.7-12.5mm Focus Control: Auto Lens Type: Auto Angle of view: Horizontal: 29~103 degrees Vertical: 16~54 degrees | ||||||||
Min. Illumination | 0.006 lux (color) @ F1.6 0lux (B/W) @ IR on | ||||||||
IR Illuminations | Built-in smart IR illuminators, effective up to 40 meters *The IR distance is based on the environment | ||||||||
Effective Pixels (H x V) | 2616 x 1964 | ||||||||
Image | |||||||||
Video Compression | H.264(+)/H.265(+)/JPEG/AVI | ||||||||
Video Resolution |
| ||||||||
Frame Rate | Up to 25~30 fps for all resolutions | ||||||||
Bitrate | 32~16384kbps | ||||||||
Shutter Time | Auto: 1/30-1/100000Sec | ||||||||
Image Setting | AFFocus Image adjustment Exposure settings Day and Night Mode White Balance Video Adjustment Image Enhancement Backlight Settings OSD settings Privacy Mask ROI(Region of Interest) | ||||||||
Streaming | Streaming over UDP, TCP, HTTP, or HTTPS Controllable frame rate Constant and variable bit rate | ||||||||
Audio | |||||||||
Audio Input | External audio I/O | ||||||||
Audio Streaming | Two-way audio | ||||||||
Audio Compression | G.711A/G.711U/AAC | ||||||||
Networking & Configuration | |||||||||
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af/at Power over Ethernet | ||||||||
Protocol | TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, PLANET DDNS, Easy DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, QoS, 802.1X, P2P, IPEYE, Cloud | ||||||||
Security | User Management options for various authorities Admin Operator Guest | ||||||||
Users | On-line monitoring of 16 clients at the same time | ||||||||
Web Brower | Microsoft IE8-11, Edge, Google Chrome, Firefox , Mac Safari(partial) | ||||||||
App | Yes (Android, IOS with P2P QR code) | ||||||||
Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands,Czech, Vietnamese | ||||||||
System Integration | |||||||||
Application Programming Interface | ONVIF compliant | ||||||||
Alarm Triggering | Motion Detection, Video Tampering, Intrusion Detection, Line Cross Detection, Loitering Detection, People Gathering Detection, Vehicle Detection, Exception | ||||||||
Alarm Events | SMTP, FTP, Cloud (Google) | ||||||||
Hardware Specifications | |||||||||
Power Requirements | 12V DC, 0.95A IEEE 802.3af/at Power over Ethernet | ||||||||
Power Consumption | 6.4W (IR on) | ||||||||
Dimensions (W x D x H) | 268 x 95 x 88 mm | ||||||||
Weight | 1.5kg | ||||||||
Reset Button | on the bottom of camera (next to SD slot) | ||||||||
SD Card Slot | Micro SD (1TB maximum) | ||||||||
LED | 42μ x 4pcs | ||||||||

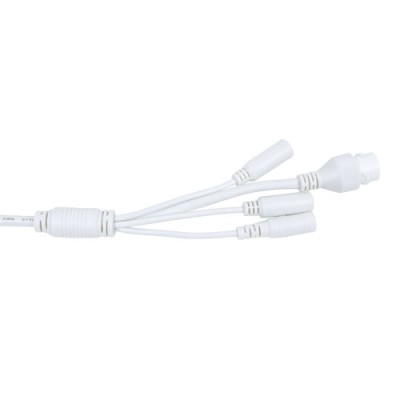

Connector | 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector DC power jack RCA audio in/out (white) | ||||||||
Enclosure | IP67 metal case | ||||||||
Power over Ethernet | |||||||||
PoE Standard | IEEE 802.3af/at PoE PD | ||||||||
Standards Conformance | |||||||||
Regulatory Compliance | FCC Part 15 Class B, CE | ||||||||
NDAA Compliance | Yes | ||||||||
Environment | |||||||||
Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) | ||||||||
Storage | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
