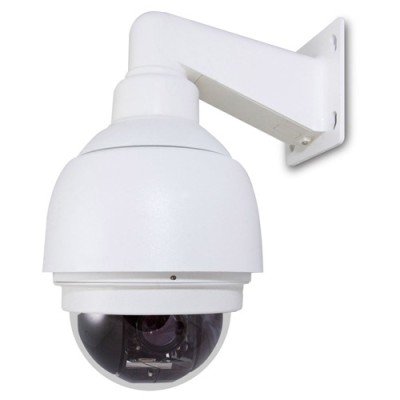

PLANET ICA-HM620-220 2 Mega-pixel PoE Plus Speed Dome Internet Camera. IP66 Outdoor (heater/fan), H.264/MJPEG

PLANET ICA-HM620-220 2 Mega-pixel PoE Plus Speed Dome Internet Camera. IP66 Outdoor (heater/fan), H.264/MJPEG
PLANET ICA-HM620-220 2 Mega-pixel PoE Plus Speed Dome Internet Camera. IP66 Outdoor (heater/fan), H.264/MJPEG
PLANET ICA-HM620-220 2 Mega-pixel PoE Plus Speed Dome Internet Camera. IP66 Outdoor (heater/fan), H.264/MJPEG
PLANET ICA-HM620-220 2 Mega-pixel PoE Plus Speed Dome Internet Camera. IP66 Outdoor (heater/fan), H.264/MJPEG
PLANET ICA-HM620-220 2 Mega-pixel PoE Plus Speed Dome Internet Camera. IP66 Outdoor (heater/fan), H.264/MJPEG
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ICA-HM620-220
  • Βαρος: 7.04kg
1.790,41€
Χωρίς ΦΠΑ: 1.443,88€

Enhanced Security from Wide Area Surveillance
PLANET ICA-HM620 802.3at PoE Plus Speed Dome Network Camera is designed for the most demanding video surveillance applications, with outstanding, full frame rate video in resolutions up to HDTV 1080p and with optical zoom up to 20x. It supports H.264 and M-JPEG compression formats to deliver excellent picture quality in 1080p/720p resolutions at 30/60 frames per second (fps). Incorporating the progressive scan CMOS sensor from Sony, which is specially designed for surveillance applications, the ICA-HM620 performs high quality images even when zooming in for surveillance of a large area. With quick and reliable installation features, the ICA-HM620 is ideal for shopping malls, warehouses, banks, railway stations, airports, parking lots, as well as city and perimeter surveillance.


Full Surveillance during Day & Night
The ICA-HM620 features an automatic, removable infrared-cut filter, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The camera is able to maintain clear images 24 hours a day.


Exceptional Image Quality

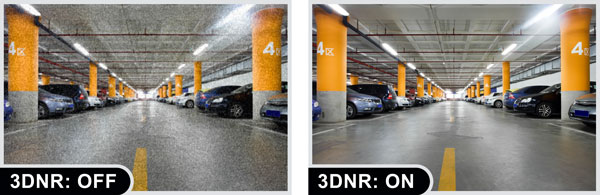

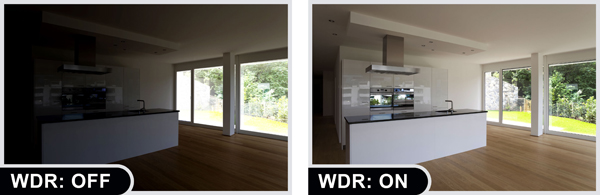

Together with powerful image processing attributes like Wide Dynamic Range and 3-dimensional Noise Reduction technology, the ICA-HM620 is able to filter the intense backlight surrounding a subject and remove noises from video signal. Thus, an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.




Advanced Surveillance Management
The ICA-HM620 supports a number of advanced features that increase monitoring flexibility and capabilities, including Auto-Iris for improving the image quality to avoid overexposure, two-way audio function, micro SD/SDHC card slot for local storage, and powerful high-speed precision pan/tilt/zoom capabilities. It also has IP66 compliant protective cover enabling an exceptional coverage of large areas and great details when zooming in.


Flexible Installation and Power Functionality
The ICA-HM620 applies IEEE 802.3at Power over Ethernet Plus to be powered through standard Ethernet RJ-45 cable from PoE sourcing equipment. Therefore, it increases the deployment flexibility, eliminates the need for power cables and reduces installation costs. The ICA-HM620 is ONVIF compliant and interoperable with other brands in the market. With 64-CH central management software included, the ICA-HM620 is indisputably the top choice for outdoor reliable and high performance surveillance.

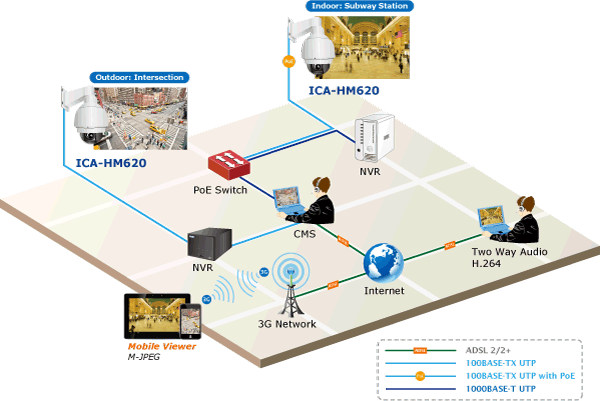

PLANET ICA-HM620 delivers 360 degrees panoramic clear images in various surveillance applications. It can provide the identification of objects and people, perfect for surveillance needs from all aspects. The ICA-HM620 is built with the IP66 compliant protective cover so it can be installed in most outdoor environments such as railway stations, warehouses, airports, construction sites, public areas and more. When functioning with PLANET CV3P or CMS (CV3-M256 / CV3-M1024) plus the 3-axis joystick (CV3-JS100), the administrator can manage the ICA-HM620 to perform pan and tilt, zoom-in and zoom-out functions from control center or remote site easily and freely.

Camera

  • 1/2.8" Sony Progressive Scan CMOS sensor
  • 4.7~84.6mm vari-focal, auto-iris lens
  • 0.04 lux minimum illumination at F1.6
  • Maximum resolution 1920 x 1080
  • 20 x 8 zooming (20X optical, 8X digital) adjustment
  • 360 degrees continuous pan and tilt (-10 ~ 190 degrees)
  • Preset speed at 5~400 degrees/sec, and manual speed 0.5 ~ 90 degrees/sec
  • Auto White Balance and Auto Electronic Shutter Time (1/30 ~ 1/10k sec)
  • Automatic gain control (AGC) for image-intensified
  • Removable IR-cut Filter for Day & Night function


Video / Audio

  • H.264 and M-JPEG video compression simultaneously
  • Simultaneous multi-stream support
  • Max. resolution 1080p at 30 fps, 720p at 60fps
  • 3DNR to improve picture quality at low lux
  • WDR Enhancement to enhance visibility under extremely bright or dark environments
  • Two-way audio support with enhanced audio quality


Network and Configuration

  • Compliant with IEEE 802.3at PoE Plus interface for flexible deployment
  • Auto MDI/MDI-X supported
  • Supports both IPv6 and IPv4
  • RTSP / UPnP / HTTPS protocols selectable
  • DDNS and FTP uploading supports more alternatives in surveillance network


Easy Installation & Management

  • ONVIF compliant
  • Cam Viewer 3 central management software supported
  • Motion Detection feature can monitor any suspicious movement in a specified area
  • 256 presets, tour is based on presets, in which speed and park time of presets can be set
  • Cruise line: 8 group programmable lines, each cruise with 32 presets
  • Digital Input / Output for integration with sensors and alarms
  • IP66 outdoor protection with heater and fan for operation under rigorous environmental conditions
  • Fan and heater with fully automatic intelligent control
Camera
Image device1/2.8" Sony Progressive Scan CMOS Sensor
Lensf = 4.7~94mm, F1.6 Auto/Manual-iris/Focus
Mechanical IR-cut Filter
Angle of view (horizontal x vertical):
H: 5.2 ~ 55.2 degrees
V: 2.4 ~ 42.1 degrees
Min Illumination0.04 Lux (B/W)
0.3 Lux (color)
Effective Pixels1920 x 1080 pixels
Pan / Tilt / Zoom
Optical Zoom20x
Digital Zoom1~8x variable
Pan Degree0 ~ 360 degrees continuous panning
Tilt Degree-10 ~ 190 degrees
Manual Speed0.5 ~ 90 degrees/sec
Preset Point256
Preset Accuracy0.225 degrees
Preset Speed5~400 degrees/sec
Sequence8
Auto Pan4
Camera Cruise8
Privacy Mask16
Proportional Pan & TiltOn / Off (Pan and tilt speed proportional to zoom ratio)
Resume after Power lossYes
Zone Title16
Home FunctionPreset, Sequence, Auto Pan, Cruise
Auto FlipDigital / Mechanical / Off
Digital Slow ShutterOn / Off
Video CompressionH.264 / M-JPEG
Video Resolution1080p / 720p / VGA / D1
Frame Rate30/25 fps @ 1080p
60/50 fps @ 720p
Image SettingAuto Electronic Shutter: 1/30 ~ 1/10k sec
Auto White Balance: Auto / Indoor / Outdoor / ATW
AGC: Auto / Manual
3D Digital Noise reduction
WDR
Color, sharpness
Mirror / Flip
Privacy Masks
Text, time and date overlay
StreamingSimultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)
Audio
Audio StreamingTwo-way audio
Audio CompressionG.711 64kbps, G.726 32kbps, ADPCM, AAC
MicrophoneExternal microphone input
Audio OutputAdjustable audio output gain
Network and Configuration
StandardIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3at PoE Plus
ProtocolIPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba
SecurityPassword protection, IP address filtering, HTTPS encrypted data transmission, user access log
Users20 clients on-line monitoring at the same time
System Integration
Application Programming InterfaceOpen API for software integration
ONVIF Compliant
Alarm TriggersIntelligent video motion detection and external input
Alarm EventsFile upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alert output
Pre- and post-alarm buffering
General
Power Consumption65 W (with heater)
Power RequirementsAC 24V ± 10% (system & heater)
IEEE 802.3at (system)
Operating Temperature-45 ~ 55 degrees C (-49 ~ 131 degrees F)
Operating Humidity10 ~ 90% (non-condensing)
Weight (includes LENS)2.32 kg
Dimension (Φ x H)191.97 x 282.11 mm
Protection ClassIP66 outdoor classification, built-in fan and heater
EmissionCE, FCC

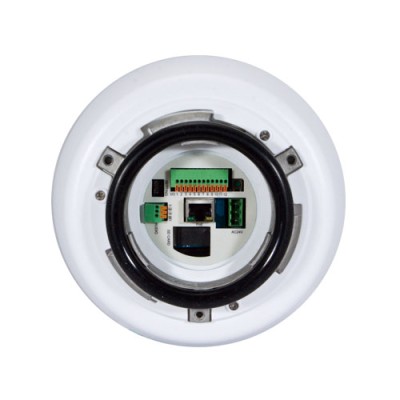

Connectors10/100Mbps Ethernet, RJ45
DC power jack
Terminal block for 4 alarm input and 2 output
External MIC input
Audio out
Micro SD/SDHC card (max. 32GB, Class 10)
Factory default reset



Datasheet

DateVersionDescriptionDownload
2012-12-211.0ICA-HM620



Firmware

DateVersionDescriptionDownload
2013-10-31pla20130805NSAFor ICA-HM620(v2) use only!
1.Add Stream authentication
2.OSD display for events
2012-09-19pla20120712NSA1. Fixed the web logo issue.
2. Fixed in TCP mode some time the screen will become gray.
2012-09-05pla20120525NSAInitial release



Quick Guide

DateVersionDescriptionDownload
2012-08-232.0Initial Release



User's Manual

DateVersionDescriptionDownload
2012-11-292.0Initial Release



Utility

DateVersionDescriptionDownload
2012-08-302.0.0.2Search Utility for ICA-H612 / ICA-H652 / ICA-HM620 Series



EC Declaration

DateVersionDescriptionDownload
2012-09-052.0Initial Release
