PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch

PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
PLANET IGSW-24040T Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo Managed Ethernet Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IGSW-24040T
  • Βαρος: 3.87kg
  • Διαστασεις: 20.00 x 44.00 x 4.45
1.033,49€
Χωρίς ΦΠΑ: 833,46€

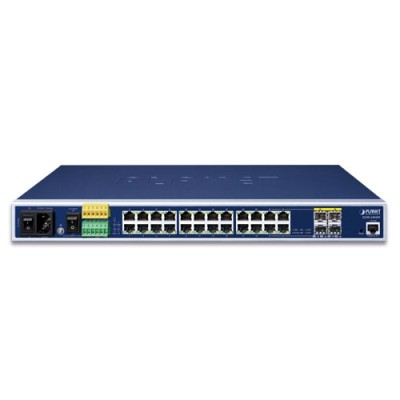

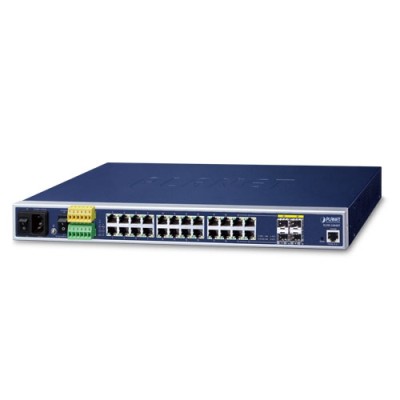

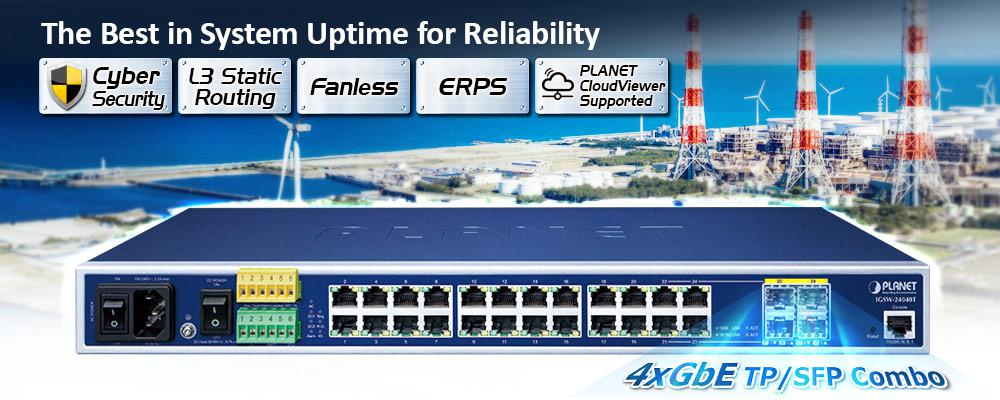

PLANET IGSW-24040T, an industrial Layer 2+ managed Gigabit Switch, features 24 10/100/1000Mbps ports and 4 shared SFP ports, and supports static Layer 3 routing in a 1U case. With a total switch fabric of 48Gbps, the IGSW-24040T can handle large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGSW-24040T is capable of providing non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “Front Access” design for easy wiring and maintenance of the IGSW-24040T when placed in the cabinet.





Cybersecurity Network Solution to Minimize Security Risks

The IGSW-24040T supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

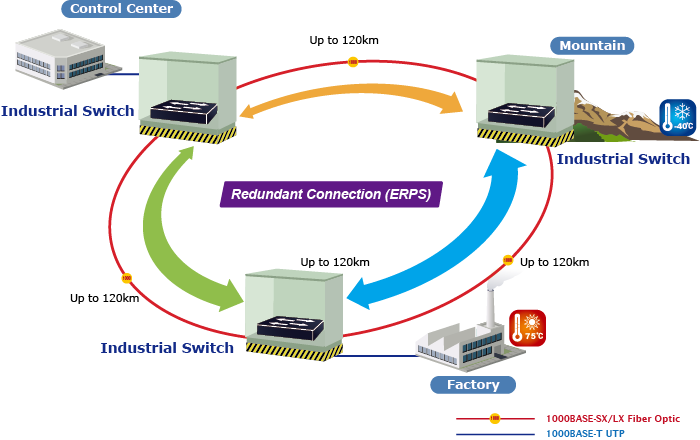

Redundant Ring, Fast Recovery for Critical Network Applications

The IGSW-24040T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.



AC and DC Redundant Power to Ensure Continuous Operation

The IGSW-24040T possesses a 100~240V AC power supply and dual 36~60V DC power supply utilized as redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the 36~60V DC power supply implemented, the IGSW-24040T can be applied as the telecom level device and placed in almost any difficult environment.

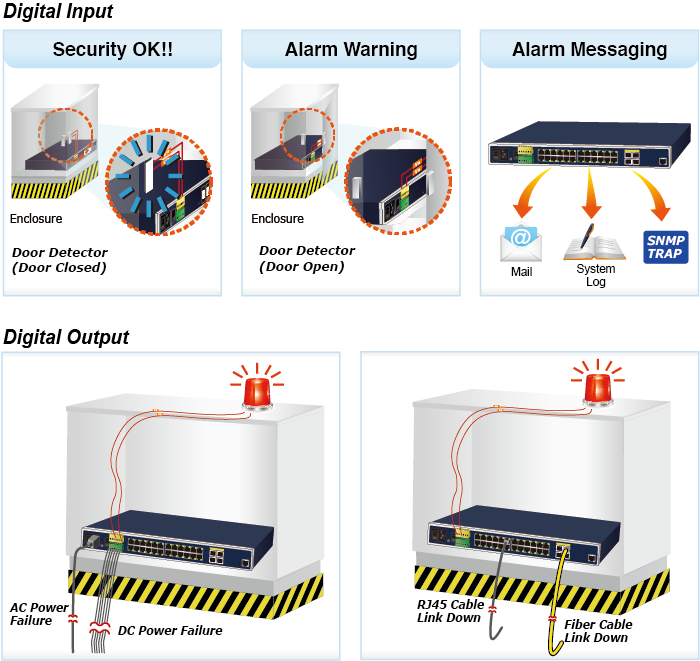

Digital Input and Digital Output for External Alarm

The IGSW-24040T helps the network administrators efficiently manage the unexpected network situations by providing Digital Input and Digital Output for external alarm device on the front panel. The Digital Input can be used to detect and log the status of the external devices such as door intrusion detector. The Digital Output could be used to send alarm whenever the IGSW-24040T has port link-down or power failure.

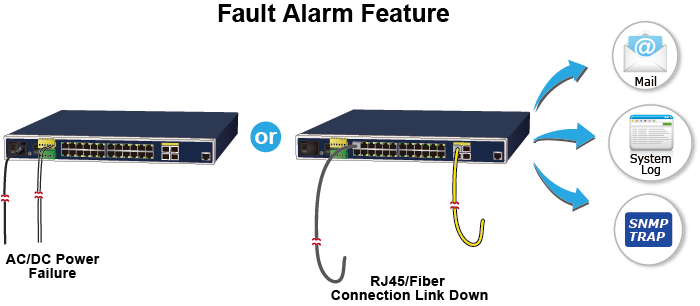

Effective Alarm Alert for Better Protection

The IGSW-24040T supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource.

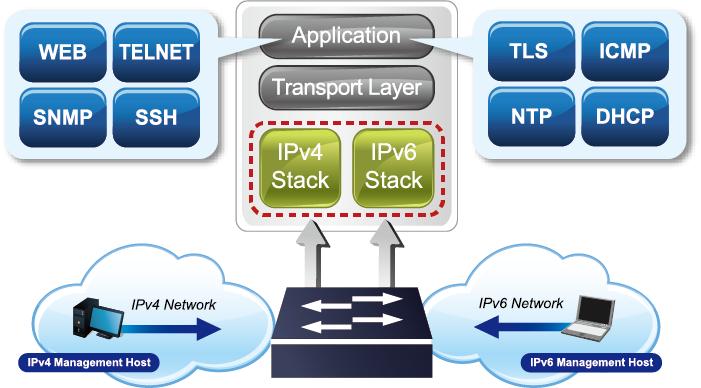

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the IGSW-24040T help the SMBs to step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.



Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The IGSW-24040T offers IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application.



Robust Layer 2 Features

The IGSW-24040T can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGSW-24040T allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Efficient Traffic Control

The IGSW-24040T is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. They guarantee the best performance for VoIP and video stream transmission, and empower the enterprises to take full advantage of the limited network resources.



Powerful Security

PLANET IGSW-24040T offer comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. They can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Their protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS and TACACS+ to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port



Friendly and Secure Management

For efficient management, the IGSW-24040T is equipped with web, Telnet and SNMP management interfaces.

  • With the built-in Web-based management interface, the IGSW-24040T offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, the switches can be accessed via Telnet and the console port.
  • By supporting the standard SNMP, the switches can be managed via any standard management software



Moreover, the IGSW-24040T offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.



Flexibility and Long-distance Extension Solution

The IGSW-24040T provide 4 built-in Gigabit SFP interfaces supporting 100BASE-FX/1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

The IGSW-24040T supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

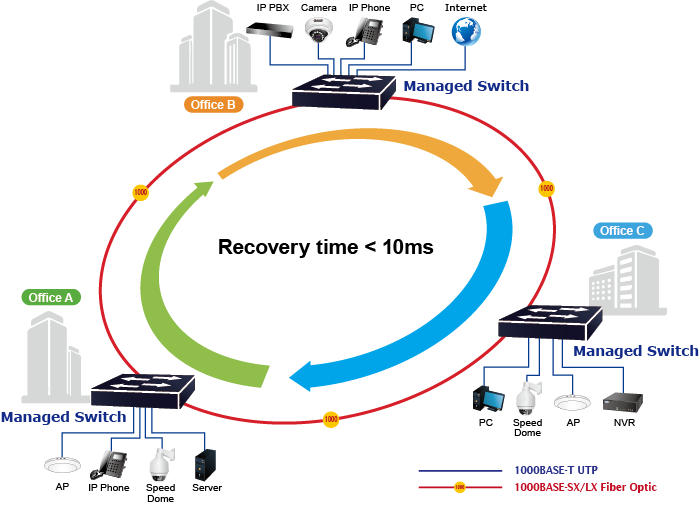

Redundant Ring, Fast Recovery for Critical Network Applications

The IGSW-24040T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain, simple Ring network, the recovery time of data link can be as fast as 20ms.

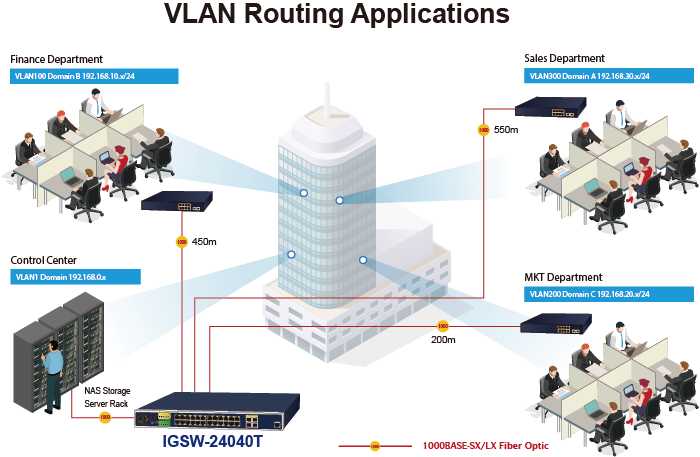

Layer 3 VLAN Routing Application

With the built-in, robust Layer 3 routing protocols, the IGSW-24040T ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 32 routing entries. The IGSW-24040T, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink.

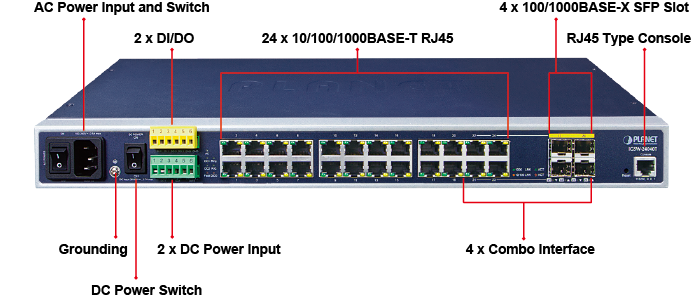

Physical Port

  • 24-port 10/100/1000BASE-T RJ45 copper
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup



Hardware Conformance

  • One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with reverse polarity protection
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • 19-inch rack-mountable design
  • IP30 metal case
  • Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature for DC power input
  • -10 to 60 degrees C operating temperature for AC power input



Digital Input & Digital Output

  • 2 Digital Input (DI)
  • 2 Digital Output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
    • Broadcast/Multicast/Unknown unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • IP subnet-based VLAN
    • Voice VLAN
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 12 trunk groups, with 8 ports for each trunk
    • Up to 16Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring monitors the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS.(Ethernet Ring Protection Switching)
  • IEEE 1588 and Synchronous Ethernet network timing, transparent clock mode



Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • ToS/DSCP/IP precedence of IPv4/IPv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • Supports IGMP snooping v1, v2 and v3
  • Supports MLD snooping v1 and v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based/MAC-based network access authentication
    • IEEE 802.1x authentication with guest VLAN
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List (ACL)
  • Source MAC/IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console/Telnet command line interface
    • Web switch management
    • SNMP v1 and v2c  switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • IPv6 address/NTP management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • DHCP relay and option 82
  • User privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    • ICMPv6/ICMPv4 remote ping
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface link up and link down notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS system and CloudViewer for deployment management
Hardware Specifications
Hardware Version4
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100BASE-FX SFP transceiver
Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
SDRAM128Mbytes
Flash Memory64Mbytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI/DO2 Digital Input (DI):
Level 0: -24~2.1V
Level 1: 2.1~24V
Max. input current: 10mA
2 Digital Output (DO): Open collector to 24VDC, 100mA
Dimensions (W x D x H)440 x 200 x 44.5 mm, 1U height
Weight2788g
Power ConsumptionMax. 19.7 watts/67.2 BTU
Power Requirements – ACAC 100~240V, 50/60Hz 0.5A
Power Requirements – DCDC 36~60V, 0.7A
EFT Protection6KV DC
ESD Protection6KV DC
LEDSystem:
AC (Green), DC1 (Green), DC2 (Green), Fault (Red)
Ring (Green), R.O. (Green), DI/DO (Red)
10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Orange)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric48Gbps/non-blocking
Throughput35.71Mpps@64Bytes
Address Table8K entries, automatic source address learning and aging
Shared Data Buffer4M bits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame9K bytes
Layer 2 Management Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
VLAN802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 4K VLAN groups, out of 4095 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
12 groups with 8 port per trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IGMP SnoopingIGMP (v1/v2/v3) snooping
IGMP querier mode support
Up to 255 multicast groups
MLD SnoopingMLD (v1/v2) snooping
MLD querier mode support
Up to 255 multicast groups
Bandwidth ControlPer port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
QoSTraffic classification based, strict priority and WRR
8-level priority for switching:
Port number
802.1p priority
802.1Q VLAN tag
DSCP/ToS field in IP packet
RingSupports ERPS, and complies with ITU-T G.8032
Supports Major ring and sub-ring
Recovery time < 10ms @ 3 units
Recovery time < 50ms @ 16 units
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Up to 256 entries
Port SecurityIEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC SecurityIP-MAC port binding
MAC filter
Static MAC address
Enhanced SecurityDHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Layer 3 Functions
IP InterfacesMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Management
Basic Management InterfacesConsole/Telnet/Web browser/SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
Event ManagementRemote/Local Syslog
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 1588v2
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
Environment
OperatingTemperature:
-10 ~ 60 degrees C for AC power input
-40 ~ 75 degrees C for DC power input
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2022-06-244.0IGSW-24040T



Quick Guide

DateVersionDescriptionDownload
2024-07-054.1[Release for hardware version 4.0.]
Added PSTI function.
2022-05-204.0Release for hardware version 4.0.



User's Manual

DateVersionDescriptionDownload
2022-11-214.0Release for hardware version 4.0.



EC Declaration

DateVersionDescriptionDownload
2023-03-104.0EC Declaration.
