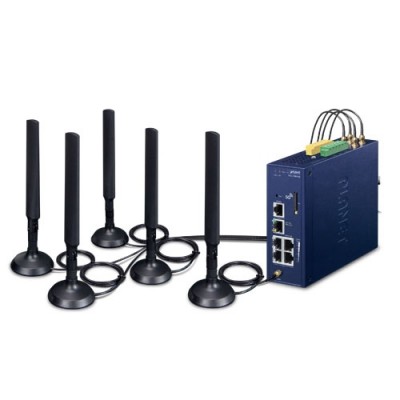

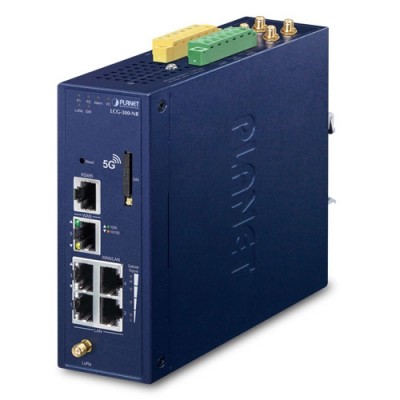

PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T

PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
PLANET LCG-300-NR-EU Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LCG-300-NR-EU
  • Βαρος: 1.77kg
  • Διαστασεις: 13.50 x 5.00 x 13.50
1.882,60€
Χωρίς ΦΠΑ: 1.518,23€

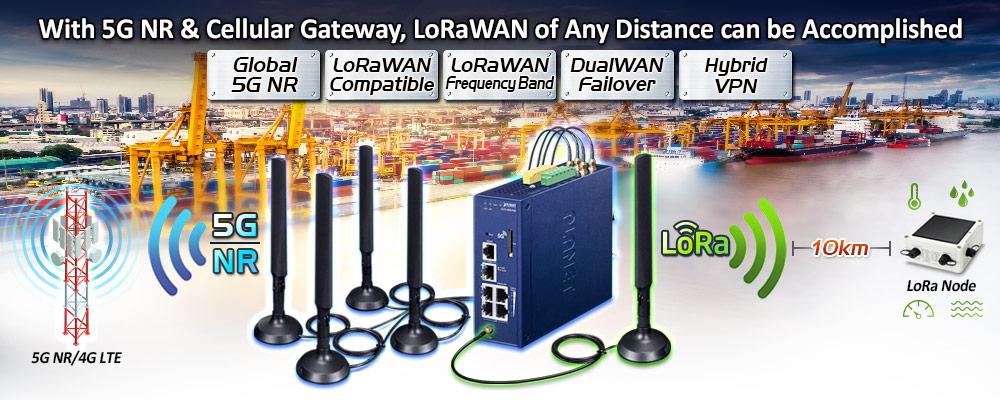

Connect to 5G NR and LoRa Network with Excellent LoRaWAN Cellular Gateway

PLANET LCG-300-NR is an industrial-grade 5G NR Cellular LoRaWAN Gateway with reliable connectivity for IoT deployments. It is able to provide ultra-fast broadband access with 5G cellular network.

The LCG-300-NR also features five Ethernet ports (4 LANs and 1 WAN), serial port (RS-485), and DI and DO interfaces designed in a compact yet rugged metal case. It establishes a fast 5G NR cellular connection between the Ethernet equipped devices. The LCG-300-NR is an integrated 5G NR and LoRaWAN solution for System Integrators, ISPs and Enterprises.

The LCG-300-NR LoRa wireless allows sensors to transmit data over extremely long ranges with low power consumption, and is  fully compatible with LoRaWAN protocol and supports connection with up to 300 end-nodes. It also provides pre-configured standard LoRaWAN frequency bands for different countries. PLANET LCG-300-NR is the best choice to help you to promote the implementation of AIoT network.

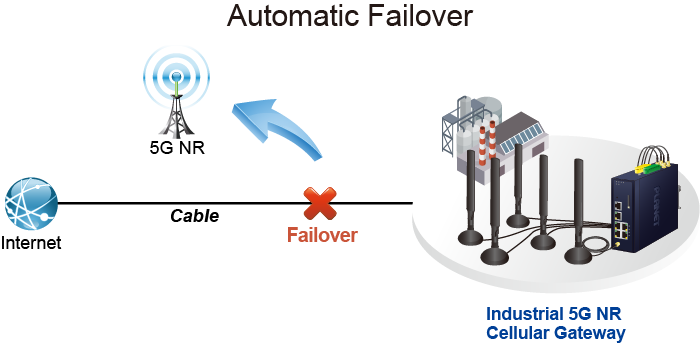

Automatic Failover between 5G NR and Dual WAN

With 5G NR, and dual Gigabyte Ethernet WAN interfaces, the LCG-300-NR ensures Internet connectivity by featuring failover functionality between 5G NR and dual WAN. It provides flexibility to set priority for 5G NR or dual WAN connection. When the main WAN interface fails, the secondary WAN interface will automatically back up the connection to ensure always-on connectivity.

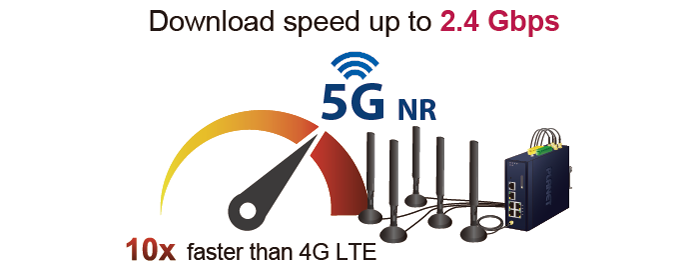

Ultra-Fast Speed 4G/5G Network*

The LCG-300-NR supports 5G NR DL ( downlink) speeds higher than 2.4 Gbps and 4G LTE DL speeds of up to 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. It also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

*The real 5G NR/4G LTE data rate is dependent on local service provider.

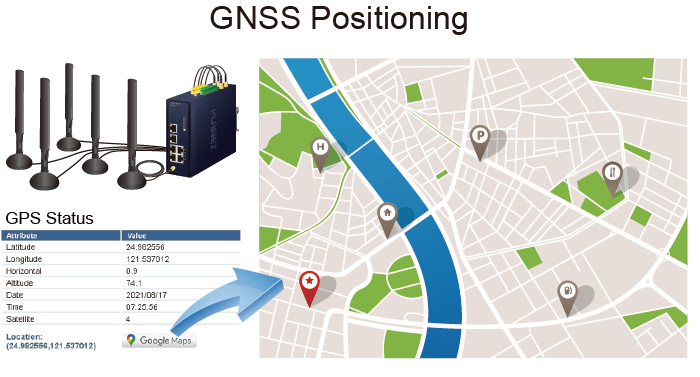

GPS Included

The LCG-300-NR is equipped with (global positioning system) feature. It adapts 5G-NR technology to incorporate multiple global navigation systems (GPS/GLONASS/BeiDou/Galileo/QZSS). It helps to position location of cellular gateway based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.

LoRaWAN Compatibility

The LCG-300-NR is LoRaWAN compatible and make sure it works well with LoRa sensor without any problem. LoRaWAN is a low-power, wide area networking protocol built on top of the LoRa radio modulation technique. LoRaWAN networks and devices such as sensor and gateway allow public or private network to connect multiple applications such as IoT, M2M, smart city, sensor network, and industrial automation applications in the same space.

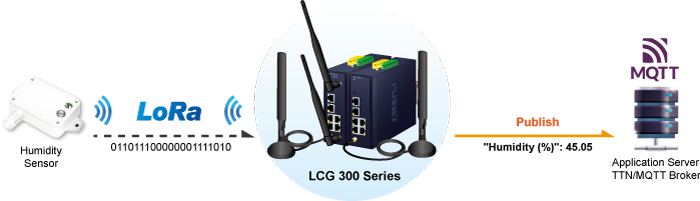

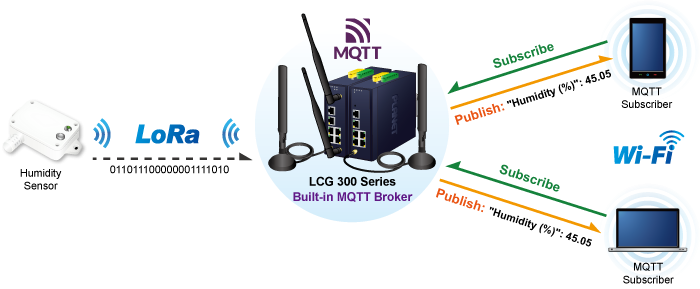

Enhance IoT Efficiency with LCG-300 Series

The LCG-300 series gateways support the expanding LoRa IoT ecosystem by converting sensor data into easily readable JSON format. This feature allows sensor data to be read without the need for external applications to parse the data, thus significantly simplifying the data integration process and reducing the time required to deploy IoT solutions.





Additionally, the built-in MQTT broker in the LCG-300 series facilitates data parsing and collection, enabling users to obtain data quickly and conveniently. This is possible both through the internal MQTT broker and an external MQTT broker. This functionality helps reduce the costs associated with building network servers and minimizes the complexity of the network architecture.

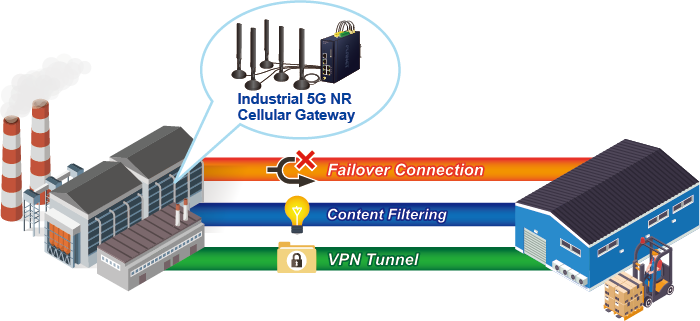

Ideal High-Availability VPN Security Router Solution for Industrial Environment

The LCG-300-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the LCG-300-NR makes the connection secure, more flexible, and more capable.

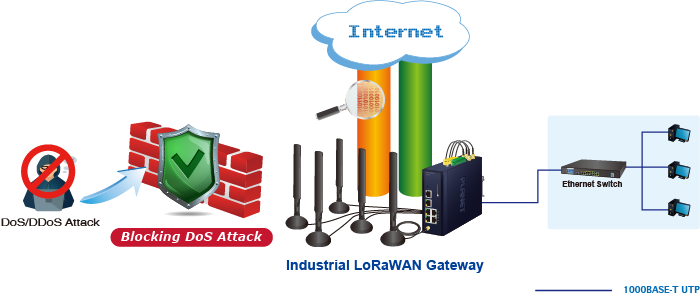

Excellent Ability in Threat Defense

The LCG-300-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the LCG-300-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the LCG-300-NR offers an easy-to-use, platform independent management and configuration facility. The LCG-300-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol.



Maximizing Work Efficiency with PLANET SD-WAN Gateway

PLANET LCG-300-NR incorporated in SD-WAN (software-defined wide area network) function can greatly increase WAN optimization for multiple WAN links to be managed. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs.

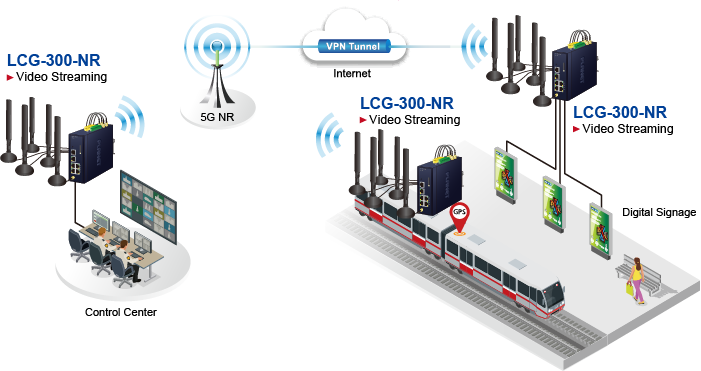

5G NR Cellular Communication Solution

PLANET LCG-300-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the LCG-300-NR provides failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications.

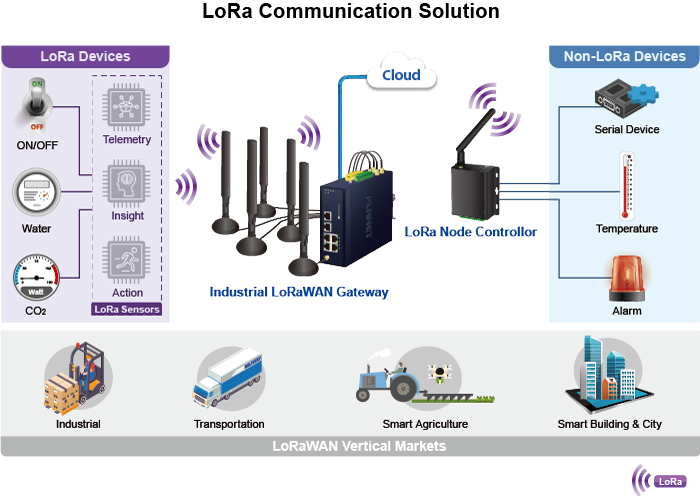

LoRa Communication Solution

PLANET LCG-300-NR LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300-NR can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly.





Highlights

  • Global 5G NR (NSA/SA)/4G LTE network with SIM design for cellular network redundancy
  • Automatic failover between 5G NR and Gigabit WAN
  • Supports EU868, US915, AS923 (Sub 1G)
  • 8 programmable parallel demodulation paths
  • 2 x DI/DO and 1 serial port (RS485) for Modbus applications
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful packet inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • Planet NMS controller system and CloudViewer app supported
  • -45 to 75 degrees C operating temperature; DIN-rail and fanless designs

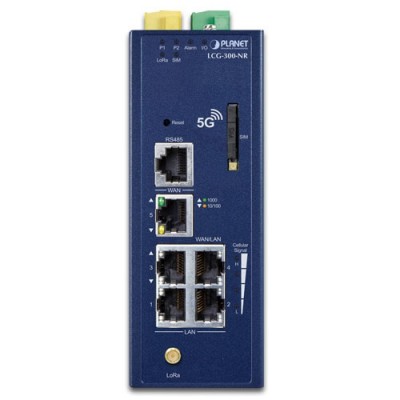

Hardware

  • 3 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • 1 x 10/100/1000BASE-T RJ45 LAN/WAN port, auto-negotiation, auto MDI/MDI-X
  • 4 x 5G NR antennas
  • 1 x SIM card slot
  • 1 x LoRa antenna
  • 1 x RJ45 type RS485 for Modbus TCP
  • 1 x reset button



Cellular Interface

  • Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
  • Built-in SIM and broadband backup for network redundancy
  • Four detachable antennas for 5G NR connection
  • LED indicators for signal strength and connection status



LoRa Interface

  • Supports EU868/AU915/US915/AS923(Sub 1G)
  • 8 programmable parallel demodulation paths



IP Routing Feature

  • Static route
  • Dynamic route
  • OSPF



Firewall Security

  • Cybersecurity
  • Stateful Packet Inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Content filtering
  • MAC filtering and IP filtering
  • NAT ALGs (Application Layer Gateway)
  • Blocks SYN/ICMP flooding



VPN Features

  • IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing
  • Failover for dual-WAN
  • Static IP/PPPoE/DHCP client for WAN
  • DHCP server/NTP client for LAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding; QoS; DMZ; IGMP; UPnP; SNMPv1,v2c, v3
  • MAC address clone
  • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • Supported access by HTTP or HTTPS
  • Auto reboot
  • PLANET NMS System and Smart Discovery Utility for deployment management
  • Planet CloudViewer app for real-time monitoring
Hardware Specifications
Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial InterfaceRJ45 type RS485 for Modbus TCP
Cellular Antenna5 dBi external antennas with SMA connectors for 5G-NR
SIM Interface1 SIM card slot with mini SIM card tray
LoRa Antenna2 dBi external antennas with SMA connectors for LoRa
DI & DO Interfaces2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

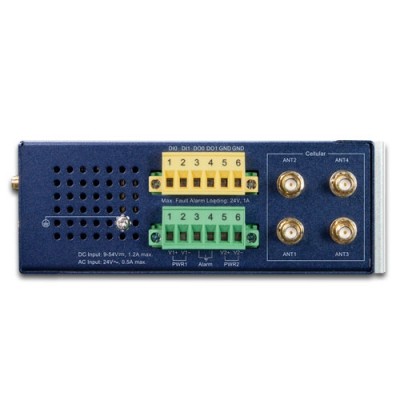

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
EnclosureIP30 metal case
InstallationDIN-rail, desktop, wall-mounting
LED IndicatorsSystem:
P1, P2, LoRa, SIM (Green)
Alarm, I/O (Red)

Interfaces (Ports 1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber

cellular signal
4 levels (Green)
Dimensions (W x D x H)50 x 135 x 135 mm
Weight924g
Power Requirements – DC9~54V DC, 1.5A Max.
Power ConsumptionMax. 3.9 watts/13.2 BTU (No Loading)
Max. 11.6 watts/39.5 BTU (Full loading)
LoRaWAN
Frequency BandLCG-300-NR-EU:863~870MHz (IN865/EU868/RU864)
LCG-300-NR-US: 902~928MHz (US915/AU915/KR920/AS923)
Receiving Sensitivity-142.5dBm
Output Power27dBm Max.
Multi Band Supports
5G SUB6 BANDSNSA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/ n66/n70/n71/n75/n76/n77/n78/n79
SA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE BANDSFDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B66/B71
TDD:B34/B38/B39/B40/B41/B42/B43/B48
LAA:B46
UMTS BANDSFDD :B1/B2/B8/B4/B5/B19
MAX DL SPEED: DL3.4Gbps; UL 550 Mbps
GNSS: GPS/ GLONASS/ BDS/ Galileo/ QZSS
TDD :MAX DL SPEED DL 2.4 Gbps; UL 900 Mbps
WCDMAB1/B2/B3/B4/B5/B8
GNSSGPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS
Data Transmission Throughput2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+
Security Service
Firewall SecurityCybersecurity
SSL (HTTPS) Inspection
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack
NATPort forwarding
DMZ Host
UPnP
Content FilteringMAC filtering
IP filtering
Web filtering
Bandwidth ManagementOutbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Networking
Operation ModeRouting mode
Routing ProtocolStatic Route, Dynamic Route (RIP), OSPF
VLAN802.1q Tag-based, Port-based, Multi-VLAN
MulticastIGMP Proxy
NAT ThroughputMax. 900Mbps
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Key FeaturesHA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control
Advanced Functions
VPN FunctionIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 108Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2022-12-091.0LCG-300-NR



Firmware

DateVersionDescriptionDownload
2024-06-241.2102b240618[FW-LCG-300-NR_US]
Function Added:
1. Added PSTI function.
2. Added Built-in MQTT Broker.
3. Improved LoRa Setting.
4. Fixed minor bugs.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.
2024-06-241.2102b240618[FW-LCG-300-NR_EU]
Function Added:
1. Added PSTI function.
2. Added Built-in MQTT Broker.
3. Improved LoRa Setting.
4. Fixed minor bugs.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.



Quick Guide

DateVersionDescriptionDownload
2024-06-191.2Added PSTI function.
2022-11-251.1Initial release.



User's Manual

DateVersionDescriptionDownload
2023-01-061.1Initial release.
