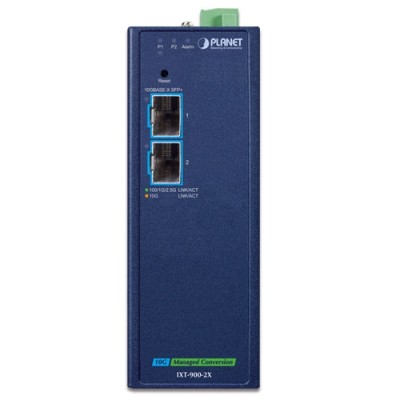

PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter

PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
PLANET IXT-900-2X Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IXT-900-2X
  • Βαρος: 0.85kg
  • Διαστασεις: 87.00 x 50.00 x 135.00
431,83€
Χωρίς ΦΠΑ: 348,25€

Environmentally-robust, ultra-fast Connections and Secure Management

PLANET’s Industrial IXT-900 high-performance media converter series is environmentally-robust now that it comes with an extended operating temperature ranging from -40 to 75 degrees Celsius designed for challenging environments. This series features standalone secure management, setting a new standard for enterprise and telecom remote management and monitoring. The IXT-900 Industrial Series allows for seamless remote management through an intuitive web interface, command line interface (CLI), and SNMP protocol, facilitating effortless monitoring and configuration from any location.

Our advanced media converter features two 10G SFP+ ports that combine the strength of 10G connectivity with the long-range transmission capabilities of fiber ports. This powerful yet compact solution makes it the ideal choice for businesses looking to boost their network speed and functionality.

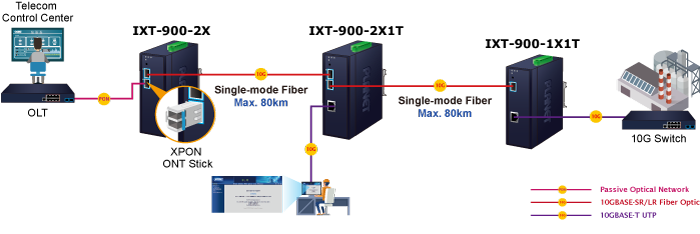

Two Fiber Optic Ports Double the Distance of Deployment

The IXT-900-2X offers two 10G fiber ports, which can be used for single mode and multimode conversion, as well as for converting between PON and Ethernet. Since both ports are fiber optic, the transmission distance can reach up to 80km on both ends, significantly extending the service coverage.

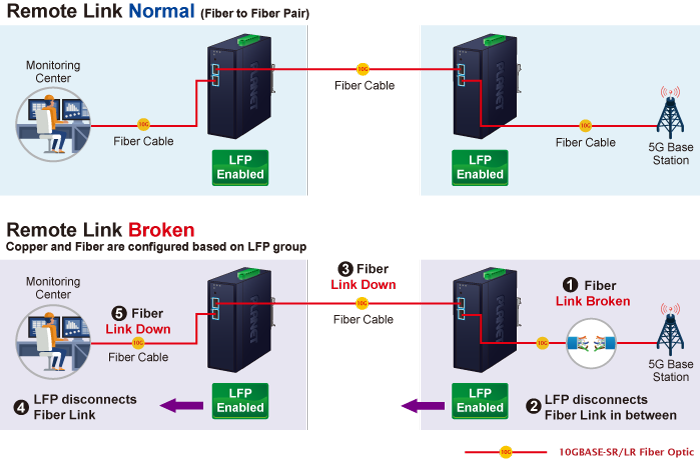

Link Fault Pass-through

Link Fault Pass-through is a networking feature. It facilitates the detection and propagation of link faults or errors from one network device to another. It helps maintain network reliability and minimizes downtime by allowing devices to dynamically respond to link faults. Link Fault Pass-through improves fault detection and enables faster troubleshooting and resolution processes.

How it works:

  • When a link fault occurs, the device experiencing the fault generates a notification.
  • This notification is then forwarded to other connected devices using Link Fault Pass-through.
  • Upon receiving the link fault information, the connected devices become aware of the fault.
  • This awareness enables them to take appropriate actions, such as rerouting traffic or disabling the affected port.



Environmentally Hardened Design

With the IP40 industrial case, the IXT-900-2X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IXT-900-2X can be placed in almost any difficult environment.

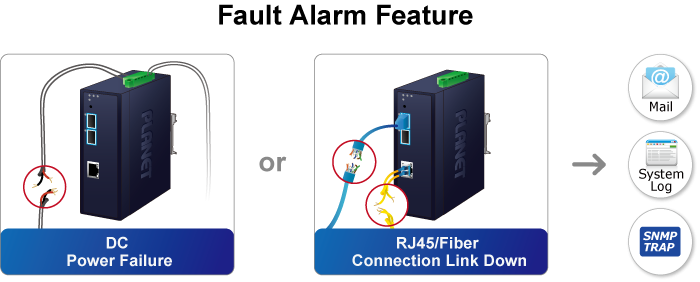

Effective Alarm Alert for Better Protection

The IXT-900-2X supports a Fault Alarm feature which can alert the users when there is something wrong with the media converters. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and effort.

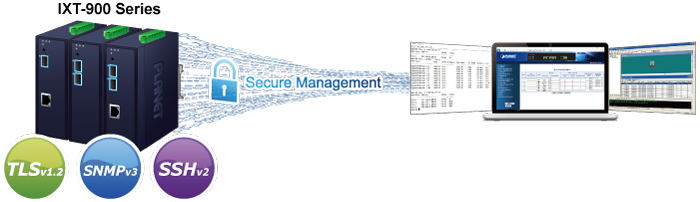

Network with Cybersecurity Helps Minimize Risks

The IXT-900-2X is equipped with enhanced cybersecurity features to fend off cyber threats and attacks. It supports SSHv2, TLSv1.2, and SNMPv3 protocols to provide strong protection against advanced threats. To safely transmit critical data to colleagues or customers, the IXT-900-2X’s cybersecurity feature protects network management and enhances the security of mission-critical networks without incurring any additional deployment cost or effort.

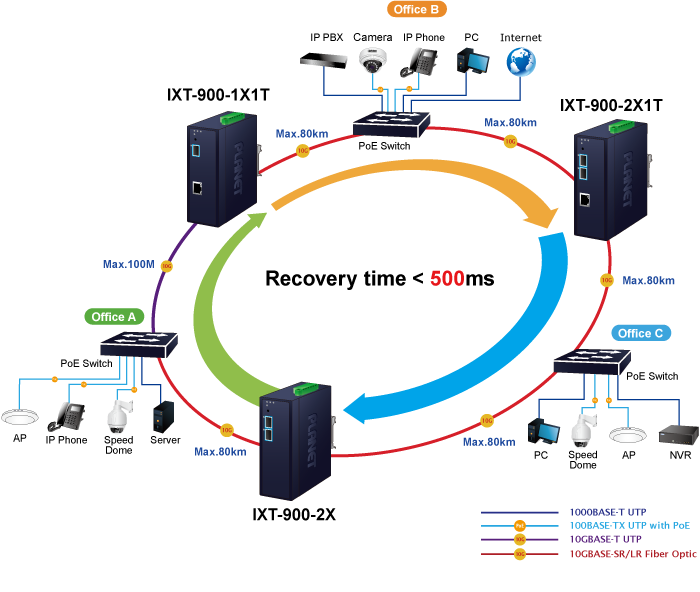

Redundant Ring, Fast Recovery for Critical Network Applications

The IXT-900-2X supports software-based redundant ring technology and features strong, rapid self-recovery capability to prevent interruption and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, ensuring rapid self-recovery in ring networks. With this advanced feature, the data link recovery time can be as fast as 500ms.

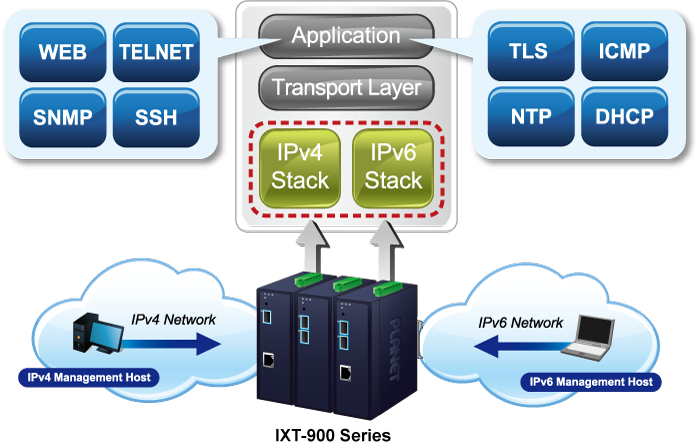

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the IXT-900-2X helps the enterprises and telecoms step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.



SNMP for Comprehensive Network Monitoring and Centralized Control

SNMP (Simple Network Management Protocol) provides network monitoring and management capabilities by gathering real-time information about network devices. By proactively identifying and addressing network issues, reliability and performance are improved. SNMP also facilitates centralized control of network devices, allowing for monitoring and configuration of multiple devices from a single location, reducing manual effort and enhancing operational efficiency.



Layer 2 Features

The device has a 16K-entry MAC address table that automatically removes inactive addresses. Its backbone supports speeds of up to 40Gbps, and it can handle Jumbo Frames up to 9K in size. The device is equipped with Storm Control to manage Broadcast/Multicast/Unknown-Unicast traffic to prevent excessive network flooding.



Efficient Traffic Control

The IXT-900-2X media converter boasts advanced QoS features and robust traffic management capabilities, optimizing the delivery of business-class data, voice, and video solutions. Its feature set includes broadcast/multicast/unicast storm control, per-port bandwidth control, and 802.1p CoS/DSCP/IP Precedence QoS priority and remarking. These capabilities guarantee optimal performance for VoIP and video stream transmission, maximizing the utilization of limited network resources for enterprises

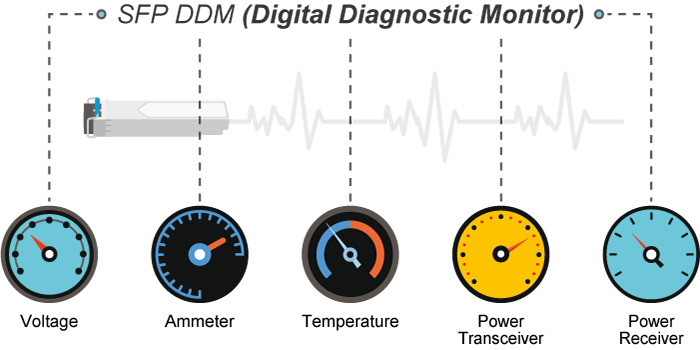

Intelligent SFP Diagnosis Mechanism

The IXT-900-2X supports the SFP-DDM (digital diagnostic monitor) function, which greatly helps network administrators easily monitor real-time parameters of the SFP transceivers. These parameters include optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app support IT staff in remotely managing all network devices and monitoring the operation statuses of the IXT-900-2X. These systems are designed for both enterprises and industries where the deployments of the IXT-900-2X can be remote. This allows for bugs or faulty conditions to be found without having to go to the actual location. With UNI-NMS or CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.

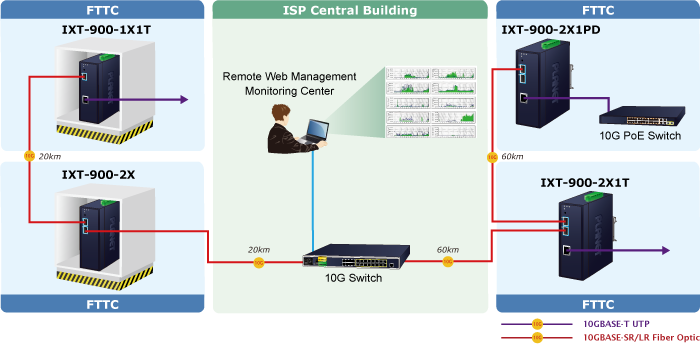

Fiber-optic Networking for ISPs, Enterprises and Homes

With high-speed data transmission and easy installation, the IXT-900-2X can build FTTH (Fiber to the Home) and FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises. The IXT-900-2X enables network administrators to easily monitor operations via the Web management interface.

Physical Port

  • Two 10G/2.5G/1G/100BASE-X SFP+ interfaces



Layer 2 Features

  • Storm Control support
    • Broadcast / Multicast / Unknown Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    • Up to 256 VLAN groups, out of 4096 VLAN IDs
  • Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based)
  • Link Layer Discovery Protocol (LLDP)
  • 16K MAC address table with auto-aging
  • Jumbo Frame support up to 9K in size



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all converter ports
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS / DSCP / IP Precedence
    • IP TCP/UDP port number
    • Typical network application



Management

  • IPv4 and IPv6 dual stack management
  • Support Link Fault Pass-through
  • Management Interfaces
    • Web HTTP/HTTPS management
    • Telnet Command Line Interface
    • SNMPv1, v2c, v3 monitoring
    • SSHv2, TLSv1.2
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • Simple Network Time Protocol (SNTP)
  • User privilege levels control
  • SNMP Management
    • SNMP trap for interface link up and link down notification
    • Four RMON groups (history, statistics, alarms and events)
  • Network Diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
  • Syslog remote alarm
  • Local system Log
  • ICMPv6 / ICMPv4 remote ping
  • PLANET Smart Discovery Utility for convenient deployment
  • PLANET Remote Management
    • PLANET NMS Controller and CloudViewerPro app for central management



Security

  • IP address access management to prevent unauthorized intruder
  • Static MAC setting and MAC Filtering



Case and Installation

  • Dual 9~48VDC external power supply, 24VAC or PoE input (only for IXT-900-2X1PD)
  • -40 to 75 degrees C operating temperature
  • Supports 4KVDC Contact / 8KVDC Air Ethernet ESD protection
  • Wall-mount and DIN-rail installation



Hardware Specifications
Fiber Interface2x 10G/2.5G/1G/100BASE-X SFP+ interface
Reset Button< 5 sec.: System reboot
> 5 sec.: Factory default

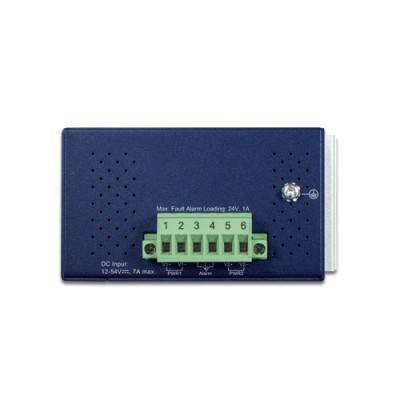

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
EnclosureIP40 metal case
ESD Protection4KVDC Contact / 8KVDC Air
InstallationWall-mount and DIN-rail kit installation
Dimensions (W x D x H)50 x 87 x 135mm
Weight576g
Power Requirement9~48V DC or 24V AC
Power Consumption3.2W/10.98BTU (No Loading) / 5.6W/19.1BTU (Full Loading)
LED IndicatorSystem:
PWR 1 (Green)
PWR 2 (Green)
Alarm (Red)
Per 10GBASE-X SFP+ Port:
1G LINK/ACT (Green)
2.5G LINK/ACT (Green)
10G LINK/ACT (Amber)
Transmission Specifications
Processing SchemeStore and Forward
Fabric40Gbps
Throughput (packet per second)29.76Mpps@64bytes
Address Table16K entries, automatic source address learning and aging
Flow ControlIEEE 802.3x pause frame for full duplex
Jumbo Frame9K
Shared Buffer12Mbits
Layer 2 Function
Port ConfigurationPort disable/enable
Flow Control disable/enable
Port link capability control
Port StatusDisplay each port’s link status, speed, Auto-negotiation status, duplex mode, flow control status
VLANIEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Up to 256 VLAN groups, out of 4096 VLAN IDs
Bandwidth ControlPer port bandwidth control
Ingress: 16~10,000,000Kbps
Egress: 16~10,000,000Kbps
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
Traffic classification:
Cos/802.1p
DSCP
IP Precedence
Security Function
Access SecurityRemote management protocols support: SSH, Telnet, HTTP and HTTPs
System Management
Basic Management InterfacesTelnet, Web browser, SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS Controller
PLANET CloudViewerPro mobile app
Event ManagementRemote syslog
Local system log
SNMP trap
SNMP MIBsRFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 3411 SNMP-Frameworks-MIB
LLDP
MAU-MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3z, 1000BASE-SX/LX
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3x full-duplex flow control
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1ab LLDP
RFC 2474 DSCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
ITU-T G.8032 ERPS Ring
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
