PLANET LS200-PT-868M IP65 LoRaWAN Product Temperature Sensor

PLANET LS200-PT-868M IP65 LoRaWAN Product Temperature Sensor
PLANET LS200-PT-868M IP65 LoRaWAN Product Temperature Sensor
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LS200-PT-868M
  • Βαρος: 0.21kg
  • Διαστασεις: 8,819.00 x 11.20 x 3.20
388,17€
Χωρίς ΦΠΑ: 313,04€

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

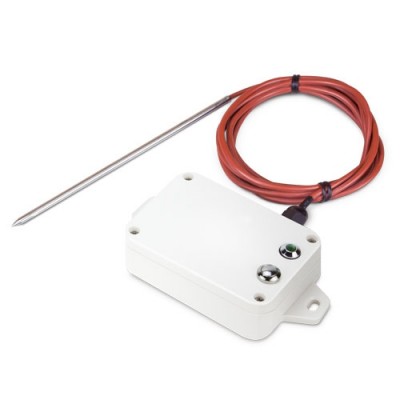

PLANET LS200-PT IP65 LoRaWAN Product Temperature Sensor, equipped with the PT1000 Needle Probe, excels in monitoring temperatures from -70 to 200 degrees Celsius during storage and transport. Encased in a durable IP65-rated housing, it ensures reliability in diverse environments. Utilizing LoRaWAN technology, this sensor provides real-time temperature data, offering precision for industries like pharmaceuticals and cold chain logistics. The PT1000 Needle Probe enhances its versatility, making it a vital tool for maintaining product quality, adhering to regulations, and optimizing supply chain efficiency.



LoRa and LoRaWAN Wireless Technology

LoRa is a low-power, wide area network (LPWAN) RF modulation technology. It standardizes LPWANs and enables extremely long-range data links. With a range of up to three miles (five kilometers) in urban areas and over 10 miles (15 kilometers) in rural areas (line of sight), LoRa is ideal for creating networks that require long-range or deep in-building communication. A key feature is its ultra-low power requirements, enabling the deployment of battery-operated devices that can last up to several years. Using the open LoRaWAN protocol in a star topology, it's suitable for applications with numerous low-power devices collecting small amounts of data. The LS series is ideal for LoRa-enabled devices in the IoT system.



LoRaWAN-based Sensor

PLANET LoRaWAN LS100/LS200 series Sensor is fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supporting the LoRaWAN class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor facilitates the seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

  • LS100-WL

  IP65 LoRaWAN Water Leak Sensor

  • LS100-PIR

  IP30 LoRaWAN Indoor Occupancy Sensor

  • LS100-DW

  IP30 LoRaWAN Door and Window Sensor

  • LS200-TH

  IP65 LoRaWAN Indoor Temperature and Humidity Sensor

  • LS200-PT

  IP65 LoRaWAN Product Temperature Sensor

  • LS200-TC

  IP65 LoRaWAN Machine Temperature Sensor

  • LS200-RF

  IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor

  • LS200-LG

  IP65 LoRaWAN Light Level Sensor

  • LS200-CM3

  IP53 LoRaWAN 3-phase Current Meter

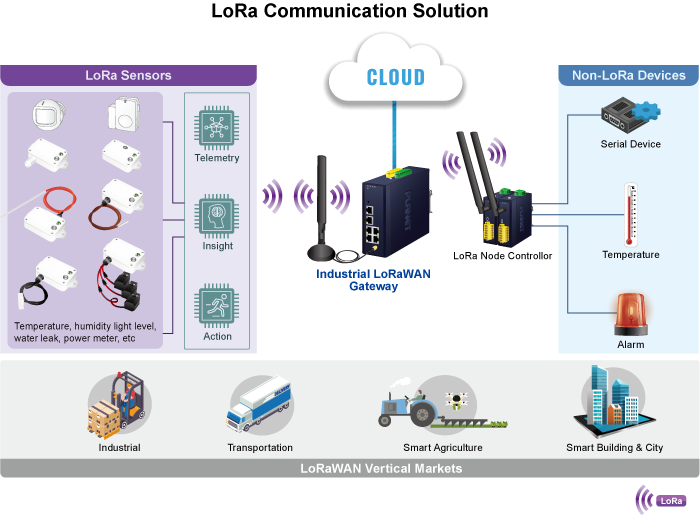

LoRa Communication Solution

PLANET LoRaWAN LS100/LS200 series Sensor, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner.

  • Product Temperature Sensor with PT1000 Needle Probe (-70~200 degrees C)
  • IP65 rating
  • LoRaWAN™ Class A compatible
Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-PT-EU868
863–870 MHz

LS200-PT-US915
902–928 MHz
TX PowerLS200-PT-EU868
EU868 16dbm
IN865 20dbm (optional)

LS200-PT-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.6V ER14505 AA battery in parallel (Battery not included)
Operating VoltageDC 3.1V~3.65V
Battery Life Time5 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current25uA
Wake-up Current (Typical value)9.94mA
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)112 x 88.19 x 32 mm
Weight141 g
Probe InfoPT1000 Platinum Thermal
Probe Temperature Detecting Range-70°C to 200℃
Probe Wire Length2m
Probe Dimensions5mm in diameter * 150mm in length, needle probe
Ingress ProtectionIP65
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B



Datasheet

DateVersionDescriptionDownload
2024-01-051.0LS200-PT



User's Manual

DateVersionDescriptionDownload
2023-12-291.0Initial release.
