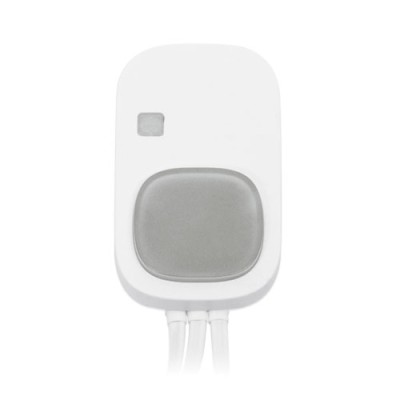

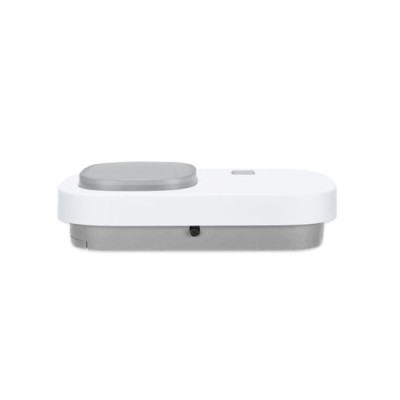

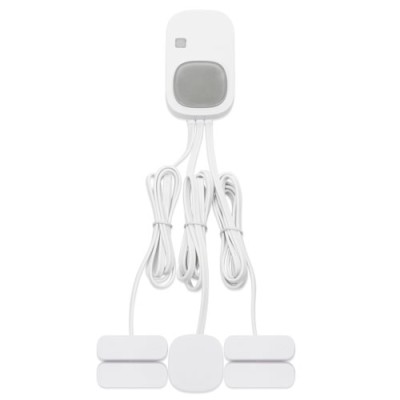

PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor

PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
PLANET LS200-MF8-868M IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/IP67 Reed Switch/Light/IP40 Glass Break Sensor
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LS200-MF8-868M
  • Βαρος: 0.22kg
189,23€
Χωρίς ΦΠΑ: 152,61€

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

PLANET LS200-MF8 IP30 LoRaWAN Multi-functional Sensor supports the EU868 and US915 frequency bands, both of which fall within the sub-1 GHz range. It is designed to enhance the functionality and security of various environments through its comprehensive monitoring capabilities. Ideal for smart homes or long-term care, it maintains optimal indoor climate by monitoring temperature and humidity levels, ensuring comfort and energy efficiency.

  • Its passive infrared sensor is essential for security systems, detecting any movement.
  • The light sensor optimizes indoor lighting conditions, reducing energy consumption.
  • Tilt and vibration sensors are crucial in long-term care settings, monitoring machinery performance and structural integrity to prevent potential failures.
  • The reed switch effectively monitors door and window status, while the glass break sensor adds an extra layer of protection by detecting glass breakage.

This multi-functional sensor ensures comprehensive monitoring, improved automation, and heightened security, making it indispensable for modern smart environments.



LoRa and LoRaWAN Wireless Technology

LoRa is a low-power, wide area network (LPWAN) RF modulation technology. It standardizes LPWANs and enables extremely long-range data links. With a range of up to three miles (five kilometers) in urban areas and over 10 miles (15 kilometers) in rural areas (line of sight), LoRa is ideal for creating networks that require long-range or deep in-building communication. A key feature is its ultra-low power requirements, enabling the deployment of battery-operated devices that can last up to several years. Using the open LoRaWAN protocol in a star topology, it's suitable for applications with numerous low-power devices collecting small amounts of data. The LS series is ideal for LoRa-enabled devices in the IoT system.



LoRaWAN-based Sensor

PLANET LoRaWAN LS100/LS200 series Sensor is fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supporting the LoRaWAN class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor facilitates the seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

Environmental Sensors:

  • Temperature and Humidity
    • LS200-TH IP65 LoRaWAN Indoor Temperature and Humidity Sensor
  • Water Leakage
    • LS100-WL IP65 LoRaWAN Water Leak Sensor
  • Light Detection
    • LS200-LG IP65 LoRaWAN Light Level Sensor
  • Gas
    • LS200-VOC IP65 LoRaWAN TVOC Sensor
    • LS200-PM25 IP30 LoRaWAN PM2.5 Sensor
    • LS100-CO IP20 LoRaWAN CO Detector
  • Smoke
    • LS100-SMK IP20 LoRaWAN Smoke Detector



Device Sensors:

  • Temperature and Humidity Sensing
    • LS200-PT IP65 LoRaWAN Product Temperature Sensor
    • LS200-TC IP65 LoRaWAN Machine Temperature Sensor
    • LS200-RF IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor
  • Security Monitoring
    • LS100-PIR IP30 LoRaWAN Indoor Occupancy Sensor
    • LS100-DW IP30 LoRaWAN Door and Window Sensor
  • Power and Current Monitoring
    • LS200-CM3 IP53 LoRaWAN 3-phase Current Meter
    • LS200-CM IP53 LoRaWAN 1-phase Current Meter
    • LS250-PLUG IP20 LoRaWAN Power Plug with Power Meter
  • Multi-function
    • LS200-MF8 IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/Reed Switch/Light/Glass Break Sensor

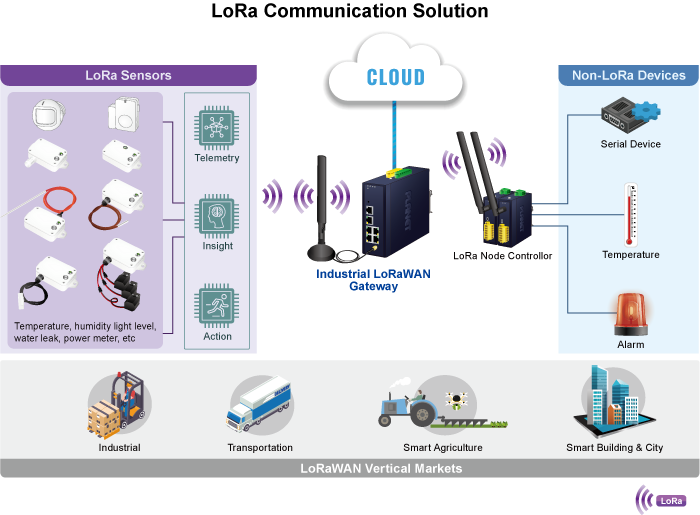

LoRa Communication Solution

PLANET LoRaWAN LS100/LS200 series Sensor, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner.



  • Indoor Temperature and Humidity Sensor (-20~55 degrees C)
  • PIR Sensor (3m to 5m)
  • Light Sensor (1 Lux to 3000 Lux)
  • Tilt Sensor (Conversion Angle: 45±5 degrees)
  • Vibration Sensor
  • Reed Switch Sensor
  • Glass Break Sensor (Detection Mode: Piezoelectric buzzer)
  • LoRaWAN™ Class A compatible
Wireless Transmission
TechnologyLoRaWAN
FrequencyLS200-MK8-EU868
863–870 MHz

LS200-MF8-US915
902–928 MHz
TX PowerLS200-MK8-EU868
EU868 16dbm
IN865 20dbm (optional)

LS200-MF8-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.0V CR2450 button battery
(Battery not included)
Operating VoltageDC 2.3 ~ 3V
Battery Life Time2.26 years
(Conditions: ambient temperature 25 °C, 15 min report once, TX power = 20dBm, LoRa spreading factor SF = 10)
Low Battery Threshold3.2V
Physical Characteristics
Dimensions (L x W x H)75.5 x 19.4 x 44 mm
Weight120 g

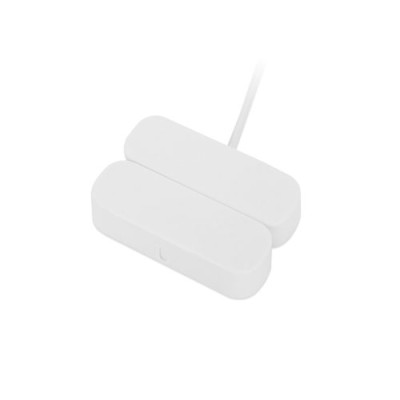

Sensor DimensionsReed Switch: 46 x 16 x 12.9mm

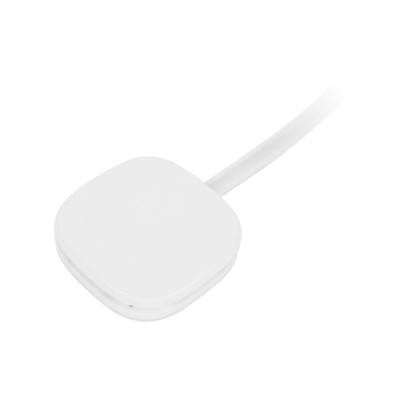

Glass Break Sensor: 36 x 36 x 7.9mm
Ingress ProtectionIP30
Reed switch - IP67
glass break - IP40
Sensor MeasurementsTemperature Sensor Information
Measurement Range: -20°C to 55°C
Measurement Accuracy: ±1°C

Humidity Sensor Information
Measurement Range: 0% RH to 100% RH
Measurement Accuracy: ±7%RH

Passive Infrared Sensor Information
Detectable Angle: 80° horizontally / 55° vertically
Detectable Range: 3m to 5m

Light Sensor Information
Illumination Measurement Range: 1 Lux to 3000 Lux
Illumination Measurement Accuracy: <15%

Tilt Sensor Information
Conversion Angle: 45±5 degrees
Contact Resistance: Less than 10 ohms
The Insulation Resistance: Greater than 100 megohms
Operating Temperature: -40°C to 85 °C
Installation Type: Suitable for PCB at vertical state

Vibration Sensor Information
Model: Ball type omnidirectional signal trigger switch
Voltage: <6V
Current: 2uA to 10mA
Insulation Resistance: >10M Ω
Trigger Rate: 100% (amplitude > 1 mm, frequency > 20 Hz)
Trigger Frequency: >50Hz

Reed Switch Sensor Information
Minimum Insulation Resistance 10^10 Ω
Maximum Contact Resistance 100m Ω
Maximum Switching Current 0.5A

Glass Break Sensor Information
Detection Mode: Piezoelectric buzzer
Power Supply: Self-generated voltage chip
Impedance: Normal (NC): 7Ω (max) Alarm (NO): 1MΩ (min)
Sensor Sensing Range: within 2.5M radius
Signal Sensing Time: 1-3 seconds
Loop Voltage: 15VDC (max)
Loop Current: 25mA (max)
Operating Temperature: -10 to 50 °C
Wire Length: 100cm
Operating Temperature-10°C to 50°C
Relative Humidity<90% RH (non-condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B



Datasheet

DateVersionDescriptionDownload
2024-07-051.0LS200-MF8
