PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm

PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
PLANET LS100-SMK-868M IP20 LoRaWAN Smoke Detector High-Temperature Alarm
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LS100-SMK-868M
  • Βαρος: 0.25kg
164,97€
Χωρίς ΦΠΑ: 133,04€

Build a Smart IoT Environment with Fabulous LoRaWAN Sensor

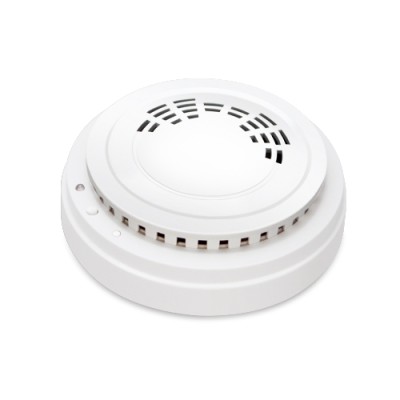

PLANET LS100-SMK IP20 LoRaWAN Smoke Detector is a crucial addition to any safety and security system, designed to detect smoke and high temperatures, providing early warnings to prevent potential fire hazards. Its smoke detection capability ensures rapid identification of smoke particles, crucial for early fire detection. Additionally, the high-temperature alarm activates when temperatures exceed 60°C, signaling potential overheating or fire. Equipped with an alarming bell, the LS-SMK promptly alerts occupants to take necessary action, enhancing safety measures in residential, commercial, and industrial environments. This multi-functional sensor ensures comprehensive fire safety, reducing risks and enhancing peace of mind.



LoRa and LoRaWAN Wireless Technology

LoRa is a low-power, wide area network (LPWAN) RF modulation technology. It standardizes LPWANs and enables extremely long-range data links. With a range of up to three miles (five kilometers) in urban areas and over 10 miles (15 kilometers) in rural areas (line of sight), LoRa is ideal for creating networks that require long-range or deep in-building communication. A key feature is its ultra-low power requirements, enabling the deployment of battery-operated devices that can last up to several years. Using the open LoRaWAN protocol in a star topology, it's suitable for applications with numerous low-power devices collecting small amounts of data. The LS series is ideal for LoRa-enabled devices in the IoT system.



LoRaWAN-based Sensor

PLANET LoRaWAN LS100/LS200 series Sensor is fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supporting the LoRaWAN class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor facilitates the seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

Environmental Sensors:

  • Temperature and Humidity
    • LS200-TH IP65 LoRaWAN Indoor Temperature and Humidity Sensor
  • Water Leakage
    • LS100-WL IP65 LoRaWAN Water Leak Sensor
  • Light Detection
    • LS200-LG IP65 LoRaWAN Light Level Sensor
  • Gas
    • LS200-VOC IP65 LoRaWAN TVOC Sensor
    • LS200-PM25 IP30 LoRaWAN PM2.5 Sensor
    • LS100-CO IP20 LoRaWAN CO Detector
  • Smoke
    • LS100-SMK IP20 LoRaWAN Smoke Detector



Device Sensors:

  • Temperature and Humidity Sensing
    • LS200-PT IP65 LoRaWAN Product Temperature Sensor
    • LS200-TC IP65 LoRaWAN Machine Temperature Sensor
    • LS200-RF IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor
  • Security Monitoring
    • LS100-PIR IP30 LoRaWAN Indoor Occupancy Sensor
    • LS100-DW IP30 LoRaWAN Door and Window Sensor
  • Power and Current Monitoring
    • LS200-CM3 IP53 LoRaWAN 3-phase Current Meter
    • LS200-CM IP53 LoRaWAN 1-phase Current Meter
    • LS250-PLUG IP20 LoRaWAN Power Plug with Power Meter
  • Multi-Function
    • LS200-MF8 IP30 LoRaWAN Temperature/Humidity/PIR/Tilt/Vibration/Reed Switch/Light/Glass Break Sensor

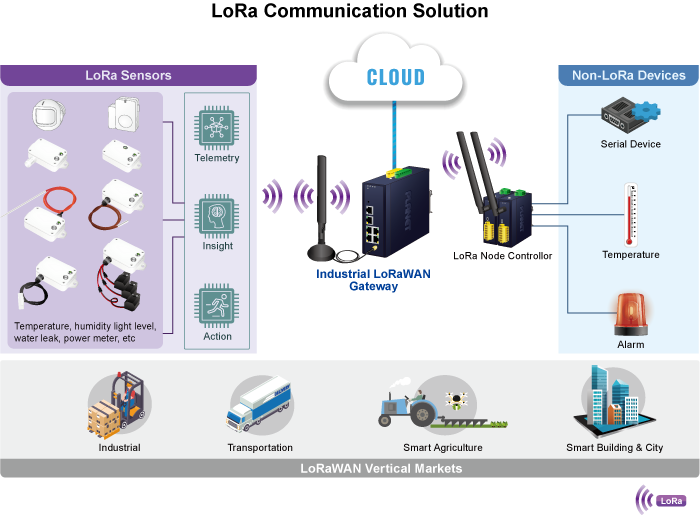

LoRa Communication Solution

PLANET LoRaWAN LS100/LS200 series Sensor, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner.



  • Smoke Detection
  • High Temperature Alarm (>60°C)
  • Alarming Bell
  • LoRaWAN™ Class A compatible
Wireless Transmission
TechnologyLoRaWAN
FrequencyLS100-SMK-EU868
863–870 MHz

LS100-SMK-US915
902–928 MHz
TX PowerLS100-SMK-EU868
EU868 16dbm
IN865 20dbm (optional)

LS100-SMK-US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2 x1.5V AAA alkaline batteries
(Battery not included)
Operating Voltage2.3V – 3.3V
Battery Life Time4.7 years
(25°C, 60-minutes reports, TX power = 20dBm, SF10)
Standby Current12uA
Wake-up Current (Typical value)580mA
Low Battery Threshold2.4V
Physical Characteristics
DimensionsØ106 x 40.6 mm
Weight105 g
Ingress ProtectionIP20
Sensor MeasurementsSmoke Detection
High Temperature Alarm (>60°C)
Alarming Bell:
-85dBm @ 3 meter
Operating Temperature-10°C to 55°C
Relative Humidity<90% RH (non condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceCE RED, FCC PART 15B



Datasheet

DateVersionDescriptionDownload
2024-07-051.0LS100-SMK



User's Manual

DateVersionDescriptionDownload
2024-06-141.0Initial Release.
