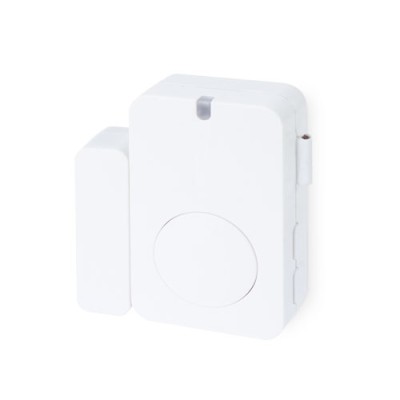

PLANET LS100-DW-868M IP30 LoRaWAN Door and Window Sensor

PLANET LS100-DW-868M IP30 LoRaWAN Door and Window Sensor
PLANET LS100-DW-868M IP30 LoRaWAN Door and Window Sensor
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LS100-DW-868M
  • Βαρος: 0.05kg
  • Διαστασεις: 3,805.00 x 5.70 x 1.52
110,63€
Χωρίς ΦΠΑ: 89,22€

Build a Smart IoT Environment with Fabulous LoRaWAN sensor

PLANET LS100-DW IP30 LoRaWAN Indoor Occupancy Sensor, which offers an elegant solution for real-time monitoring of building entrances. Apart from enhanced security measures, it contributes to energy management by providing data support. Through LoRaWAN connectivity, this sensor delivers real-time status updates on doors and windows, improving energy efficiency and access control.



LoRa and LoRaWAN Wireless Technology

LoRa is a low-power, wide area network (LPWAN) RF modulation technology. It standardizes LPWANs and enables extremely long-range data links. With a range of up to three miles (five kilometers) in urban areas and over 10 miles (15 kilometers) in rural areas (line of sight), LoRa is ideal for creating networks that require long-range or deep in-building communication. A key feature is its ultra-low power requirements, enabling the deployment of battery-operated devices that can last up to several years. Using the open LoRaWAN protocol in a star topology, it's suitable for applications with numerous low-power devices collecting small amounts of data. The LS series is ideal for LoRa-enabled devices in the IoT system.

LoRaWAN-based Sensor

PLANET LoRaWAN LS100/LS200 series Sensor is fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supporting the LoRaWAN class A protocol. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor facilitates the seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

  • LS100-WL

  IP65 LoRaWAN Water Leak Sensor

  • LS100-PIR

  IP30 LoRaWAN Indoor Occupancy Sensor

  • LS100-DW

  IP30 LoRaWAN Door and Window Sensor

  • LS200-TH

  IP65 LoRaWAN Indoor Temperature and Humidity Sensor

  • LS200-PT

  IP65 LoRaWAN Product Temperature Sensor

  • LS200-TC

  IP65 LoRaWAN Machine Temperature Sensor

  • LS200-RF

  IP65 LoRaWAN Refrigerator Temperature and Humidity Sensor

  • LS200-LG

  IP65 LoRaWAN Light Level Sensor

  • LS200-CM3

  IP53 LoRaWAN 3-phase Current Meter

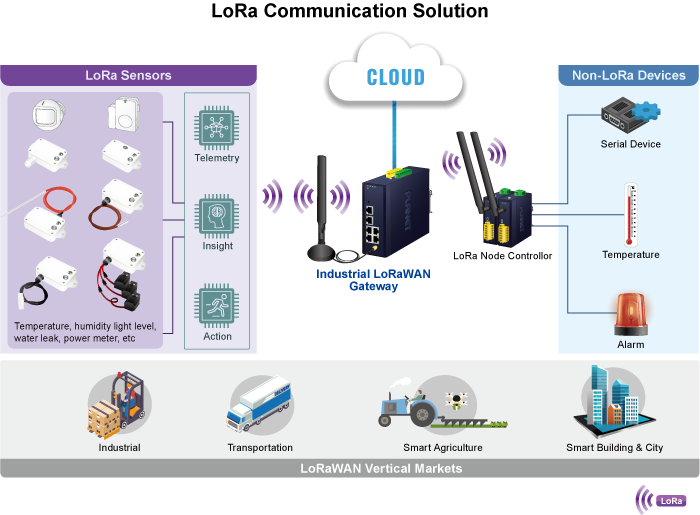

LoRa Communication Solution

PLANET LoRaWAN LS100/LS200 series Sensor, fully compatible with standard LoRaWAN gateways like PLANET LCG-300 series, supports the LoRaWAN class A. Beyond compatibility, it offers advanced features enhancing IoT applications. With reliable data transmission and low power consumption, it meets diverse IoT demands. In building automation, the sensor enables real-time monitoring and control, optimizing HVAC systems for energy efficiency. In agriculture, it aids precision farming by monitoring soil conditions and livestock well-being. For smart metering, it excels in accurate data acquisition, facilitating energy consumption monitoring and resource management. Its retrofitting capabilities seamlessly integrate various sensors, transforming the existing infrastructure into smart, connected systems. In summary, PLANET LoRaWAN Sensor enriches IoT applications with advanced features, ensuring compatibility and empowering industries for increased efficiency and sustainability in a concise manner.



  • Door and Window contact Sensor
  • IP30 rating
  • LoRaWAN™ Class A compatible



Wireless Transmission
TechnologyLoRaWAN
FrequencyLS100-DW -EU868
863–870 MHz

LS100-DW -US915
902–928 MHz
TX PowerLS100-DW -EU868
EU868 16dbm
IN865 20dbm (optional)

LS100-DW -US915
US915 20dbm
AS923 16dbm (optional)
AU915 20dbm (optional)
KR920 14dbm (optional)
Rx Sensitivity-136dBm (LoRa, Spreading Factor = 12, Bitrate = 293bps)
-121dBm (FSK, Frequency Deviation = 5kHz, Bitrate = 1.2kbps)
Work ModeOTAA/ABP Class A
Data Interfaces
Power Supply2x 3.0V CR2450 button battery (Battery not included)
Operating VoltageDC 2.4V~3V
Battery Life Time3 years (25C, 15-minute reports, TxPower=20dBm, SF10)
Standby Current12uA
Wake-up Current (Typical value)120mA/11mA
Low Battery Threshold2.4V
Physical Characteristics
Dimensions(L x W x H)57 x 38.05 x 15.2 mm
42.5 x 13 x 12 mm (Magnet)
Weight43.8g
Ingress ProtectionIP30
Operating Temperature-20°C to 55°C
Relative Humidity<90% RH (non-condensing)
Storage Temperature-40 °C ~ 85 °C
Standards Conformance
Regulatory ComplianceFCC PART 15B



Datasheet

DateVersionDescriptionDownload
2024-01-051.0LS100-DW



User's Manual

DateVersionDescriptionDownload
2023-12-291.0Initial release.
