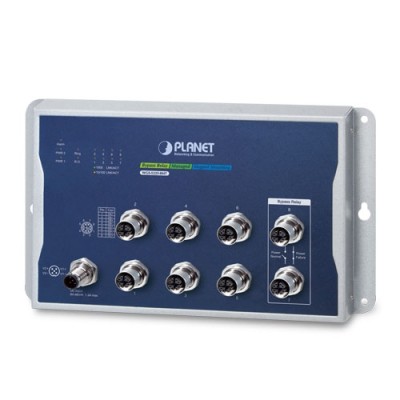

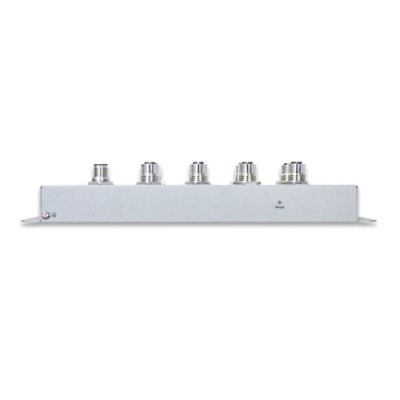

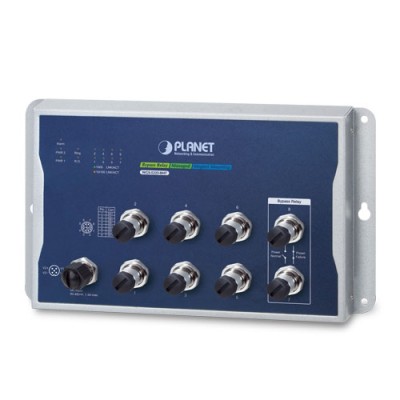

PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch

PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
PLANET WGS-5225-8MT Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: WGS-5225-8MT
  • Βαρος: 1.53kg
  • Διαστασεις: 14.00 x 24.50 x 2.44
815,15€
Χωρίς ΦΠΑ: 657,38€

Easily-deployed and Expanded Network

PLANET WGS-5225-8MT managed switch offers eight 10/100/1000BASE-T M12 ports and is housed in an IP40-rated enclosure with redundant 9-48 VDC power inputs. Designed to be deployed in  the industrial environments, the WGS-5225-8MT offers wire-speed throughput, shock and vibration proofing, and a wide -40° to 75°C operating temperature range.

The WGS-5225-8MT offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-5225-8MT is able to operate reliably, stably and quietly in railway and other industrial applications subject to shock, vibration and other extreme conditions without affecting its performance. Besides, the WGS-5225-8MT with bypass relay ports ensure non-stop data flow even in the event of a power outage.









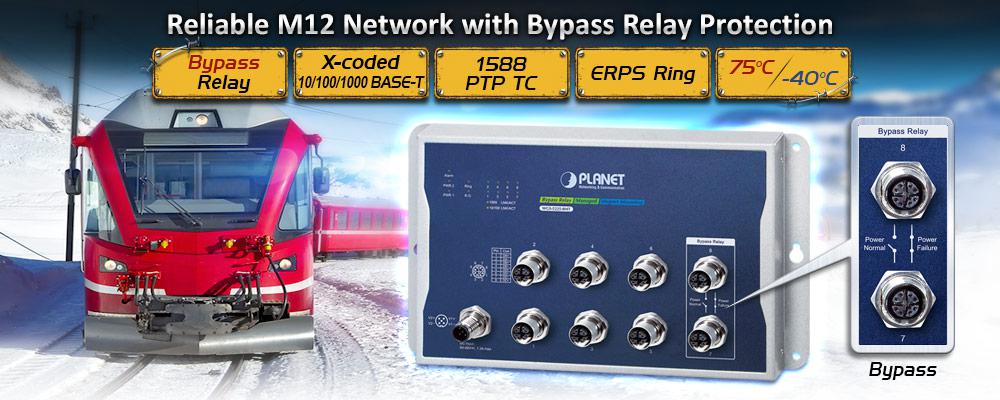

Bypass Relay Prevents Link Failure During Power Loss

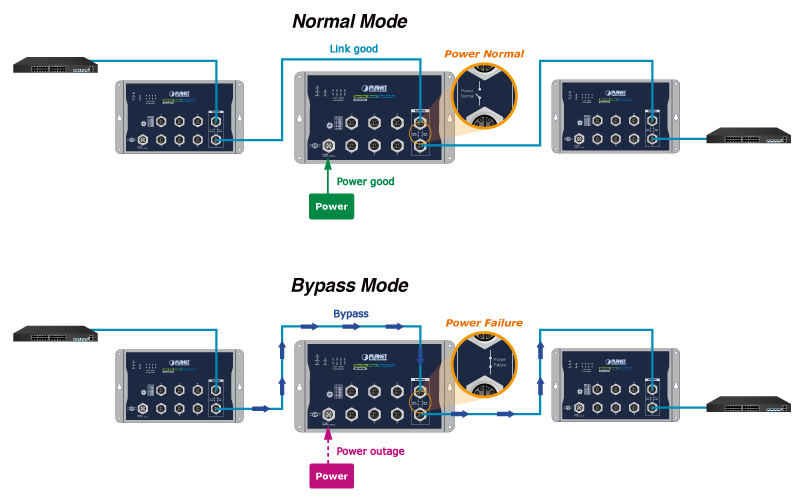

Bypass relay is set to bypass the failed switch to the next normal switch to prevent the network from power loss. The WGS-5225-8MT supports the bypass relay function on the one pair of Gigabit ports. When the switch is operating normally, the Gigabit ports operate in the same way as the other ports, processing and forwarding Ethernet packets. Bypass relay ports allow network traffic to continue to flow in the event of a power outage. It also can go back to the normal mode when power is back and the switch is completely booting up to avoid another network loss.

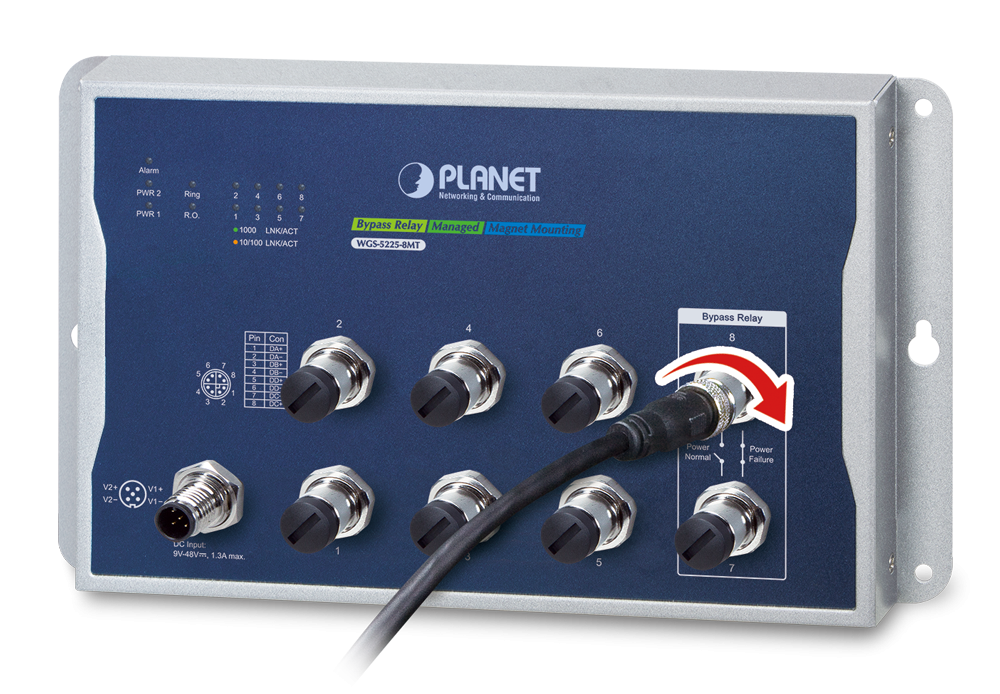

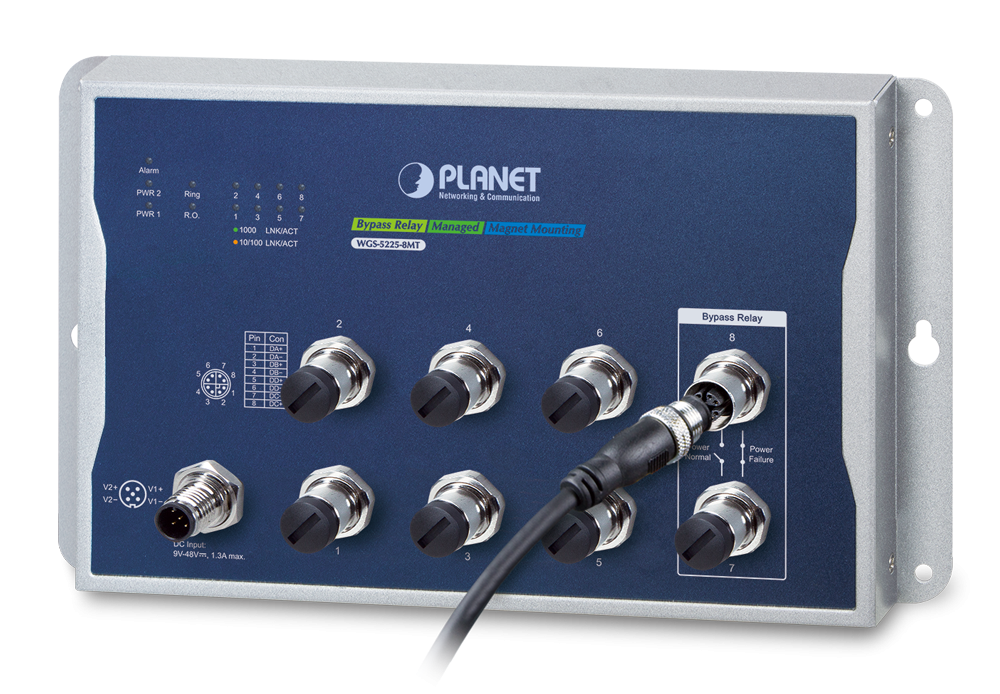

Vibrationproof and Dustproof M12 Ethernet Connector

The WGS-5225-8MT is equipped with 8-port 10/100/1000BASE-T, auto-negotiation, vibration-proof, waterproof and dustproof M12 connector. The M12 connector provides tight and strong connection, and guarantees stable Ethernet operating performance in a high vibration and shock environment. It comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

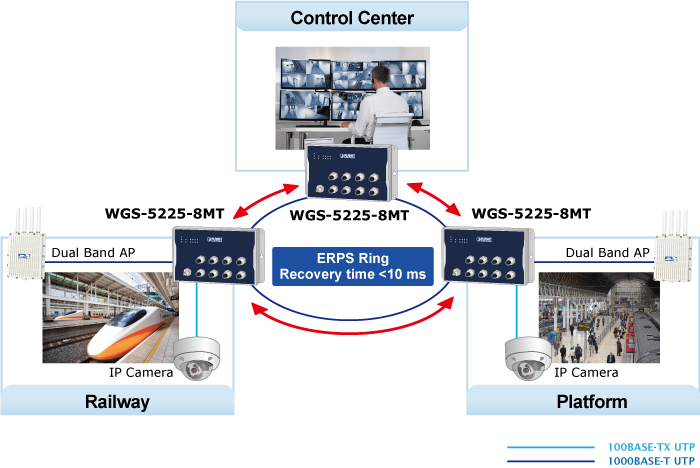

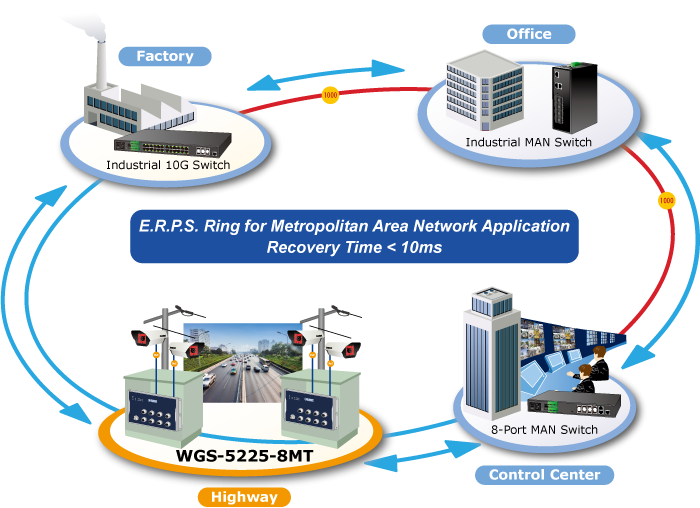

Redundant Ring, Fast Recovery for Critical Network Applications

The WGS-5225-8MT supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.









Network with Cybersecurity Helps Minimize Security Risks

The WGS-5225-8MT comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGS-5225-8MT protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.



Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the WGS-5225-8MT not only provides high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

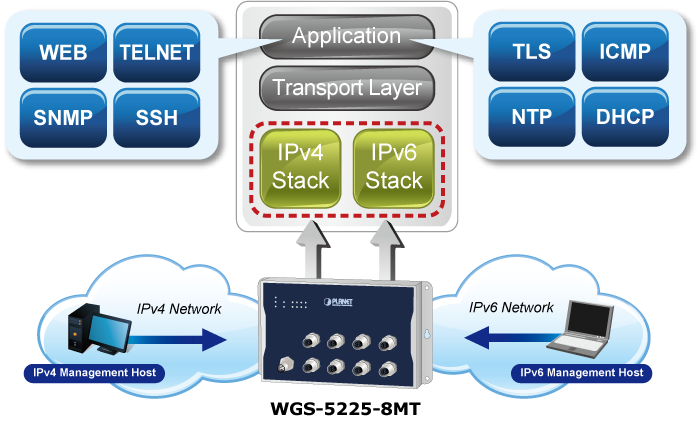

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the WGS-5225-8MT helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 edge network is set up.

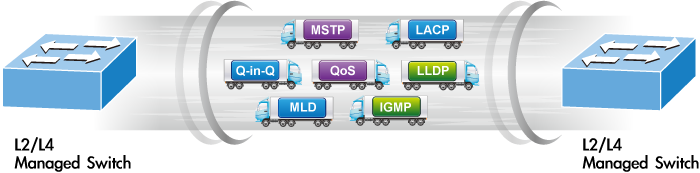

Robust Layer 2 Features

The WGS-5225-8MT can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-5225-8MT allows the operation of a high-speed trunk to combine with multiple ports such as a 4Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.









Efficient Traffic Control

The WGS-5225-8MT is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security from Layer 2 to Layer 4

The WGS-5225-8MT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The WGS-5225-8MT also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Efficient Management

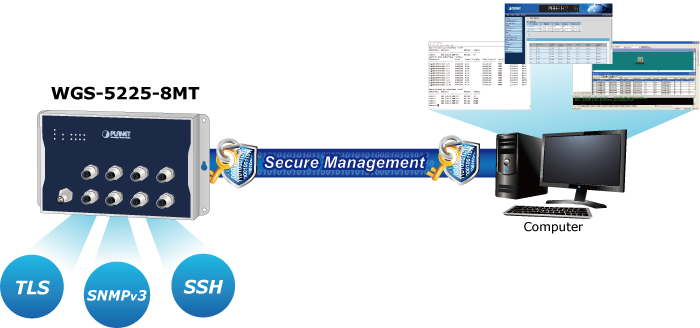

For efficient management, the WGS-5225-8MT is equipped with console, Web and SNMP management interfaces.

  •  With the built-in Web-based management interface, the WGS-5225-8MT offers an easy-to-use, platform-independent management and configuration facility.
  •  For text-based management, it can be accessed via Telnet and the console port.
  •  For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

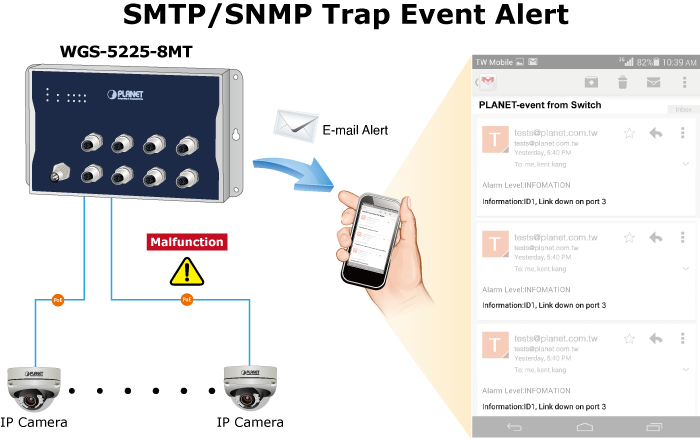

SMTP/SNMP Trap Event Alert

The WGS-5225-8MT provides event alert function through SMTP email and SNMP trap function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.







Modbus TCP provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the WGS-5225-8MT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.



1588 Time Protocol for Industrial Computing Networks

The WGS-5225-8MT is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.



Dual Power Input for High Availability Network System

The WGS-5225-8MT features a strong dual power input system (Dual 9V~48V DC) incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the WGS-5225-8MT via DC Power 2 alternatively without any loss of operation.

High Availability Networking with Excellent Redundancy for Surveillance System

The WGS-5225-8MT features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The WGS-5225-8MT is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission.

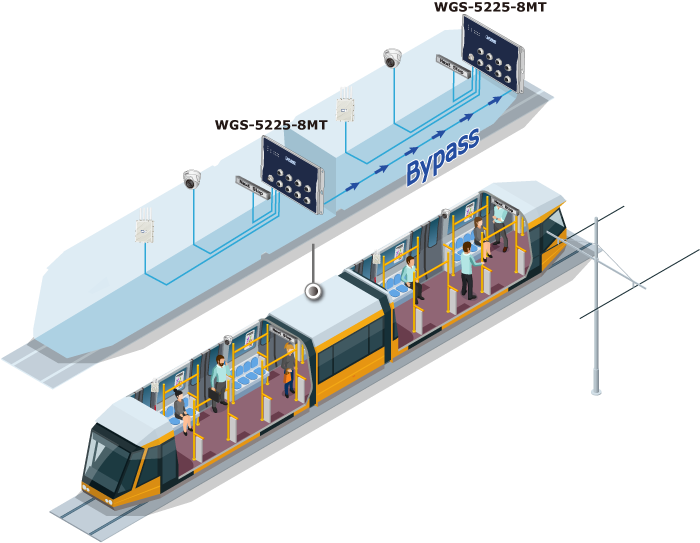

Bypass Relay Solution for Daisy Chain Topology

In a daisy chain topology, if there is one failed node, it will cause the failed links of other switches. For railway communication systems with interconnected networks, the failed upstream link in one train car will impact on the downstream link in other train cars. To prevent such a failure, the WGS-5225-8MT offers two ports with a bypass relay function. If one of the switches has power loss, the other ports of the swithc will bypass the failed relay circuit, enabling the network traffic to continue to flow smoothly to assure continuous system operation.



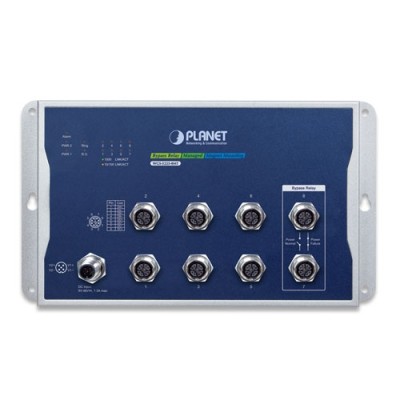

Physical Port

  • 8-port 10/100/1000BASE-T, vibration-proof and dustproof M12 X-coded female connectors



Industrial Hardened Design

  • 1 pair of bypass protection
  • IP40-rated metal case
  • Redundant power design
    • 9 to 48V DC, redundant power with reverse polarity protection
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience

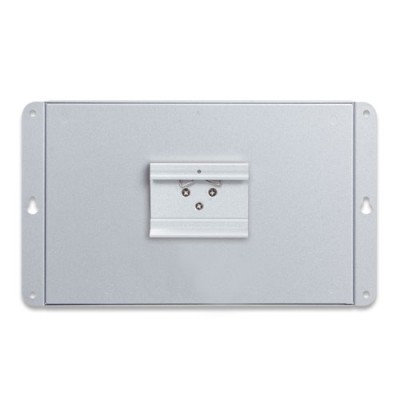

  • DIN-rail and wall-mount designs
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Industrial Protocol

  • Modbus TCP for real-time monitoring in SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol)



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization



Layer 2 Features

  • High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
    • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • IP subnet-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 4 trunk groups, with 8 ports for each trunk
    • Up to 16Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring monitors the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)



Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • ToS/DSCP/IP precedence of IPv4/IPv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based/MAC-based network access authentication
    • IEEE 802.1x authentication with guest VLAN
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List (ACL)
  • Source MAC/IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Telnet command line interface
    • Web switch management
    • SNMP v1, v2c, and v3 switch management
    • SSHv2 and TLSv1.2 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 address/NTP management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • DHCP relay and option 82
  • DHCP server
  • User privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network diagnostic
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    • ICMPv6/ICMPv4 remote ping
  • SMTP, Syslog and SNMP trap remote alarm
  • System Log
  • PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management
Hardware Specifications
Copper Ports8 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports
Power Connector1 x M12, 5-pin A-coded male connector
Bypass Function (Pair)1
Dimensions (W x D x H)245 x 140 x 24.4 mm
Weight1 kg
EnclosureIP40 metal case
InstallationWall-mount kit, magnetic-mount kit or DIN-rail kit
Power ConsumptionSystem on: Max. 7.68 watts/ 26.21 BTU
Full loading: Max. 11.04 watts/ 37.67 BTU
Power RequirementsDual 9~48V DC
ESD Protection6KV DC
LEDSystem:
PWR1 (Green), PWR2 (Green), Alarm (Red)
Ring (Green), R.O. (Green)
10/100/1000 RJ45 Interfaces :
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Switching Functions
Switch ArchitectureStore-and-Forward
Switch Fabric16Gbps/non-blocking
Throughput11.9Mpps@64bytes
Address Table4K entries, automatic source address learning and aging
Shared Data Buffer4M bits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame10K bytes
Layer 2 Management Functions
Port ConfigurationPort disable/ enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/ enable
Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
VLANIEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs
Link AggregationIEEE 802.3ad LACP/ static trunk
4 groups with 8 ports per trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoSTraffic classification based strict priority and WRR
8-level priority for switching:
Port number
802.1p priority
802.1Q VLAN tagging
DSCP/ToS field in IP packet
IGMP SnoopingIGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD SnoopingMLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Bandwidth ControlPer port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
RINGSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
SynchronizationIEEE 1588v2 PTP (Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries
SecurityPort security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Layer 3 Functions
IP InterfacesMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Switch Management
Basic Management InterfacesTelnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet Contents1 x 8-pin X-coded M12-to-RJ45 UTP cable (2m)
1 x M12 5-pin A-coded female connector power cable (1.2m)
1 x Wall-mount Kit
1 x DIN-rail Kit
1 x Magnet Kit
1 x Quick Installation Guide
8 x M12 Female Dust Cap
1 x M12 Power Waterproof Cap



Datasheet

DateVersionDescriptionDownload
2021-04-161.0WGS-5225-8MT



Quick Guide

DateVersionDescriptionDownload
2024-07-121.2Added PSTI function.
2021-04-161.0Initial release.



User's Manual

DateVersionDescriptionDownload
2021-06-251.0Initial release.
