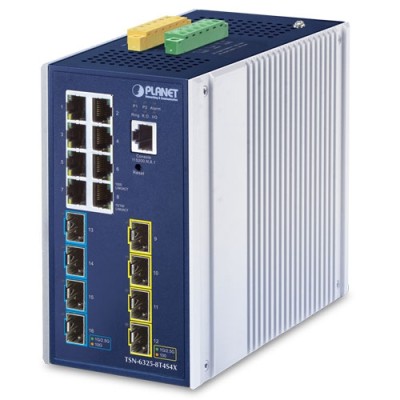

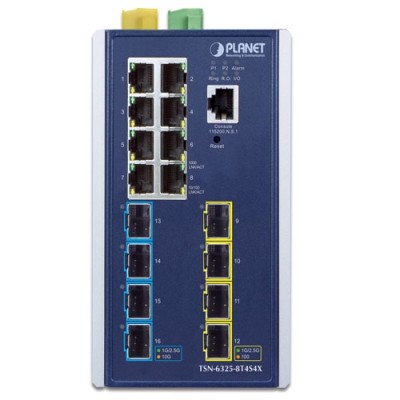

PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch

PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
PLANET TSN-6325-8T4S4X Industrial L3 8-Port 10/100/1000T + 4-Port 1G/2.5G SFP + 4-Port 10GBASE-X SFP+ Managed TSN Ethernet Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: TSN-6325-8T4S4X
  • Βαρος: 1.97kg
  • Διαστασεις: 13.50 x 8.60 x 15.20
1.790,41€
Χωρίς ΦΠΑ: 1.443,88€

Innovative Industrial TSN Ethernet Switch Guaranty Delivery of Time-Sensitive Data

PLANET TSN-6325-8T4S4X is a brand-new Industrial-grade Layer 3 Time-Sensitive Networking (TSN) Managed Ethernet Switch which features 8 10/100/1000BASE-T RJ45 ports, 4 1G/2.5GBASE-X SFP ports and 4 10GBASE-SR/LR SFP+ ports and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy environments, address all levels of the industrial automation network, from the field bus to the factory backbone. And it guarantees end-to-end transmission of high-priority traffic with extremely low latency.

With 10Gbps fiber interfaces, the TSN-6325-8T4S4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone, 5G NR base station or Wi-Fi6/6E wireless AP. The TSN-6325-8T4S4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 116Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands.

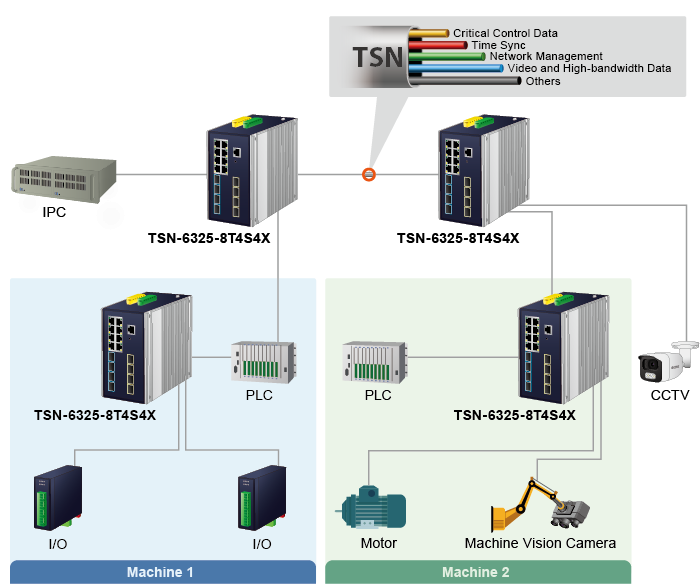

A Simplified Pathway to a TSN-compatible Infrastructure

PLANET TSN-6325-8T4S4X provides real-time, low-latency network communication for industrial automation, 5G NR networks, Industry 4.0, 4K/8K video streaming, and VR/AR gaming industry by using the Time-sensitive Networking (TSN) technology and IEEE 1588 Precision Time Protocol (PTPv2) for time synchronization on all ports.

The TSN-6325-8T4S4X supports TSN IEEE standards needed for a complete real-time communication solution. These include IEEE 802.1AS-REV profile for time synchronization, IEEE 802.1Qbv Enhancements for Scheduled Traffic, IEEE 802.1Qbu Frame Preemption, IEEE 802.3br Interspersing Express Traffic (IET), IEEE 802.1Qci for per-stream filtering and policing (PSFP) and IEEE 802.1CB frame replication and elimination for reliability (FRER) for seamless redundancy.

The TSN-6325-8T4S4X eliminates the need for separating information technology (IT) and operational technology (OT) Ethernet networks, providing a more ubiquitous approach to synchronization and precision timing for today’s industrial automation systems.

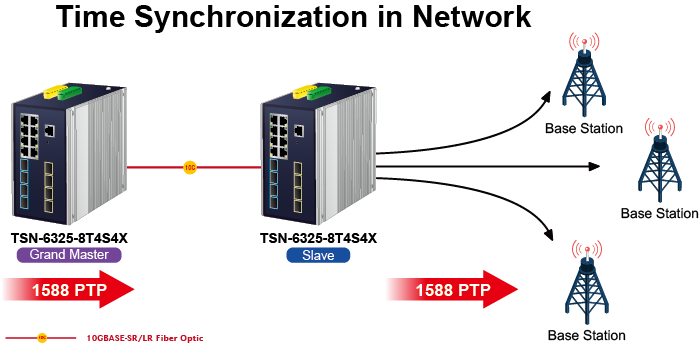

1588 Time Protocol for Industrial Computing Networks

The TSN-6325-8T4S4X features IEEE 1588v2 PTP (Precision Time Protocol) with hardware-based time stamping for precise time synchronization of networks, and support for Boundary Clock, End to End and Peer to Peer Transparent Clock modes. It is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.



10GBASE-X SFP+ High-bandwidth Interfaces for Diversified Bandwidth Applications

The TSN-6325-8T4S4X has the capability to reach a high speed of 10Gbps over fiber-optic cabling which helps to accelerate the performance of large data transmission.

 The fiber-optic 10GBASE-X SFP+ interfaces support triple speeds, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The TSN-6325-8T4S4X provides broad bandwidth and powerful processing capacity.

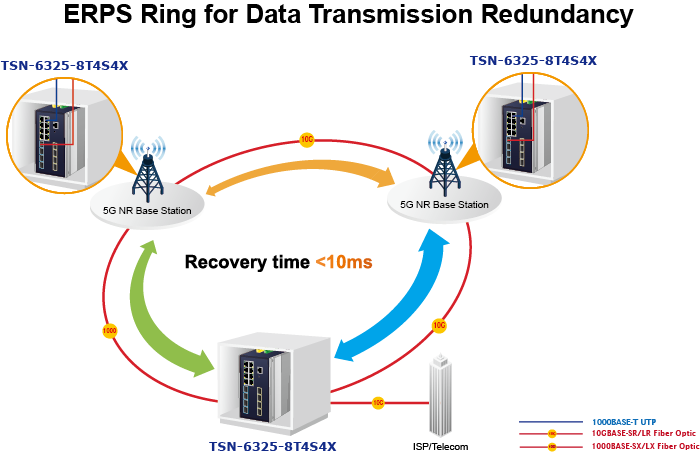

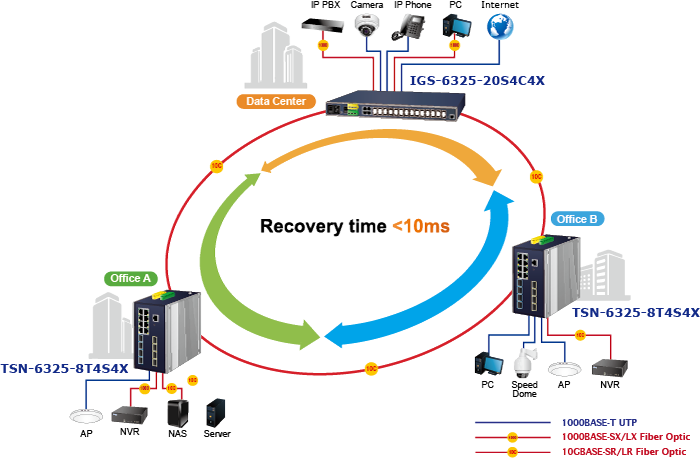

Redundant Ring, Fast Recovery for Critical Network Applications

The TSN-6325-8T4S4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 10ms.



Layer 3 Routing Support

The TSN-6325-8T4S4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Robust Layer 2 Features

The TSN-6325-8T4S4X can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the TSN-6325-8T4S4X allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.



Cybersecurity Network Solution to Minimize Security Risks

The TSN-6325-8T4S4X comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data over a long-distance fiber optic cable to customer's critical equipment in a business network, the cybersecurity feature of the TSN-6325-8T4S4X protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the TSN-6325-8T4S4X can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

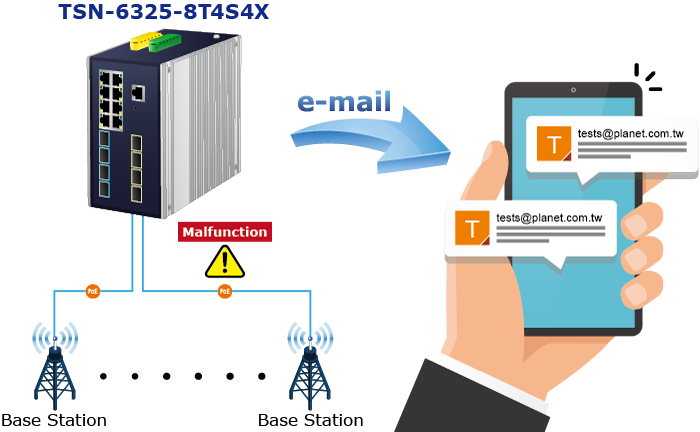

SMTP/SNMP Trap Event Alert

The TSN-6325-8T4S4X provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

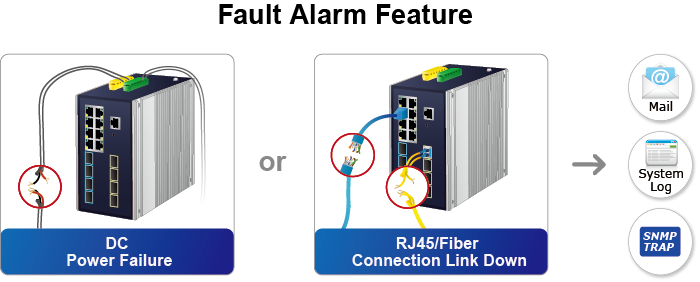

Effective Alarm Alert for Better Protection

The TSN-6325-8T4S4X supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource.

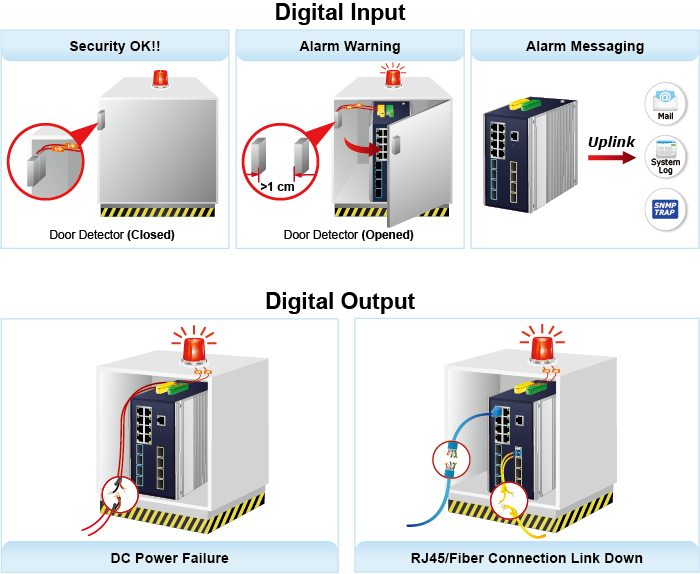

Digital Input and Digital Output for External Alarm

The TSN-6325-8T4S4X supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the TSN-6325-8T4S4X’s port shows link down, link up or power failure.

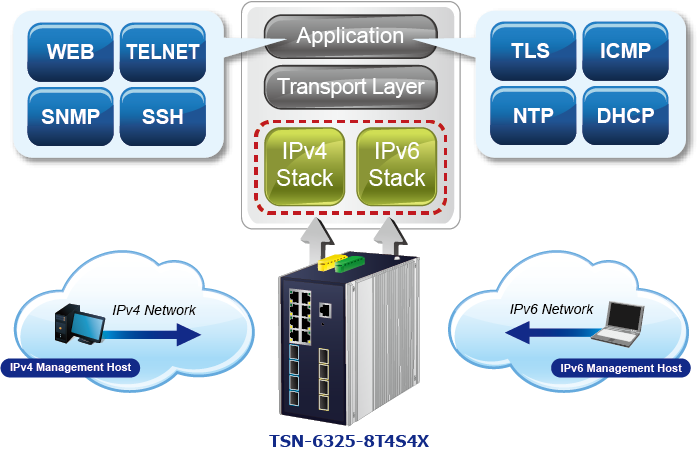

IPv6/IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, the TSN-6325-8T4S4X helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

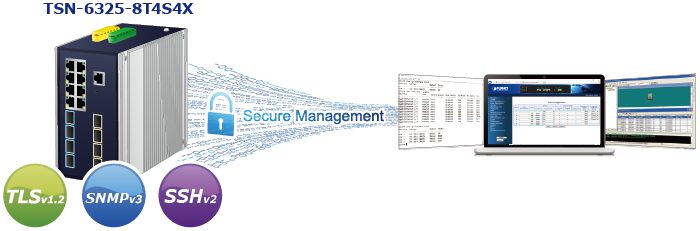

Efficient Management

For efficient management, the TSN-6325-8T4S4X is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the TSN-6325-8T4S4X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.



Powerful Network Security

The TSN-6325-8T4S4X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The TSN-6325-8T4S4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Excellent Traffic Control

The TSN-6325-8T4S4X is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.



Intelligent SFP Diagnosis Mechanism

The TSN-6325-8T4S4X supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.





High Availability Mesh Networking Solution for Big Data System

To improve the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the TSN-6325-8T4S4X offers up to 116Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km.

The TSN-6325-8T4S4X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-6325 DIN-rail series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

Layer 3 VLAN Routing

With the built-in, robust Layer 3 routing protocols, the TSN-6325-8T4S4X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The TSN-6325-8T4S4X, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink.

Physical Port

  • 8 10/100/1000BASE-T RJ45 copper ports
  • 4 1000/2500BASE-X SFP slots for SFP type auto detection
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-X and 2500BASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup



Industrial Hardened Design

  • Dual power input, redundant power with reverse polarity protection
    • DC 9 to 48V input or AC 24V input
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • DIN-rail and wall-mountable designs
  • IP30 aluminum case
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Digital Input and Digital Output

  • 2 digital input (DI)
  • 2 digital output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap



Time Sensitive Networking

  • High Precision Time Synchronization
    • IEEE1588 (Time Stamping)
    • 802.1AS-Rev gPTP default profile
  • Shapers
    • 802.1Qbv Enhancements for Scheduled Traffic
    • 802.1Qch (Cyclic Queuing and Forwarding)
  • TSN Stream Policing
    • 802.1Qci (Per Stream Filtering and Policing)
  • Redundancy
    • 802.1CB FRER for seamless redundancy
    • Also standard Linear and Ring protection
  • Delay Reduction
    • IEEE 802.1Qbu Frame Preemption,
    • IEEE 802.3br Interspersing Express Traffic (IET)



Layer 3 IP Routing Features

  • IPv4 dynamic routing protocol supports RIPv2 and OSPFv2 and IPv6 OSPFv3
  • IPv6 dynamic routing protocol supports OSPFv3
  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
    • Broadcast/Multicast/Unknown unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 8 trunk groups, with 16 ports for each trunk
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Link Layer Discovery Protocol (LLDP)
  • Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Supports G.8032 ERPS (Ethernet Ring Protection Switching)
  • IEEE 1588v2 PTP (Precision Time Protocol)
  • Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Enhancements for Scheduled Traffic  and IEEE 802.1CB Seamless Redundancy



Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • ToS/DSCP/IP Precedence of IPv4/Ipv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing  on the switch port
  • DSCP remarking
  • Voice VLAN



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based/MAC-based network access authentication
    • IEEE 802.1x authentication with guest VLAN
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ users access authentication
    • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List (ACL)
  • Source MAC/IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console and Telnet Command Line Interface
    • HTTP web switch management
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMPv3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • DHCP Functions:
    • DHCP Relay
    • DHCP Option82
    • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Network Diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • ICMPv6/ICMPv4 remote ping
  • SMTP/Syslog remote alarm
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET UNI-NMS (Universal Network Management) and CloudViewer app for deployment management
Hardware Specifications
Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Port4 1000/2500BASE-X SFP portsslot interfaces (Ports -9 to and Port-12)
Compatible with 1000BASE-X and 2500BASE-X SFP transceiver
SFP+ Ports4 10GBASE-SR/LR SFP+ slots
Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default

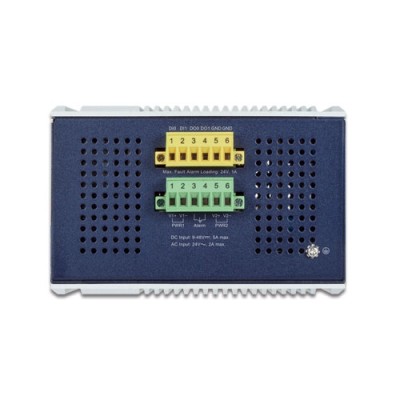

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)2 digital input:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO)2 digital output:
Open collector to 24VDC, 100mA
EnclosureIP30 aluminum case
InstallationDIN-rail or wall mounting
SDRAM2048Mbytes
Flash Memory64Mbytes
Dimensions (W x D x H)86 x 135 x 152 mm
Weight1,597g
Power RequirementsDC 9~48V, 5A max.
AC 24V, 2A max.
Power ConsumptionDC input:
Max. 16.8 watts/57.3BTU (system on)
Max. 38.2 watts/130.3BTU (Full loading)
AC 24V input:
Max. 21.7 watts/74BTU (system on)
Max. 30 watts/102.3BTU (Full loading)
ESD Protection5KV DC
Surge Protection6KV DC
LED IndicatorsSystem:
Power 1 (Green), Power 2 (Green)
Fault Alarm (Red)
Ring (Green), Ring Owner (Green)
DIDO (Red)
Per 10/100/1000T RJ45 Port:
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
Per SFP Port:
1G/2.5Gbps LNK/ACT (Green)
Per SFP+ Port:
1G/2.5Gbps LNK/ACT (Green)
10Gbps LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric116Gbps/non-blocking
Throughput86.3Mpps@64Bytes
Address Table32K entries, automatic source address learning and aging
Shared Data Buffer32Mbits
Jumbo Frame10K bytes
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Layer 3 Functions
IP InterfacesMax. 128 VLAN interfaces
Routing TableMax. 512 static route entries
Max. 3072 routing table entries
Routing ProtocolsIPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
Mirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLANIEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
GVRP
Up to4K VLAN groups, out of 4095 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
8 trunk groups with 16 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth ControlPer port bandwidth control
Ingress: 10Kbps~13128Mbps
Egress: 10Kbps~13128Mbps
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports Major ring and sub-ring
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
PTP Master
PTP Slave
Boundary clock
Peer-to-peer transparent clock
End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching:
Port number
802.1p priority
802.1Q VLAN tag
DSCP/ToS field in IP packet
Time-Sensitive Networking ProtocolsHigh Precision Time Synchronization
IEEE1588 (Time Stamping)
802.1AS-Rev gPTP default profile
Shapers
802.1Qbv (Time-aware Scheduling)
802.1Qch (Cyclic Queuing and Forwarding)
TSN Stream Policing
802.1Qci (Per Stream Filtering and Policing)
Redundancy
802.1CB ( Frame Replication and Elimination for Redundancy for seamless redundancy)
Also standard Linear and Ring protection
Delay Reduction
EEE 802.1Qbu Frame Preemption
IEEE 802.3br Interspersing Express Traffic (IET)
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries
SecurityPort security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A
CE:
EN55032
EN55035
Stability TestingEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.1AS - Timing and Synchronization for Time-sensitive Applications
IEEE 802.1Qbu Frame Preemption,
IEEE 802.3br Interspersing Express Traffic (IET)
IEEE 802.1Qci Per-Stream Filtering and Policing (PSFP)
IEEE 802.1Qbv Enhancements for Scheduled Traffic
IEEE 802.1CB Frame Replication and Elimination for Reliability (FRER)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring
Environment
Operating-40 ~ 75 degrees C
Storage-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2022-12-021.0TSN-6325-8T4S4X



Quick Guide

DateVersionDescriptionDownload
2024-04-121.1Release for PSTI version.
2022-11-041.0Initial release.



User's Manual

DateVersionDescriptionDownload
2023-02-031.0Initial release.



EC Declaration

DateVersionDescriptionDownload
2023-09-201.0EC Declaration.
