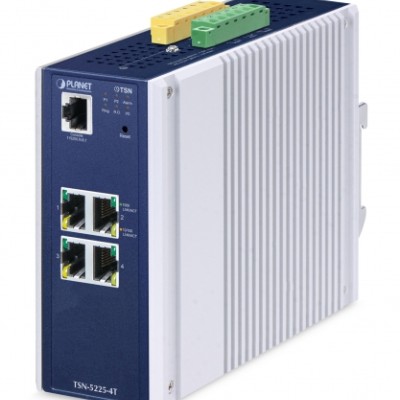

PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch

PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
PLANET TSN-5225-4T Industrial L2+ 4-Port 10/100/1000T Managed TSN Ethernet Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: TSN-5225-4T
  • Βαρος: 1.42kg
868,52€
Χωρίς ΦΠΑ: 700,42€

Innovative Industrial TSN Ethernet Switch Guarantees Delivery of Time-Sensitive Data

PLANET TSN-5225-4T is a brand-new Industrial-grade Layer 2+ Time-Sensitive Networking (TSN) Managed Ethernet Switch which features 4 10/100/1000BASE-T RJ45 ports in a rugged IP30 metal case for stable operation in heavy environments, and addresses all levels of the industrial automation network, from the field bus to the factory backbone. And it guarantees end-to-end transmission of high-priority traffic with extremely low latency.

The TSN-5225-4T can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. It also allows either DIN-rail or wall mounting for efficient use of cabinet space.



Building a Sustainable Future for Innovation with ESG Principles

The TSN-5225-4T can help businesses achieve more efficient operations and production while reducing energy consumption and resource wastage, thereby enhancing both the economic and social benefits of the enterprise, aligning with the core values of ESG. For instance, the application of the TSN-5225-4T in industrial automation enables precise control of the manufacturing process, reducing energy consumption and waste generation. Similarly, their use in transportation can optimize logistics routes, mitigating issues such as carbon emissions and traffic congestion.



A Simplified Pathway to a TSN-compatible Infrastructure

PLANET TSN-5225-4T provides real-time, low-latency network communication for industrial automation, 5G NR networks, Industry 4.0, 4K/8K video streaming, and VR/AR gaming industry by using the Time-sensitive Networking (TSN) technology and IEEE 1588 Precision Time Protocol (PTPv2) for time synchronization on all ports.

The TSN-5225-4T supports TSN IEEE standards needed for a complete real-time communication solution. These include IEEE 802.1AS-REV profile for time synchronization, IEEE 802.1Qbv for Enhancements for Scheduled Traffic, IEEE 802.1Qbu Frame Preemption, IEEE 802.3br Interspersing Express Traffic (IET), IEEE 802.1Qci for per-stream filtering and policing (PSFP) and IEEE 802.1CB frame replication and elimination for reliability (FRER) for seamless redundancy.

The TSN-5225-4T eliminates the need for separating information technology (IT) and operational technology (OT) Ethernet networks, providing a more ubiquitous approach to synchronization and precision timing for today’s industrial automation systems.

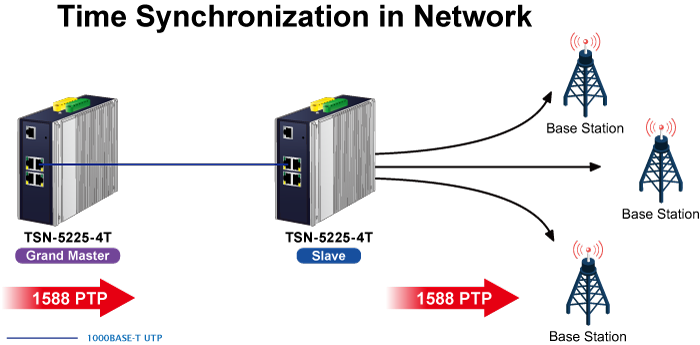

1588 Time Protocol for Industrial Computing Networks

The TSN-5225-4T features IEEE 1588v2 PTP (Precision Time Protocol) with hardware-based time stamping for precise time synchronization of networks, and support for Boundary Clock, End to End and Peer to Peer Transparent Clock modes. It is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

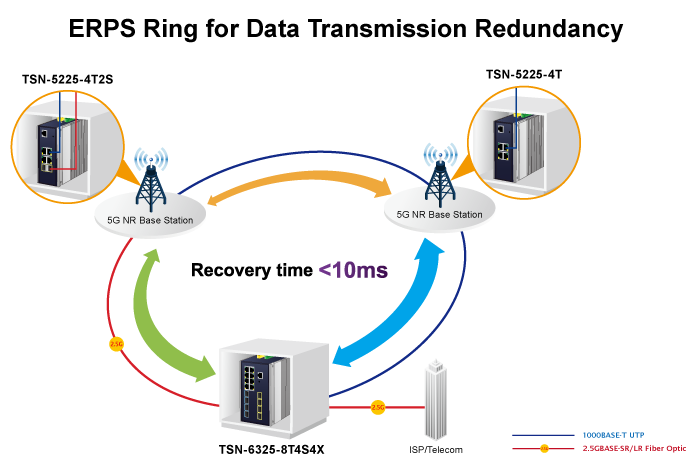

Redundant Ring, Fast Recovery for Critical Network Applications

The TSN-5225-4T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 10ms.

Robust Layer 2 Features

The TSN-5225-4T can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the TSN-5225-4T allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity features that virtually need no effort and cost to have include the protection of the switch management and the enhanced security of the mission-critical network. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the TSN-5225-4T can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

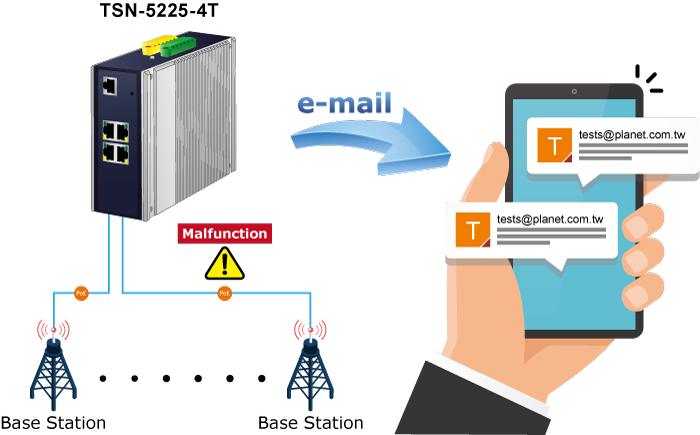

SMTP/SNMP Trap Event Alert

The TSN-5225-4T provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

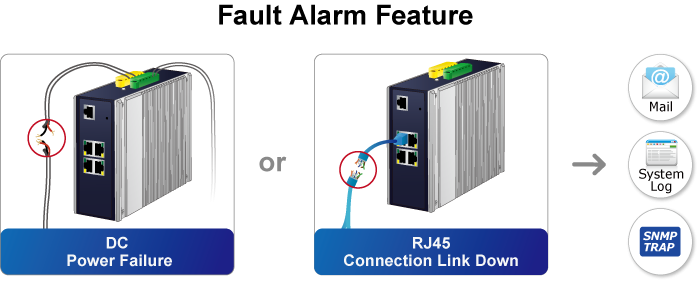

Effective Alarm Alert for Better Protection

The TSN-5225-4T supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource.

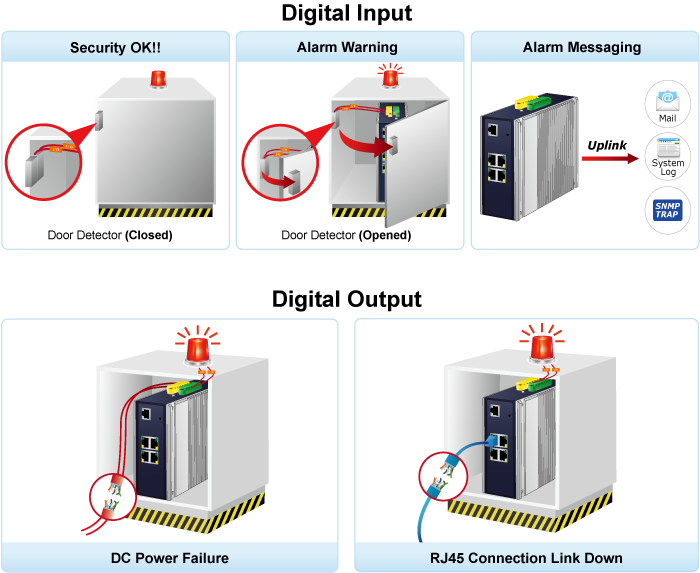

Digital Input and Digital Output for External Alarm

The TSN-5225-4T supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the TSN-5225-4T’s port shows link down, link up or power failure.

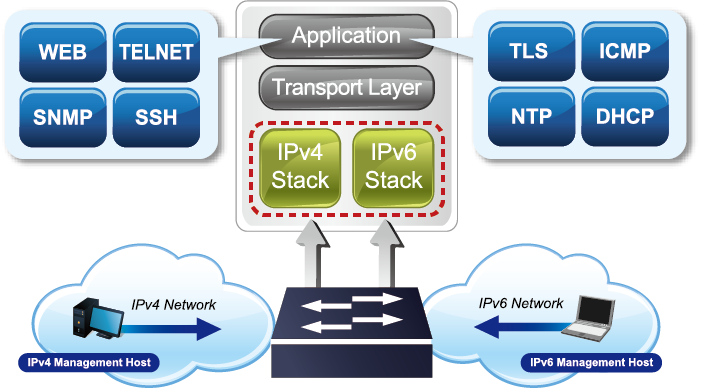

IPv6/IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, the TSN-5225-4T helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Efficient Management

For efficient management, the TSN-5225-4T is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the TSN-5225-4T offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.



Powerful Network Security

The TSN-5225-4T offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The TSN-5225-4T also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Excellent Traffic Control

The TSN-5225-4T is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.



Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the TSN-5225-4T not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.



Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and NMSViewerPro/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or NMSViewerPro/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.

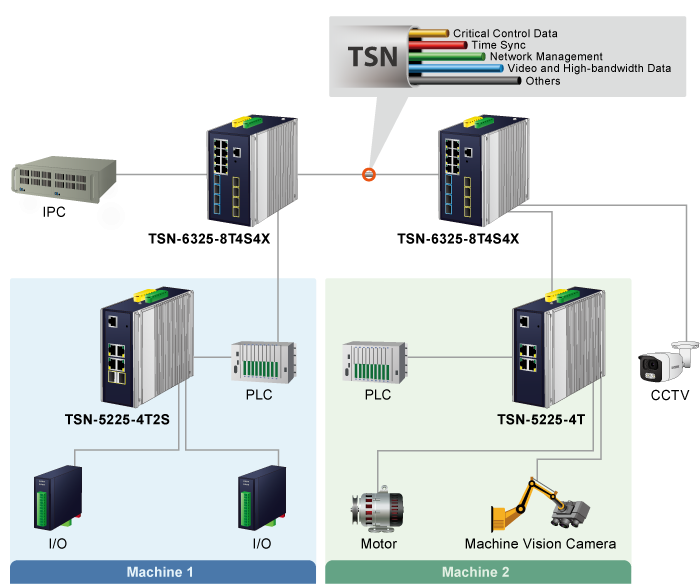

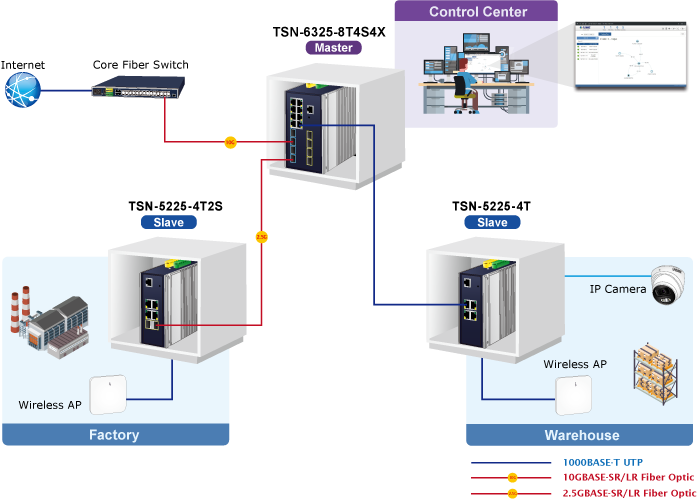

TSN Technology for Efficient Real-time Monitoring of Factory Production Processes

PLANET TSN-5225-4T, based on its advanced Time-Sensitive Networking (TSN) technology and utilizing IEEE 1588 Precision Time Protocol (PTPv2) for time synchronization on all ports, provides an efficient solution. Leveraging real-time data monitoring and low-latency data transmission advantages, it can be used for real-time monitoring and management of factory production processes. This system harnesses the performance of TSN to enhance production efficiency, optimize resources, and enable quick response to faults, making it a highly promising solution.

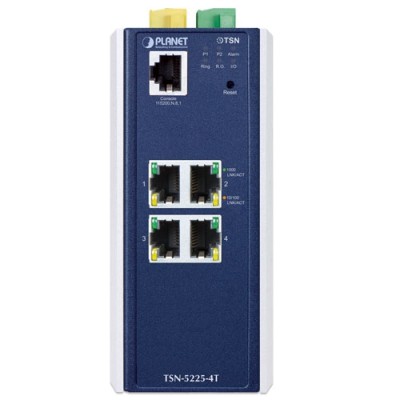

Physical Port

  • 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • One RJ45 console interface for basic management and setup



Industrial Case and Installation

  • Dual power input, redundant power with reverse polarity protection
    • DC 9 to 48V input or AC 24V input
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Supports 5000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Digital Input and Digital Output

  • 2 digital input (DI)
  • 2 digital output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap



Time Sensitive Networking

  • High Precision Time Synchronization
    • IEEE1588 (Time Stamping)
    • 802.1AS-Rev gPTP default profile
  • Shapers
    • 802.1Qbv Enhancements for Scheduled Traffic
    • 802.1Qch (Cyclic Queuing and Forwarding)
  • TSN Stream Policing
    • 802.1Qci (Per Stream Filtering and Policing)
  • Redundancy
    • 802.1CB FRER for seamless redundancy
    • Also standard Linear and Ring protection
  • Delay Reduction
    • IEEE 802.1Qbu Frame Preemption,
    • IEEE 802.3br Interspersing Express Traffic (IET)



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
    • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Supports provider Bridging (VLAN Q-in-Q, IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Port Isolation
    • MAC-based VLAN
    • Protocol-based VLAN
    • Voice VLAN
    • VLAN Translation
    • GVRP
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum2 trunk groups with 4 ports per trunk group
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS/DSCP/IP precedence
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • raffic-policing on the switch port
  • DSCP remarking
  • Voice VLAN



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • Multicast VLAN Registration (MVR) support



Security

  • Authentication
    • IEEE 802.1x Port-based/MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS/TACACS+ users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console/Telnet Command Line Interface
    • Web switch management
    • SNMP v1, v2c, and v3 switch management
    • SSHv2 and TLSv1.2 secure access
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Configuration upload/download through HTTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Relay
  • DHCP Option82
  • DHCP Server Mode support
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Network Diagnostic
    • ICMPv6/ICMPv4 Remote Ping
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface Link up and Link down notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS comes with NMSViewerPro and CloudViewerPro applications for deployment management
Hardware Specifications
Copper Ports4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default

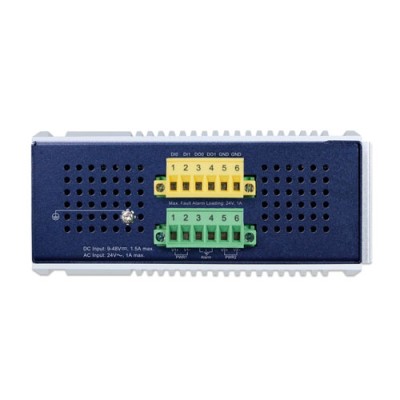

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)2 digital input:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO)2 digital output:
Open collector to 24VDC, 100mA
EnclosureIP30 aluminum case
InstallationDIN-rail or wall mounting
SDRAM1024Mbytes
Flash Memory64Mbytes
Dimensions (W x D x H)60 x 135 x 135 mm
Weight962g
Power RequirementsDC 9~48V, 1.5A max.
AC 24V, 1A max.
Power ConsumptionDC input:
Max. 8.36 watts/28.53BTU (system on)
Max. 9.89 watts/33.75BTU (Full loading)
AC 24V input:
Max. 6.2 watts/21.16BTU (system on)
Max. 7.9 watts/26.96BTU (Full loading)
ESD Protection5KV DC
Surge Protection6KV DC
LED IndicatorsSystem:
Power 1 (Green), Power 2 (Green)
Fault Alarm (Red)
Ring (Green), Ring Owner (Green)
DIDO (Red)
Per 10/100/1000T RJ45 Port:
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric8Gbps/non-blocking
Throughput5.95Mpps@64Bytes
Address Table8K entries, automatic source address learning and aging
Shared Data Buffer32Mbits
Jumbo Frame10K bytes
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Layer 3 Functions
IP InterfacesMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
Mirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLANIEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
GVRP
Up to 4K VLAN groups, out of 4096 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
Maximum 2 trunk groups with 4 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
BPDU Guard, BPDU filtering and BPDU transparent
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth ControlPer port bandwidth control
Ingress: 100Kb~3276Mbps
Egress: 100Kb~3281Mbps
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time < 50ms @ 16 nodes
Supports Major ring and sub-ring
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
PTP Master
PTP Slave
Boundary clock
Ordinary Clock
Peer-to-peer transparent clock
End-to-end transparent clock
QoSIngress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification:
IEEE 802.1p CoS
IP TOS / DSCP / IP Precedence
IP TCP/UDP port number
Typical network application
Traffic-policing policies on the switch port
DSCP remarking
Time-Sensitive Networking ProtocolsHigh Precision Time Synchronization:
IEEE1588 (Time Stamping)
802.1AS-Rev gPTP default profile
Shapers:
802.1Qbv (Time-aware Scheduling)
802.1Qch (Cyclic Queuing and Forwarding)
TSN Stream Policing:
802.1Qci (Per Stream Filtering and Policing)
Redundancy:
802.1CB ( Frame Replication and Elimination for Redundancy for seamless redundancy)
Also standard Linear and Ring protection
Delay Reduction:
IEEE 802.1Qbu Frame Preemption,
IEEE 802.3br Interspersing Express Traffic (IET)
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries
SecurityPort security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET NMS
PLANET NMSViewerPro/CloudViewerPro
Event ManagementRemote syslog
Local system log
SMTP
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A
CE:
EN55032
EN55035
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 1588 PTPv2
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.1AS - Timing and Synchronization for Time-sensitive Applications
IEEE 802.1Qbu Frame Preemption,
IEEE 802.3br Interspersing Express Traffic (IET)
IEEE 802.1Qci Per-Stream Filtering and Policing (PSFP)
IEEE 802.1Qbv Enhancements for Scheduled Traffic
IEEE 802.1CB Frame Replication and Elimination for Reliability (FRER)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
Operating-40 ~ 75 degrees C
Storage-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-04-031.0TSN-5225-4T



Quick Guide

DateVersionDescriptionDownload
2024-03-061.0Initial release.



User's Manual

DateVersionDescriptionDownload
2024-08-271.0Initial Release.
