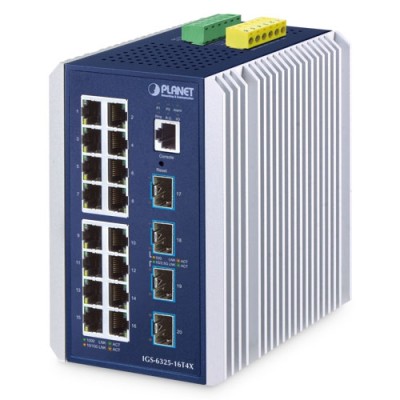

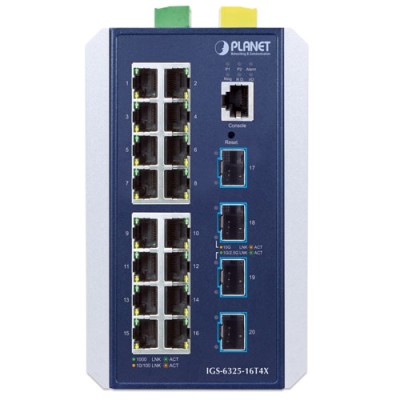

PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch

PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
PLANET IGS-6325-16T4X Industrial L3 16-Port 10/100/1000BASE-T + 4-Port 10GBASE-X SFP+ Managed Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IGS-6325-16T4X
  • Βαρος: 2.15kg
  • Διαστασεις: 10.70 x 9.60 x 15.20
1.353,73€
Χωρίς ΦΠΑ: 1.091,72€

10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

PLANET IGS-6325-16T4X is a powerhouse in industrial networking designed to optimize performance. This Layer 3 managed switch boasts a high-density combination of copper and fiber optic interfaces, setting the stage for superior connectivity. With 16 10/100/1000BASE-T RJ45 ports and 4 10GBASE-SR/LR SFP+ ports, it's equipped to handle diverse demands. Housed in a rugged IP30 metal case with DIN-rail compatibility, it thrives in extreme environments spanning from -40 to 75 degrees Celsius.

Featuring a 10Gbps uplink, the IGS-6325-16T4X seamlessly manages substantial data loads within a secure topology. Whether connecting to an industrial backbone or high-capacity servers, its prowess is unmatched. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 112Gbps. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.

From demanding conditions to intensive data streams, the IGS-6325-16T4X emerges as the ultimate choice for enhancing industrial network performance.



Flexible and Extendable 10Gb Ethernet Solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6325-16T4X supports triple speed and 10GBASE-SR/LR, 2500BASE-X or 1000BASE-SX/LX, providing broad bandwidth and powerful processing capacity. With its 2-port, 10G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.



Intelligent SFP Diagnosis Mechanism

The IGS-6325-16T4X supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

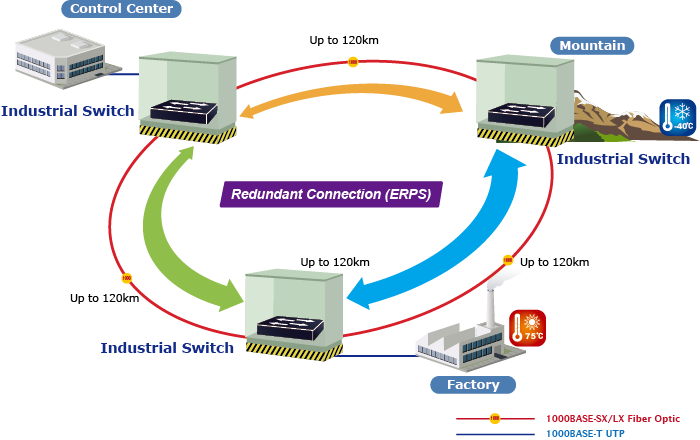

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6325-16T4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.

Environmentally Hardened Design

With IP30 aluminum case, the Industrial Managed Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the Industrial Managed Switch can be placed in almost any difficult environment.



Network with Cybersecurity Helps Minimize Security Risks

The IGS-6325-16T4X comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLS v1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data over multiple long distance fiber optical connections to customer's critical equipment in a business network, the cybersecurity feature of the IGS-6325-16T4X protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-6325-16T4X can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

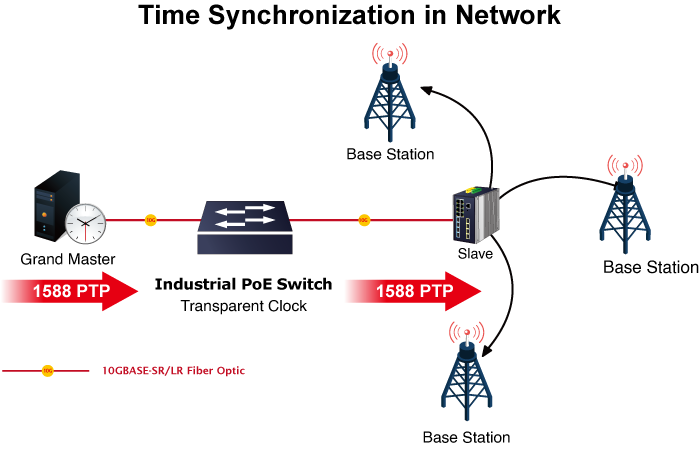

1588 Time Protocol for Industrial Computing Networks

The IGS-6325-16T4X is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Redundant Power to Ensure Continuous Operation

The IGS-6325-16T4X possesses dual DC 9~48V and AC 24V power supply utilized as redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

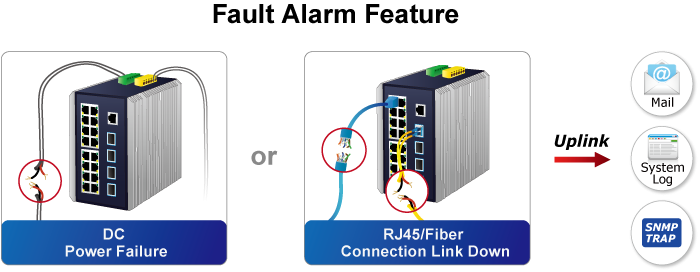

Effective Alarm Alert for Better Protection

The IGS-6325-16T4X supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource.

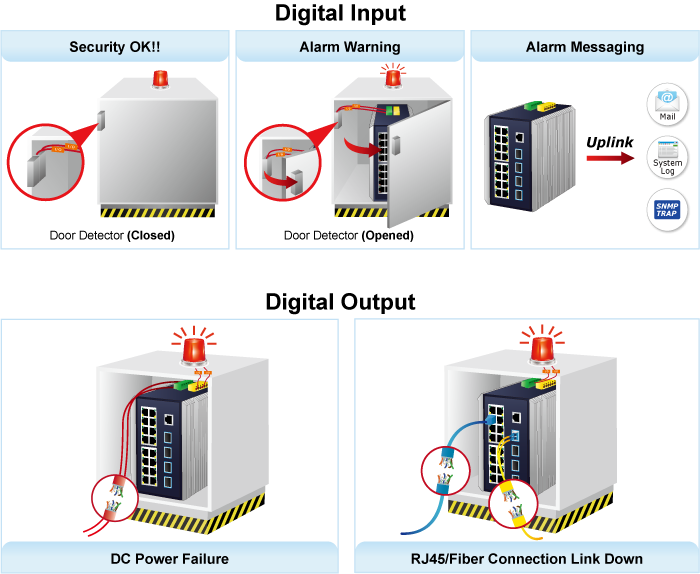

Digital Input and Digital Output for External Alarm

The IGS-6325-16T4X supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-6325-16T4X port shows link down, link up or power failure.

Solution for IPv6 Networking

By supporting IPv6/IPv4 dual stack and plenty of management functions with easy and friendly-user interfaces, the Industrial Managed Switch is the best choice for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. It also helps the SMBs to step in the IPv6 era with the lowest investment but not necessary to replace the network facilities while the ISPs construct the IPv6 FTTx edge network.

IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the Industrial Managed Switch not only provides ultra high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

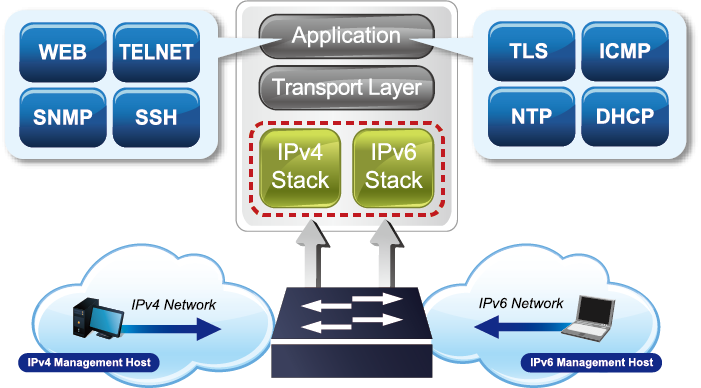

IPv6/IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, the IGS-6325-16T4X helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.



Layer 3 Routing Support

The IGS-6325-16T4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Robust Layer 2 Features

The IGS-6325-16T4X can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-6325-16T4X allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.



User-friendly Management Interfaces

For efficient management, the IGS-6325-16T4X is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the IGS-6325-16T4X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.



Powerful Network Security

The IGS-6325-16T4X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The IGS-6325-16T4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Excellent Traffic Control

The IGS-6325-16T4X is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the Industrial Managed Switch can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.



Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.

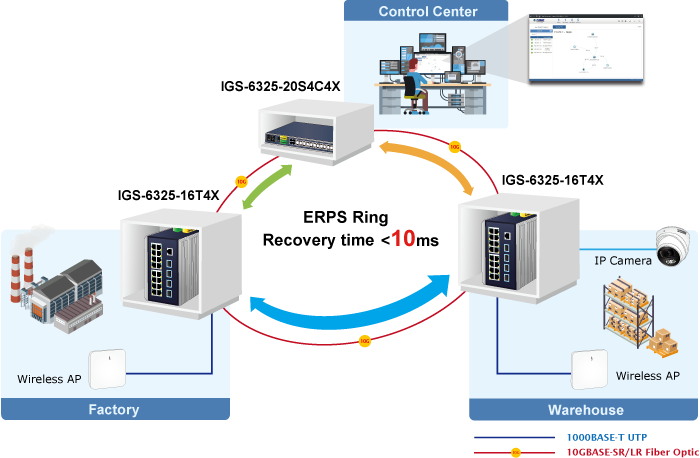

High Availability Mesh Networking Solution for Big Data System

To improve the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the IGS-6325-16T4X offers up to 52Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km.

The IGS-6325-16T4X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-6325-16T4X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

Layer 3 VLAN Routing

With the built-in, robust Layer 3 routing protocols, the IGS-6325-16T4X ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 4K dynamic routing entries. The IGS-6325-16T4X, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink.

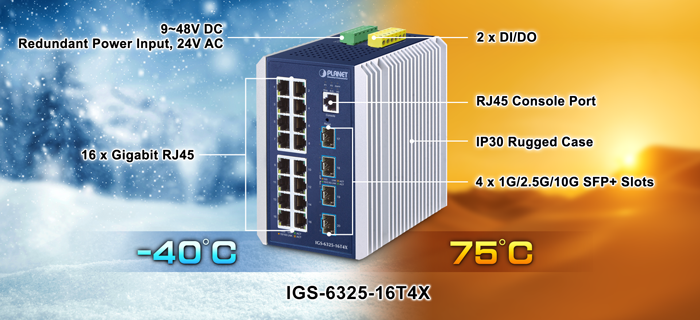

Physical Port

  • 16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP
  • One RJ45-to-RS232 console interface for basic management and setup



Industrial Protocol

  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode



Industrial Hardened Design

  • Dual power input, redundant power with reverse polarity protection
    • DC 9 to 48V input or AC 24V input
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • DIN-rail and wall-mountable designs
  • IP30 aluminum case
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Digital Input and Digital Output

  • 2 Digital Input (DI)
  • 2 Digital Output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap



Layer 3 IP Routing Features

  • IP dynamic routing protocol supports RIP, OSPFv2 and OSPFv3
  • Supports maximum 128 static routes and route summarization
  • IPv4 dynamic routing protocol supports OSPFv2
  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
    • Broadcast/Multicast/Unknown unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Up to 4K VLANs groups, out of 4095 VLAN IDs
    • Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 10 trunk groups, with 16 ports for each trunk
    • Up to 80Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Link Layer Discovery Protocol (LLDP)
  • Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Supports G.8032 ERPS (Ethernet Ring Protection Switching)
  • IEEE 1588 and Synchronous Ethernet network timing



Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • ToS/DSCP/IP Precedence of IPv4/IPv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing  on the switch port
  • DSCP remarking
  • Voice VLAN



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based/MAC-based network access authentication
    • IEEE 802.1x authentication with guest VLAN
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ users access authentication
    • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List (ACL)
  • Source MAC/IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console and Telnet Command Line Interface
    • HTTP web switch management
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • DHCP Relay
  • DHCP Option 82
  • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Network Diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    • ICMPv6/ICMPv4 remote ping
  • SMTP/Syslog remote alarm
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET UNI-NMS (Universal Network Management) and CloudViewerPro app for deployment management
Hardware Specifications
Copper Ports16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports-
SFP+ Ports4 10GBASE-SR/LR SFP+ slot interfaces (Port-17 to Port-20)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
SDRAM512Mbytes
Flash Memory64Mbytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default

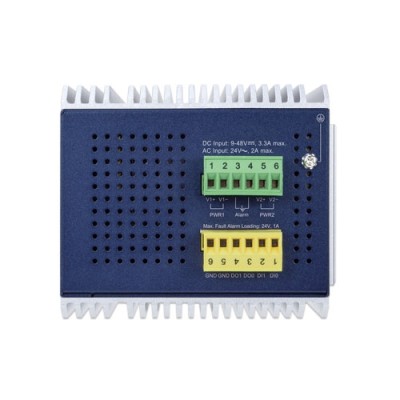

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)2 digital input:
Level 0: -24~2.1V (±0.1V)
Level 1: 2.1~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO)2 digital output:
Open collector to 24VDC, 100mA
InstallationDIN-rail or wall mounting
EnclosureIP30 aluminum case
Dimensions (W x D x H)96 x 107 x 152 mm
Weight1,503 g
Power RequirementsDC 9~48V, 3.3A max.
AC 24V, 2A max.
Power ConsumptionDC input:
Max. 14.4 watts/49.13 BTU (system on)
Max. 24 watts/81.89 BTU (Full loading)
AC 24V input:
Max. 13.5 watts/46.06 BTU (system on)
Max. 23 watts/78.48 BTU (Full loading)
ESD Protection6KV DC
Surge Protection4KV DC
LED IndicatorsSystem:
Power 1 (Green), Power 2 (Green)
Fault Alarm (Red)
Ring (Green), Ring Owner (Green)
DIDO (Red)
Per 10/100/1000T RJ45 Port:
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
Per SFP+ Port:
1G/2.5G LNK/ACT (Green)
10Gbps LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric112Gbps/non-blocking
Throughput83.3Mbps@64Bytes
Address Table32K entries, automatic source address learning and aging
Shared Data Buffer32Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame10K bytes
Layer 3 Functions
IP InterfacesMax. 128 VLAN interfaces
Routing TableMax. 128 routing entries
Max. 4K H/W routing table entries
Routing ProtocolsIPv4 RIPv1/v2 for dynamic routing
IPv4 OSPFv2 for dynamic routing
IPv4 hardware static routing
IPv6 OSPFv3 for dynamic routing
IPv6 hardware static routing
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLANIEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4096 VLAN IDs
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
BPDU Guard
Link AggregationIEEE 802.3ad LACP/static trunk
10 trunk groups with 16 ports per trunk group
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
RingSupports ERPS, and complies with ITU-T G.8032
Supports major ring and sub-ring
Recovery time < 10ms @ 3 units
Recovery time < 50ms @ 16 units
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching:
Port number
802.1p priority
802.1Q VLAN tag
DSCP/ToS field in IP packet
Bandwidth ControlPer port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries
SecurityPort security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewerPro app
Event ManagementRemote syslog
System log
SMTP
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 1350 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1058 RIP v1
RFC 2453 RIP v2
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2740 OSPF v3
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2023-11-031.5IGS-6325-16T4X



Firmware

DateVersionDescriptionDownload
2024-04-181.2112b240326Update -
Supports PSTI Act to enhance product security.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.



Quick Guide

DateVersionDescriptionDownload
2024-05-241.5Release for PSTI version.
2023-10-111.4Initial release.



User's Manual

DateVersionDescriptionDownload
2024-06-281.7Added PSTI function.
2023-09-151.6Initial release.
