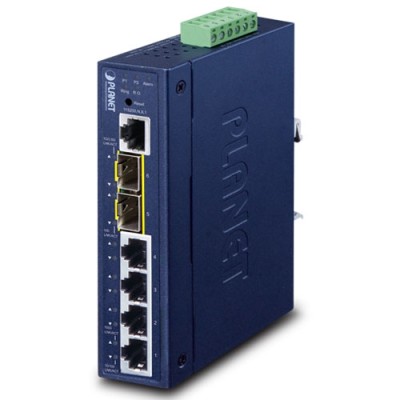

For Harsh and Space-limited Environments

PLANET IGS-5225-4T2S, the smallest, fully-managed Gigabit fiber switch for harsh environments, features 4 10/100/1000Mbps copper ports, 2 100/1000/2500X SFP ports and redundant power system in an IP30 rugged but compact-sized case. The IGS-5225-4T2S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. With such a slim enclosure, it does not need a big space to install. The switch features user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. It allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.

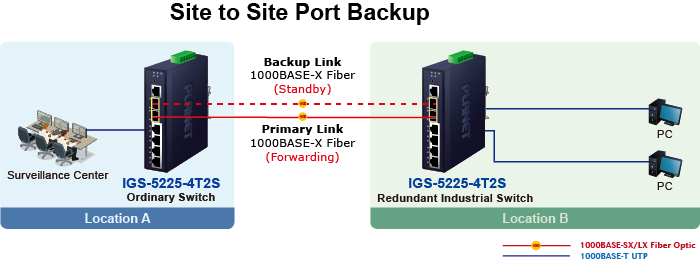

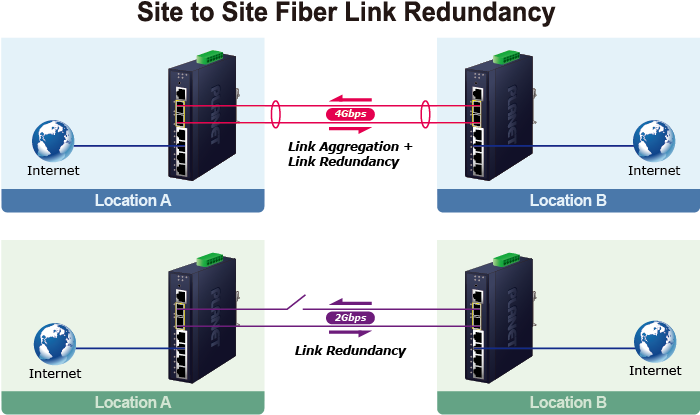

Port Backup Mode

Via the managed interface, the IGS-5225-4T2S can be configured for port backup. When in the port backup mode, it provides rapid copper/fiber redundancy of link for highly critical Ethernet applications. The port backup mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.



Network with Cybersecurity Helps Minimize Security Risks

The IGS-5225-4T2S comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGS-5225-4T2S protects the management and enhances the security of the mission-critical network without any extra deployment cost and effort.

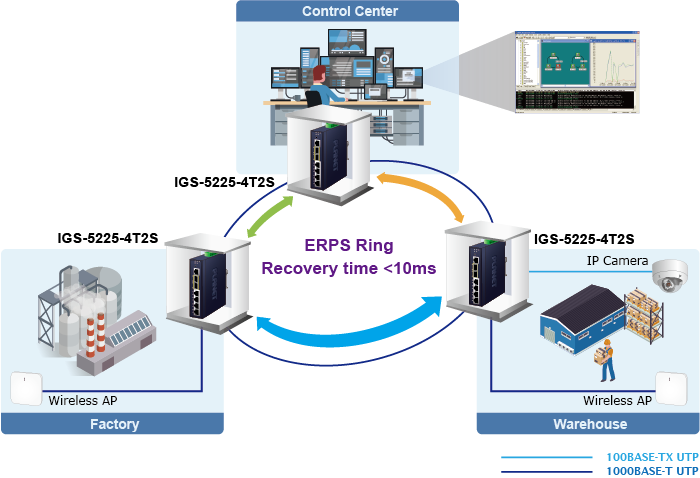

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5225-4T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.

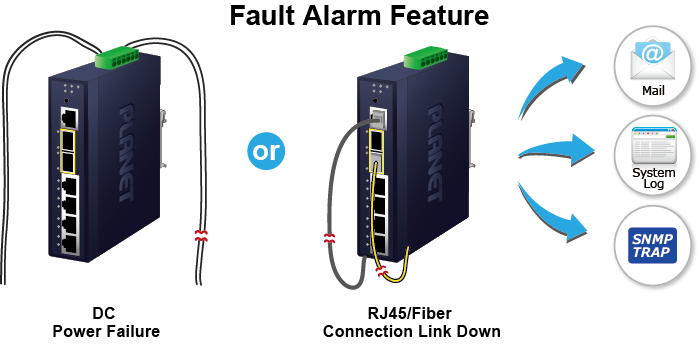

SMTP/SNMP Trap Event Alert and Fault Alarm

The IGS-5225-4T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. It supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.



Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the IGS-5225 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.



Robust Layer 2 Features

The IGS-5225 Series can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-5225 Series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.





Efficient Management

For efficient management, the IGS-5225-4T2S is equipped with CLI, Web GUI and SNMP management interfaces.

  •  With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
  •  For text-based management, it can be accessed via Serial console interface/Telnet/SSH.
  •  For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.



Powerful Security

The IGS-5225 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Intelligent SFP Diagnosis Mechanism

The IGS-5225 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

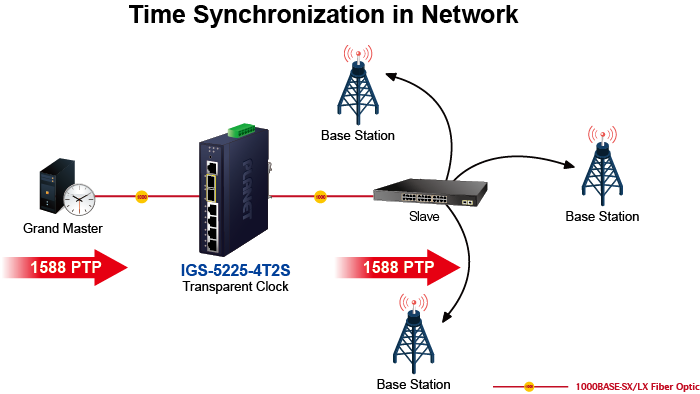

1588 Time Protocol for Industrial Computing Networks

The IGS-5225 series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.





Modbus TCP provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP Protocol, the IGS-5225 series can be easily integrated with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

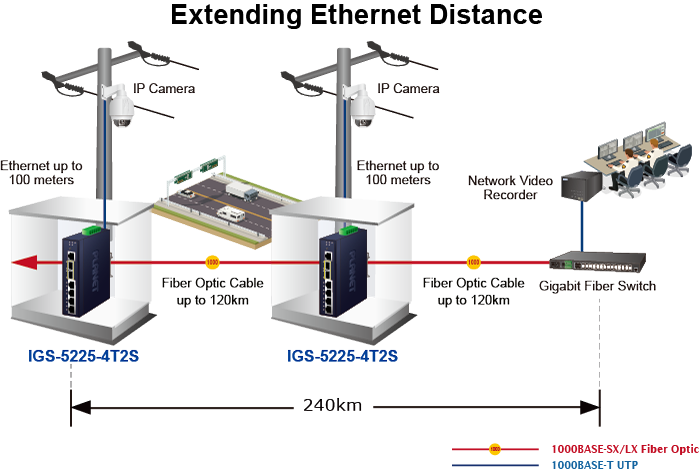

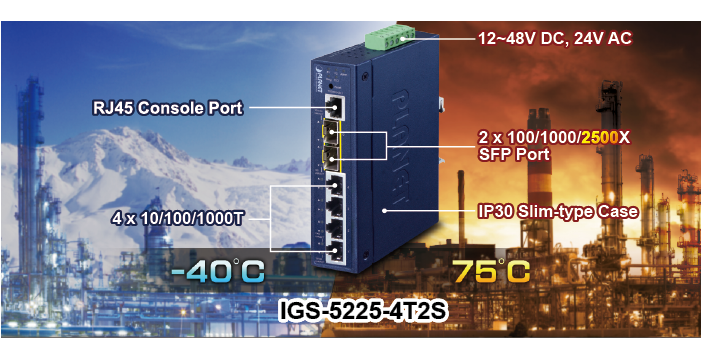

Model that Withstands Harsh Operation

The IGS-5225-4T2S is made to withstand any harsh operation in such environments as traffic control cabinets, factory floors, and indoor and outdoor locations where temperatures are extremely high or low. With a non-blocking design and compact size, the installation of the IGS-5225-4T2S is easy and helpful to build a Gigabit high-bandwidth switched network quickly.

Physical Port

  • 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 2 100/1000/2500BASE-X SFP slots for SFP type auto detection
  • One RJ45 console interface for basic management and setup



Industrial Case and Installation

  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 12~48V DC, redundant power with reverse polarity protection
  • 24V AC power input acceptable
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • Prevents packet loss with back pressure (half duplex) and IEEE 802.3x pause frame flow control (full duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider Bridging (IEEE 802.1ad VLAN Q-in-Q) support
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 4 trunk groups with 4 ports per trunk group
    • Up to 8Gbps bandwidth (duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
  • IEEE 802.3ah OAM



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS/DSCP/IP precedence
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1X Port-based/MAC-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS/TACACS+ users access authentication
    • Guest VLAN assigns clients to restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console/Telnet Command Line Interface
    • Web switch management
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • DHCP Relay and Option 82
  • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Network Diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    • ICMPv6/ICMPv4 remote IP ping
  • SMTP, Syslog and SNMP trap remote alarm
  • Local System Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS(Universal Network Management) system and CloudViewer for deployment management

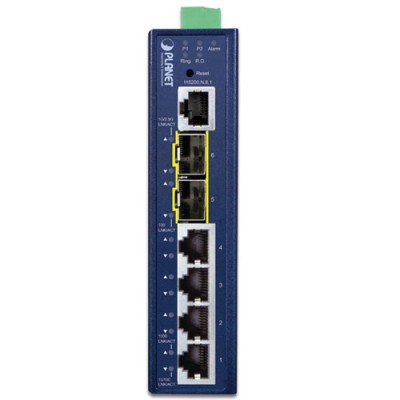

Hardware Specifications
Copper Ports4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots2 1000/2500BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6)
Compatible with 100BASE-FX SFP
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
ESD ProtectionAir 8KV, Contact 6KV
EnclosureIP30 metal case
InstallationDIN-rail kit and wall-mount kit

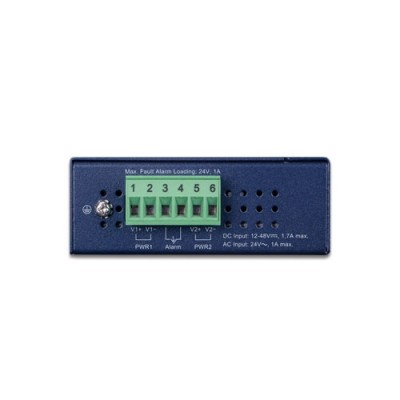

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
LED IndicatorSystem:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Red:)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000T RJ45 Ports:
10/100Mbps LNK/ACT (Amber)
1000 LNK/ACT (Green)
Per SFP Interface:
100 LNK/ACT (Amber)
1000/2500 LNK/ACT (Green)
Dimensions (W x D x H)32 x 87.8 x 135 mm
Weight442g
Power RequirementsDual 12~48V DC
24V AC
Power ConsumptionMax. 4.8 watts/16.4 BTU (Power on without any connection)
Max. 8.5 watts/29.2 BTU (Full loading)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric18Gbps/non-blocking
Throughput (packet per second)13.39Mpps@ 64 bytes packet
Address Table8K entries, automatic source address learning and aging
Shared Data Buffer4Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame9Kbytes
Layer 3 Function
IP InterfaceMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Layer 2 Function
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port MirroringTX/RX/both
Many to 1 monitor
Rmirror – Remote Switch Port Analyzer (Cisco RSPAN)
VLANIEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 4 trunk groups with 4 ports per trunk group
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups
MLD SnoopingIPv6 MLD (v1/v2) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups
Bandwidth ControlPer port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
RINGSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 units
Recovery time < 50ms @16 units
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries
SecurityPort Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Switch Management
Basic Management InterfacesConsole interface; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event ManagementRemote syslog
Local system log
SMTP
SNMP MIBsRFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 1588 PTPv2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2022-04-153.0IGS-5225-4T2S



Quick Guide

DateVersionDescriptionDownload
2024-02-061.9[Release for hardware version 3.0.]
Modify contents of Quick Guide.
2023-05-261.8[Release for hardware version 3.0.]
Modify contents of Quick Guide.
2022-04-121.6Release for hardware version 3.0.



User's Manual

DateVersionDescriptionDownload
2024-02-172.4[Release for hardware version 3.0]
Modify contents of user manual.
2024-01-122.3[Release for hardware version 3.0.]
Modify contents of user manual.
2022-06-102.2Release for hardware version 3.0.
