Cost-effective Full Solution Ideal for Hardened Environment
Designed to be installed in heavy industrial demanding environments, the IGS-4215-16T2S / IGS-4215-16T2S-U is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports, and 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-16T2S / IGS-4215-16T2S-U is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.
Environmentally Hardened Design
With the IP30 industrial case, the IGS-4215-16T2S / IGS-4215-16T2S-U provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-16T2S / IGS-4215-16T2S-U can be placed in almost any difficult environment.
Robust Protection
The IGS-4215-16T2S / IGS-4215-16T2S-U provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-4215-16T2S / IGS-4215-16T2S-U supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Robust Layer 2 Features
The IGS-4215-16T2S / IGS-4215-16T2S-U can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-16T2S / IGS-4215-16T2S-U allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

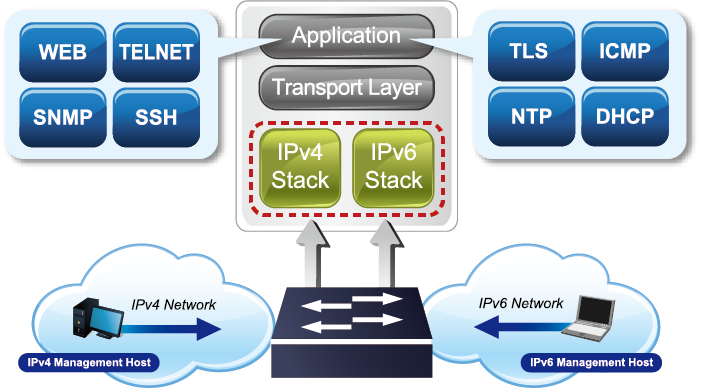

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the IGS-4215-16T2S / IGS-4215-16T2S-U helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.
Efficient Traffic Control
The IGS-4215-16T2S / IGS-4215-16T2S-U is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
User-friendly and Secure Management
The IGS-4215-16T2S / IGS-4215-16T2S-U comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data, the cybersecurity feature of the IGS-4215-16T2S / IGS-4215-16T2S-U protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.
Powerful Security
PLANET IGS-4215-16T2S / IGS-4215-16T2S-U offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows limiting the number of network devices on a given port.
Advanced Network Security
The IGS-4215-16T2S / IGS-4215-16T2S-U also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Remote Management Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.

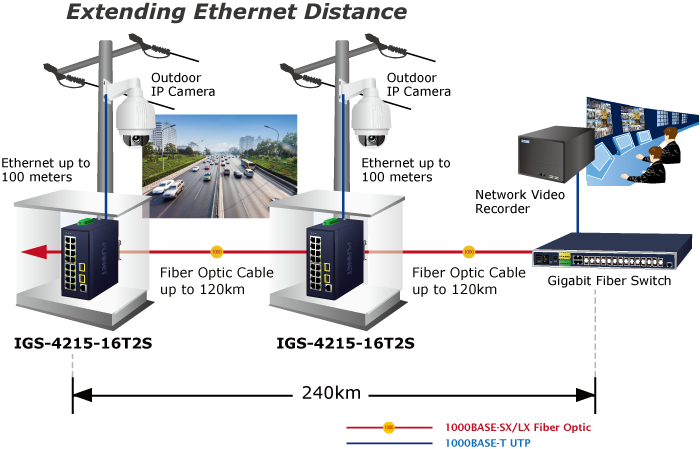

Flexibility and Long-distance Extension Solution

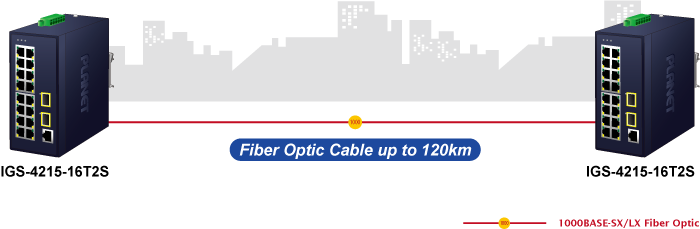

The two additional SFP slots built in the IGS-4215-16T2S / IGS-4215-16T2S-U support 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The IGS-4215-16T2S / IGS-4215-16T2S-U supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

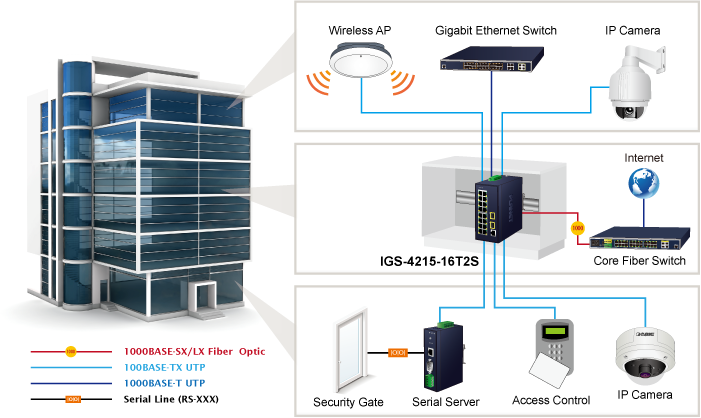

Industrial-grade Switch for Building Automation and Security
Suitable for buildings where security is strictly to be enforced, the IGS-4215-16T2S / IGS-4215-16T2S-U, with sixteen high-speed Gigabit Ethernet interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment.
Model that Withstands Harsh Operation and Extends Distance
The IGS-4215-16T2S / IGS-4215-16T2S-U is made to withstand any harsh operation in such environments as traffic control cabinets, factory floors, and indoor and outdoor locations where temperatures are extremely high or low. With a non-blocking design and compact size, the installation of the IGS-4215-16T2S / IGS-4215-16T2S-U is easy and helpful to build a Gigabit high-bandwidth switched network quickly.

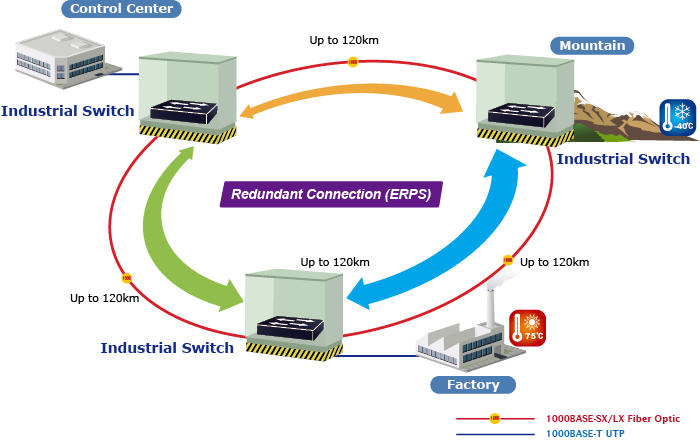

ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted
The IGS-4215-16T2S / IGS-4215-16T2S-U features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the IGS-4215-16T2S / IGS-4215-16T2S-U can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The IGS-4215-16T2S / IGS-4215-16T2S-U can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.

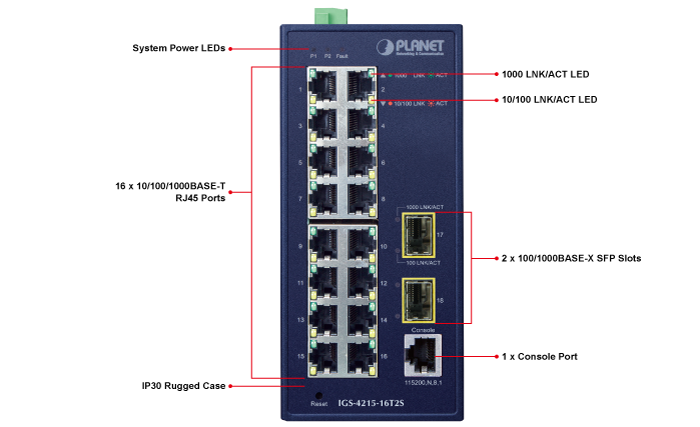

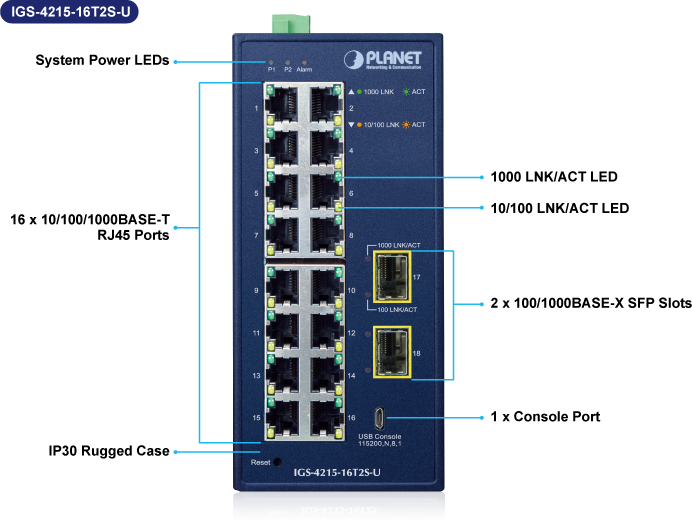

Physical Port
- 16-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
- 2 SFP interfaces, supporting 100/1000BASE-X SFP transceiver type auto detection
- 1-port RJ45 console for basic management and setup (IGS-4215-16T2S only)
- 1-port USB console for basic management and setup (IGS-4215-16T2S-U only)
Industrial Case and Installation
- Dual power input, redundant power with reverse polarity protection
- DC 12 to 48V input or AC 24V input (IGS-4215-16T2S only)
- DC 9 to 48V input or AC 24V input (IGS-4215-16T2S-U only)
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
- IP30 metal case
- DIN-rail and wall-mount designs
- Supports ESD 6KV DC Ethernet protection
- Supports -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
- Fanless design
Switching
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Layer 2 Features
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 256 VLAN groups, out of 4096 VLAN IDs
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Private VLAN (Protected port)
- Protocol-based VLAN
- Voice VLAN
- GVRP
- Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU Guard
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Up to 8 trunk groups
- Up to 8 ports per trunk group with 16Gbps bandwidth
- Provides port mirror (many-to-1)
- IPv6 MAC/VLAN/Multicast Address Table
- Loop protection to avoid broadcast loops
- Supports ERPS (Ethernet Ring Protection Switching)
Quality of Service
- Ingress/Egress Rate Limit per port bandwidth control
- Support 8 priority queues on all switch ports
- Traffic classification
- IEEE 802.1p CoS
- IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
- IP TCP/UDP port number
- Typical network application
- DSCP remarking
Multicast
- Supports IPv4 IGMP snooping v1, v2, v3
- Supports IPv6 MLD snooping v1, v2
- Querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security
- Storm Control support
- Broadcast/Multicast/Unicast
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Relay and DHCP Option 82
- RADIUS/TACACS+ users access authentication
- Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- MAC Security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- IP address access management to prevent unauthorized intruder
Management
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- IPv4/IPv6 Web switch management
- Console and telnet Command Line Interface
- SNMP v1 and v2c switch management
- SSHv2, TLSv1.2 and SNMP v3 secure access
- IPv6 IP address/NTP/DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
- Dual images
- User Privilege levels control
- Network Time Protocol (NTP)
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- Syslog remote alarm
- SNMP Management
- SNMP trap for interface link up and link down notification
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility for deployment management
- PLANET NMS system and CloudViewer for deployment management
- Network diagnostic
- SFP-DDM (Digital Diagnostic Monitor)
- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
- ICMPv6 / ICMPv4 remote ping
- Live remote checking is designed to make sure the devices are still connected
Hardware Specifications | |
---|---|
Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
Gigabit SFP Slots | 2 100/1000BASE-SX/LX/BX SFP interfaces |
Console | IGS-4215-16T2S:1 RJ45 serial port (115200,8, N, 1) IGS-4215-16T2S-U:1 Micro-USB female port (115200,8, N, 1) |
RAM | 128Mbytes |
Flash Memory | 16Mbytes |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
Power Requirements | IGS-4215-16T2S: Dual 12~48V DC 24V AC IGS-4215-16T2S-U: Dual 9~48V DC 24V AC |
Power Consumption | IGS-4215-16T2S: DC input: Max. 3.4 watts/11.6BTU (System on) Max. 12.5 watts/42.7BTU (Full loading) AC input: Max. 6 watts/20.5BTU (System on) Max. 15 watts/51.2BTU (Full loading) IGS-4215-16T2S-U: DC input: Max. 3.31 watts/11.3BTU (System on) Max.10.41 watts/35.5BTU (Full loading) AC input: Max. 3 watts/10.2BTU (System on) Max. 10 watts/34.1BTU (Full loading) |
Dimensions (W x D x H) | 66 x 107 x 152 mm |
Weight | IGS-4215-16T2S:813g IGS-4215-16T2S-U:829g |
Enclosure | IP30 metal case |
Installation | DIN-rail kit and wall-mount ear |
ESD Protection | 6KV DC |
LED | System Green: Power 1 Green: Power 2 Red: Power Fault Per 10/100/1000T RJ45 Ports Green: 1000 LNK/ACT Orange: 10/100 LNK/ACT Per SFP Interface Green: 1000 LNK/ACT Orange: 100 LNK/ACT |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 36Gbps (non-blocking) |
Switch Throughput@64 bytes | 26.79Mpps@ 64 bytes |
MAC Address Table | 8K entries |
Shared Data Buffer | 4.1Mbits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 10 Kbytes |
Layer 2 Functions | |
Port Mirroring | TX/RX/Both Many-to-1 monitor Up to 4 sessions |
VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
Link Aggregation | IEEE 802.3ad LACP and static trunk Cisco ether-channel (Static Trunk) Up to 8 trunk groups Up to 8 ports per trunk group with 16Gbps bandwidth |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
IGMP Snooping | IPv4 IGMP snooping v1, v2, v3 IGMP querier Up to 256 multicast groups |
MLD Snooping | IPv6 MLD snooping v1, v2, up to 256 multicast groups |
QoS | Ingress/Egress Rate Limit per port bandwidth control 8-level priority for switching Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Typical network application DSCP remarking |
Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries |
Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
MAC Security | IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries |
Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
Management Functions | |
Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer app |
Event Management | Remote/Local Syslog System log |
SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A EN 55032 EN 55035 ICES-003 issue 7 |
Certification | EN50121-4 |
Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 ITU G.8032 ERPS Ring |
Environment | |
Operating Temperature | -40 ~ 75 degrees C |
Storage Temperature | -40 ~ 85 degrees C |
Humidity | 5 ~ 95% (non-condensing) |
Datasheet
Date | Version | Description | Download |
---|---|---|---|
2023-04-14 | 1.2 | IGS-4215-16T2S-U | |
2023-04-14 | 1.2 | IGS-4215-16T2S | |
2020-01-10 | 1.0 | IGS-4215-16T2S |
