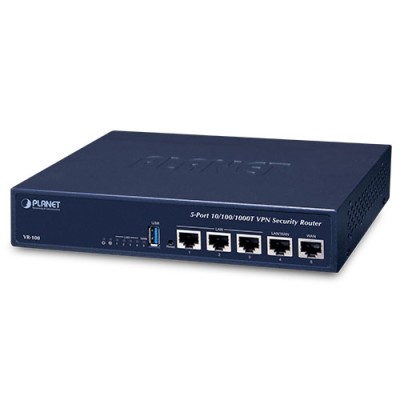

PLANET VR-100 5-Port 10/100/1000T VPN Security Router

PLANET VR-100 5-Port 10/100/1000T VPN Security Router
PLANET VR-100 5-Port 10/100/1000T VPN Security Router
PLANET VR-100 5-Port 10/100/1000T VPN Security Router
PLANET VR-100 5-Port 10/100/1000T VPN Security Router
PLANET VR-100 5-Port 10/100/1000T VPN Security Router
PLANET VR-100 5-Port 10/100/1000T VPN Security Router
PLANET VR-100 5-Port 10/100/1000T VPN Security Router
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: VR-100
  • Βαρος: 1.35kg
  • Διαστασεις: 13.50 x 21.52 x 4.26
213,49€
Χωρίς ΦΠΑ: 172,17€

Powerful Network  Security Solution

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the VR-100 VPN Security Router, an all-in-one appliance that carries several main categories across your network security deployments: Cybersecurity, SPI firewall security protection, policy auditing (Content Filtering, VPN Tunnel and MAC/IP Filtering), captive portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.



Authentication with Simplified Management

The VR-100 provides a built-in captive portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-100 can offer a secure network with easy installation for your business.

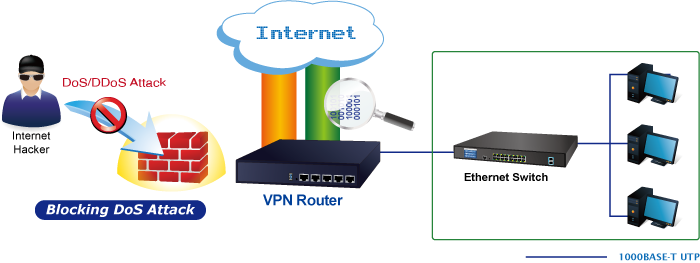

Excellent Ability in Threat Defense

The VR-100 built-in SPI (stateful packet inspection) firewall and anti-DoS/DDoS protection provide high efficiency and extensive protection for your network. Virtual server and DMZ functions can let you setup servers in the Intranet and still provide services to the Internet users.

Ideal VPN Security Router Solution for SMBs

The VR-100 provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-100 makes the connection solid secure, more flexible, and more capable.



The VR-100 supports many popular security features including content filterring to block specific URL, MAC/IP filtering, outbound load-balancing and more. Furthermore, it provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the Dual-WAN interfaces enable the VR-100 to support outbound load balancing and WAN fail-over features.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-100 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-100 offers an easy-to-use, platform independent management and configuration facility. The VR-100 supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

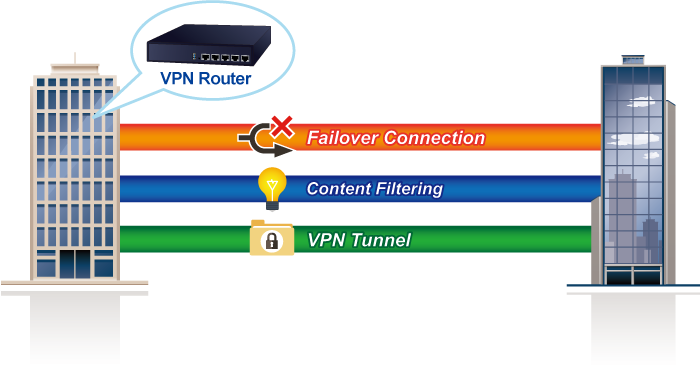

Improving Network Efficiency

The VR-100 has link redundancy, content filtering and many more functions to make the entire network system better. It is applicable to the small-scale sector (from 10 to 50 people), using a 9-inch desktop design, with five Gigabit ports (WAN/LAN). The VR-100’s economical price with complete cable management features make it an inevitable choice for the next-generation office network load balancer.



The VR-100’s built-in content filtering feature can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites  like Facebook, YouTube and Yahoo.

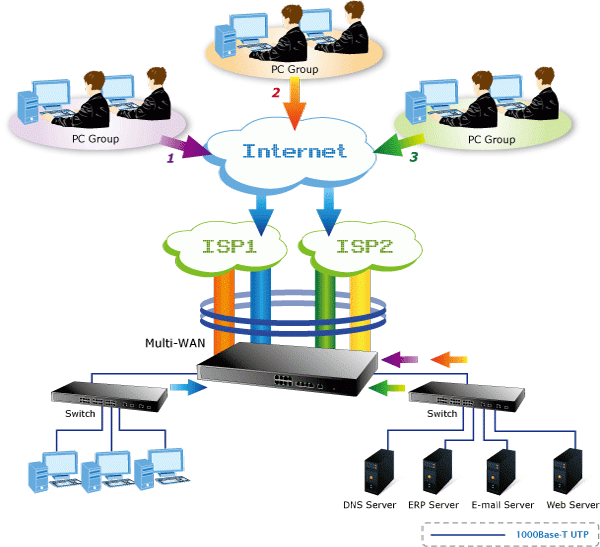

The VR-100 can connect dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.

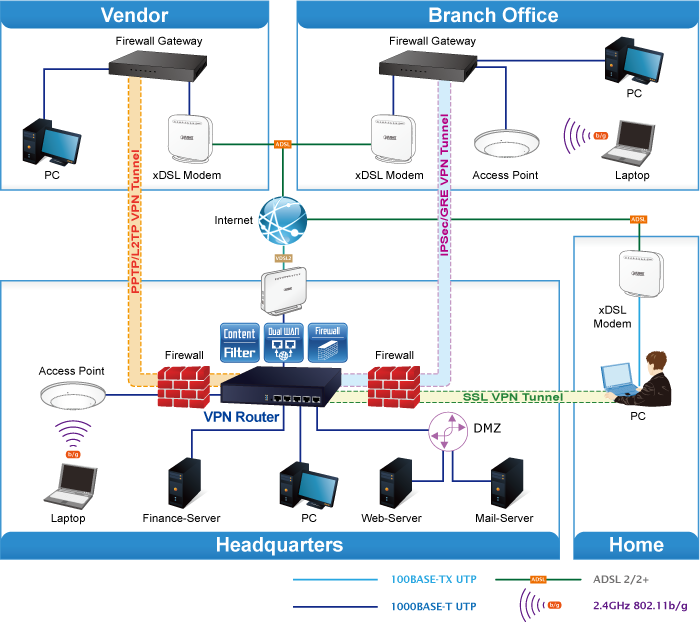

Ideal VPN Security Router

PLANET VR-100 VPN security router has an SPI firewall with DoS detection.  Through the content filtering function, it can easily block the websites like Facebook, YouTube, Gmail, etc. With IPSec/GRE/PPTP/L2TP/SSL VPN solutions, the VR-100 provides secured data communication for branches, vendors, and mobile workers with a flexible way to connect back to the headquarters.



The VR-100 connects dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.

Hardware

  • 5 10/100/1000BASE-T RJ45 ports
  • 1 undefined Ethernet port (LAN/WAN)
  • Dual-WAN function
  • 1 USB 3.0 port for system configuration backup and restore
  • Reset button
  • Desktop installation or rack mounting (optional)
  • Fanless design



IP Routing Feature

  • Static route
  • Dynamic route
  • OSPF



Firewall Security

  • Cybersecurity
  • Stateful packet inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Content filtering
  • MAC filtering and IP filtering
  • NAT ALGs (Application Layer Gateway)
  • Blocks SYN/ICMP flooding



VPN Features

  • IPSec/Remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing
  • Failover for dual-WAN
  • Captive portal
  • RADIUS server/client
  • Static IP/PPPoE/DHCP client for WAN
  • DHCP server/NTP client for LAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • VLAN
  • Multi-Subnet
  • MAC address clone
  • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • Supported access by HTTP or HTTPS
  • Auto reboot
  • PLANET Smart Discovery utility/UNI-NMS supported

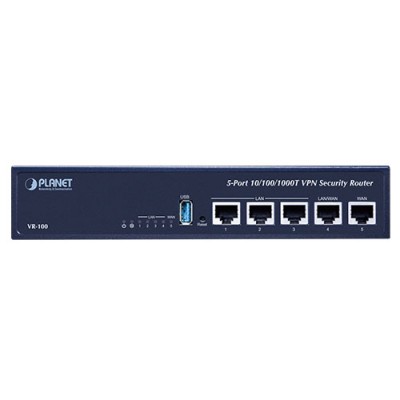

Hardware Specifications
Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports including
  • 3 LAN ports (Port-1 to Port-3)
  • 1 LAN/WAN port (Port-4)
  • 1 WAN port (Port-5)
USB Port1 USB 3.0 port for system configuration backup and restore
Reset ButtonReset to factory default
Thermal FanFanless
LED IndicatorsPWR (Green)
Internet (Green)
LAN/WAN (Green)
InstallationDesktop installation or rack mounting (optional)
Power Requirements100-240V AC, 1A max.
Power Consumption13W max.
Weight0.85kg
Dimensions (W x D x H)215.2 x 135 x 42.6 mm
EnclosureMetal
Security Service
Firewall SecurityCybersecurity
Stateful packet inspection (SPI)
Anti-DoS/DDoS protection
ALG (Application Layer Gateway)SIP, RTSP, FTP, H.323, TFTP
NATPort forwarding
DMZ Host
UPnP
Content FilteringMAC filtering
IP filtering
Web filtering
Bandwidth ManagementOutbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Networking
Operation ModeRouting mode
Routing ProtocolStatic route, dynamic route (RIP), OSPF
VLAN802.1q tag-based, port-based, multi-VLAN
MulticastIGMP proxy
NAT ThroughputMax. 900Mbps
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, , PPPoE, SNMPv1/v2c/v3
Key FeaturesCaptive portal
RADIUS server/client
VPN
VPN FunctionIPSec/Remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN)
VPN ThroughputMax. 60Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
VPN TunnelsMax. 60
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment Specifications
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet ContentsVR-100 x 1
Quick Installation Guide x 1
Power Cord x 1
Feet Pads x 4



Datasheet

DateVersionDescriptionDownload
2019-10-181.0VR-100



Firmware

DateVersionDescriptionDownload
2024-06-171.2102b240522Bug fixed : HW NAT issue.
2022-02-091.2102b220209support SD-WAN
2021-01-221.1907b210118* New functions:
1. Add Captive Portal
2. Add RADIUS server/client
3. Support to change http/https port

* Improvements:
Enhance OpenSSL certificate compatibility
2020-09-11v1.1907b200904Added PLANET CloudViewer app support
2020-04-231.1907b200326* Improvements:
Improve the Wizard to enhance the security level.
* Fixes:
1. Fixed SSL VPN status.
2. Fixed DHCP Domain length limit.
2020-02-141.1907b200207* New:
1. PPTP/L2TP/OpenVPN Client.
2. UPnP function.
3. OSPF function

* Improvements:
Web Filter function supports FQDN to block HTTPs website.
2019-12-251.1907b191213[Improvements:] VPN AES hardware acceleration.
[Fixes] Dual WAN online status on Dashboard page.
2019-10-251.1907b1910251. Add PPPoE, VLAN, QoS, Remote Syslog, IGMP, Trace functions.
2. Enhance Firewall, Upgrade configuration or firmware from USB storage, Event Log, Statistics, DHCP functions.
3. Modify some descriptions.
4. Fix SSL VPN issue.

This firmware is for VR-100 only.
2019-09-061.1806b190904Initial release.



Quick Guide

DateVersionDescriptionDownload
2022-12-201.2Add VR-300FW-NR.
2021-10-141.1Update pictures and modify description
2019-07-021.0Initial Release



User's Manual

DateVersionDescriptionDownload
2019-10-231.0Initial release



EC Declaration

DateVersionDescriptionDownload
2020-04-141.0EC Declaration.
